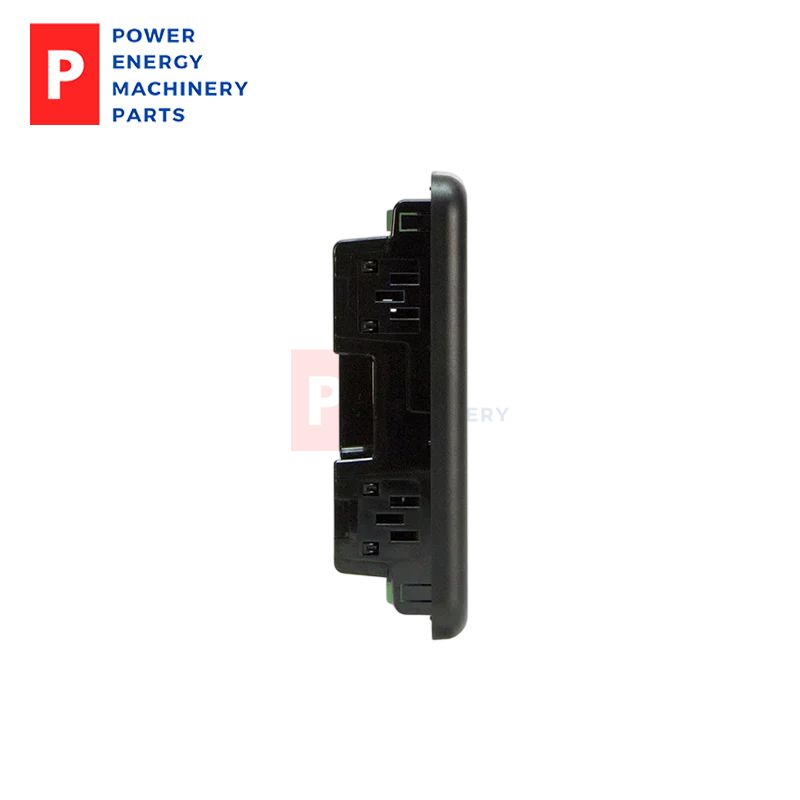

Original Deep Sea DSE7410 MKII Automatic Start Control Module Diesel Controller for Generator

Original Deep Sea DSE7410 MKII Automatic Start Control Module Diesel Controller for Generator

$800.00 USD
$0.00 USD $800.00 USD
ลดราคา ขายหมดแล้ว
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน


Original Deep Sea DSE7410 MKII Automatic Start Control Module Diesel Controller for Generator

Product Overview：

The DSE7410 MKII is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC. The module includes USB, RS232, RS485 and Ethernet ports as well as dedicated DSENet® terminals for system expansion.
The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and engine protections so the system can be easily adapted to meet the most demanding industry requirements. The comprehensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. Dual mutual standby is now available on both the DSE7410 MKII & DSE7420 MKII using RS232 or RS485 communications.

The module also features SNMP functionality for connection to SNMP systems. The module can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
7410-03 - 7410 MKII Auto Start Control Module

Key Features

·Advanced PLC functionality including multi-purpose PIDs

·Flexible inputs and outputs

·DSENet® Expansion Support

·PC configuration using DSE Configuration Suite

·Multiple language support

·Enhanced 4-line text display

·Integrated RS232 and RS485 ports providing Modbus RTU support

·Integrated Ethernet port providing Modbus TCP, SNMP v2c and in built web SCADA support.

·Data logging of up to 20 parameters

·Multi-level pin protected front panel editor

·Manual front panel and automatic control modes

·Latest ECU / ECM support for a wide range of engine manufacturers

·IP65 rating (with supplied gasket) offers increased resistance to water ingress

·Dual mutual standby between two generators for redundancy and balancing of engine hours

·Multiple selectable configurations in one unit to suit changing requirements

·Customisable module power-up & screen saver screens

·3 phase generator sensing with protection

·Manual starting / control by fascia button and automatic starting / control by inputs and other functions
