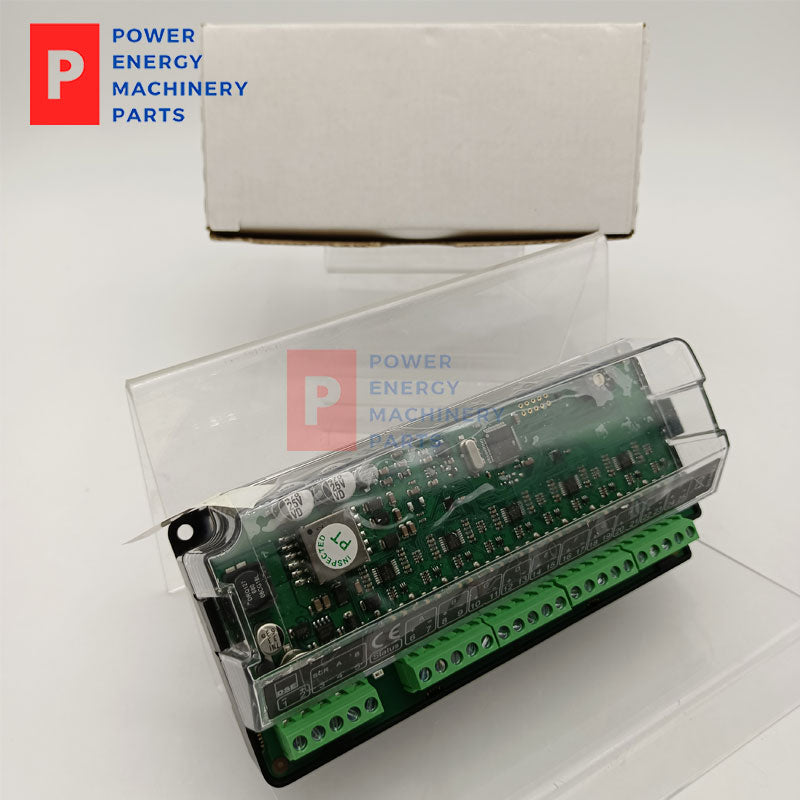

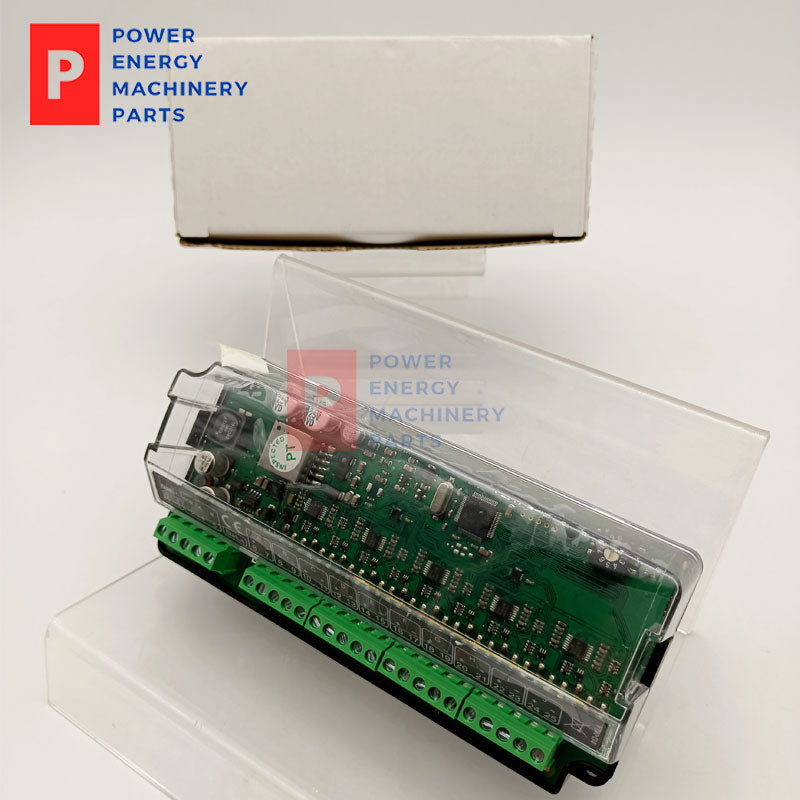

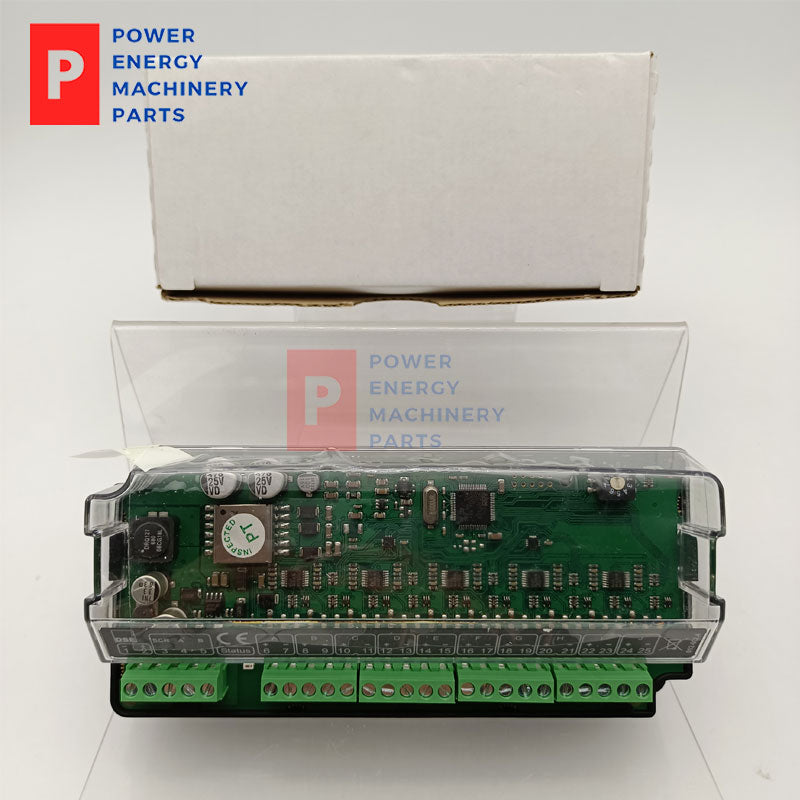

Original Deep Sea DSE2131 Expansion Input (10) Module for Genset Generator Alternator Controller
Original Deep Sea DSE2131 Expansion Input (10) Module for Genset Generator Alternator Controller
ราคาปกติ
$440.00 USD
ราคาปกติ
$0.00 USD
ราคาโปรโมชัน
$440.00 USD
ราคาต่อหน่วย
ต่อ
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้

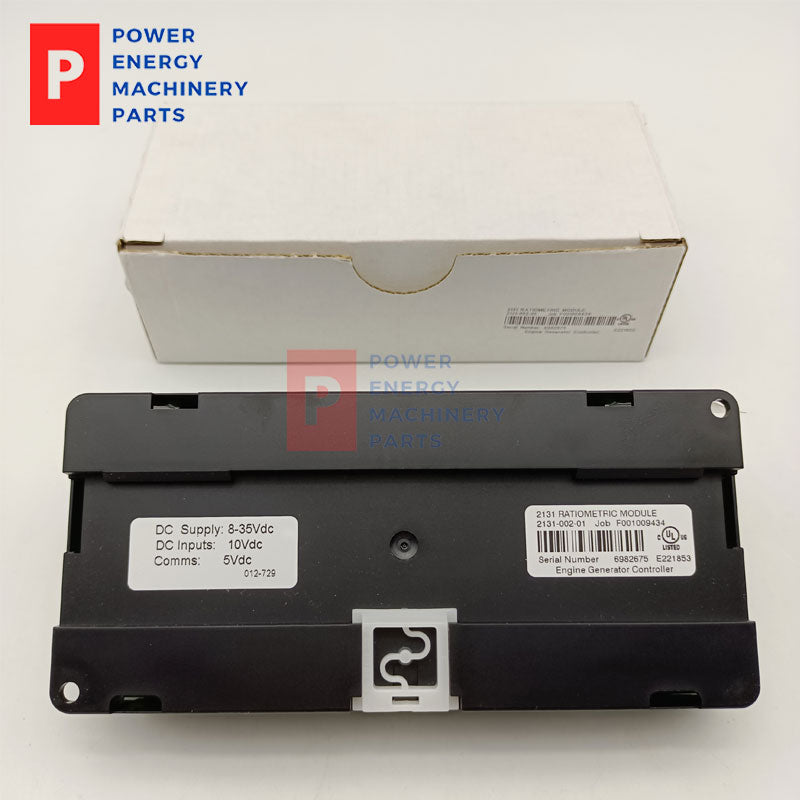

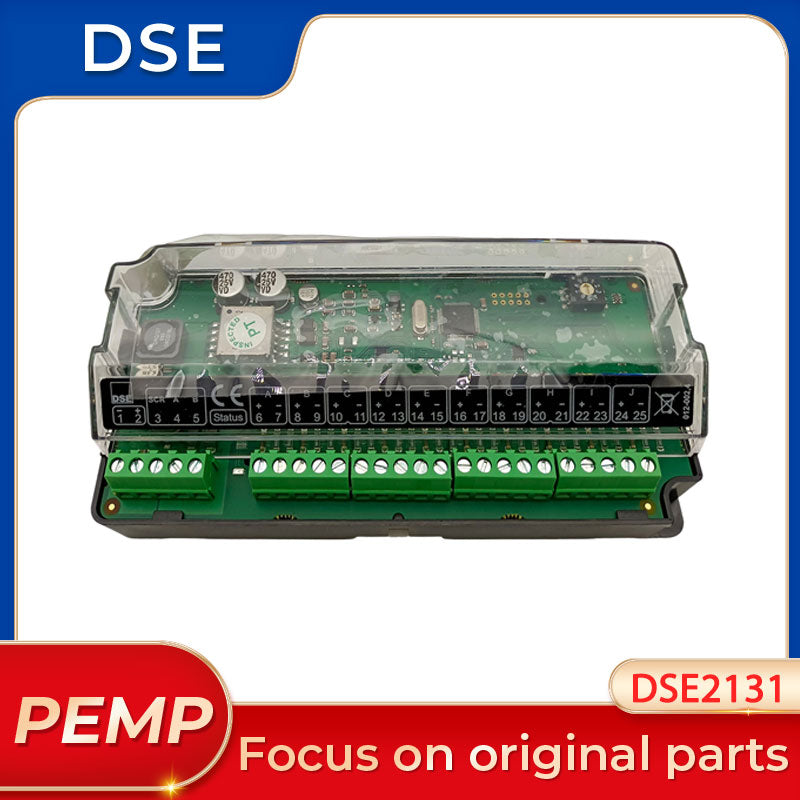

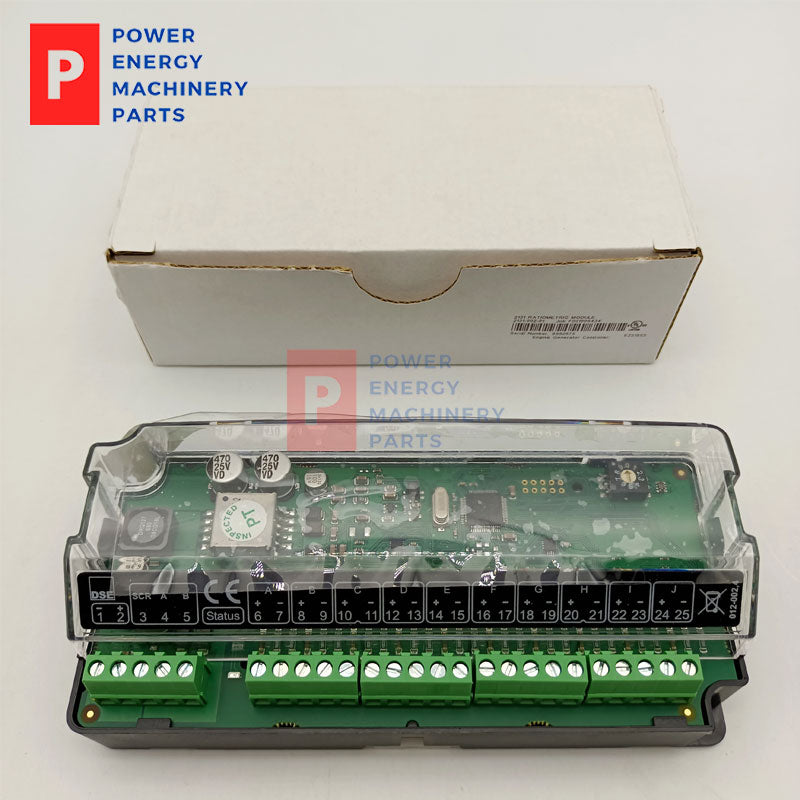

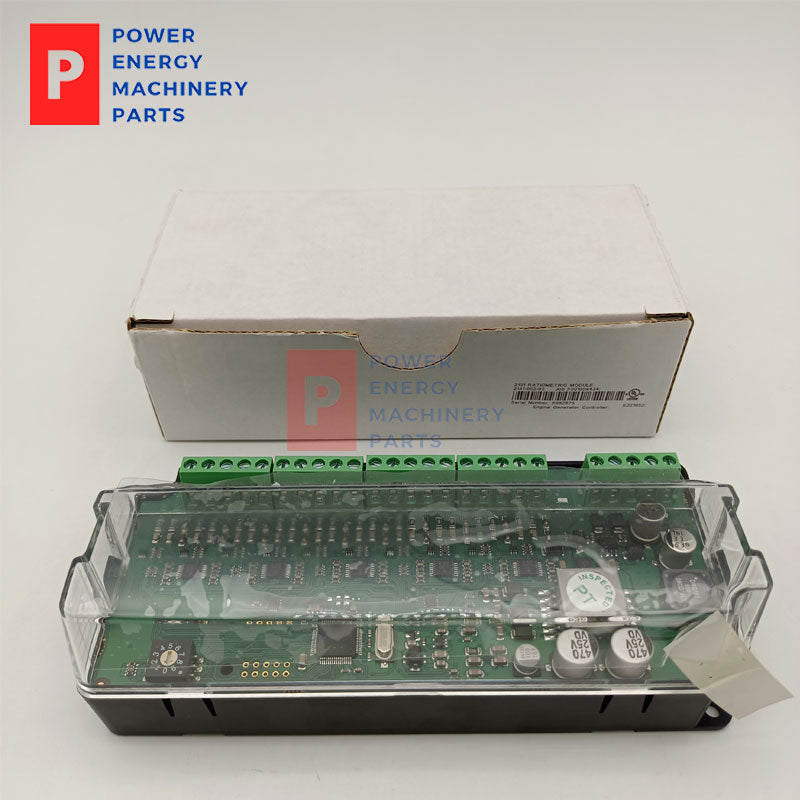

Genuine Deep Sea DSE2131 DSENet Ratiometric Input Expansion Module 10-Channel Analogue & Digital Input 2131-01
Overview
The DSE2131 is a ratiometric input expansion module providing 10 additional inputs to the control module. Up to 4 x DSE2131 modules can be linked together to provide up to 40 additional inputs.
Designed to give greater input flexibility for meeting complex industry generator control specifications.
Inputs can be configured to connect to resistive sensors, 0-10 V DC signals or 4-20mA signals, analogue inputs. All configurations are controlled from within the host control module.

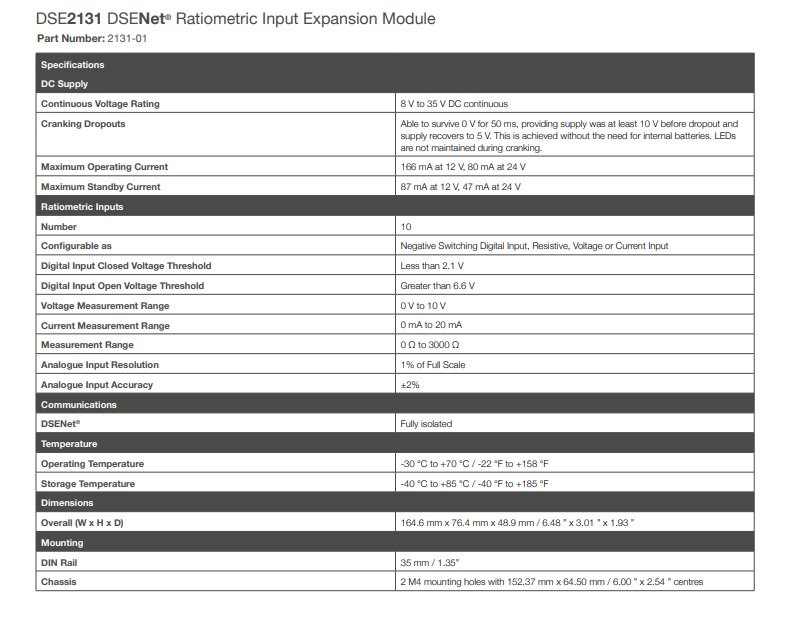

Specification
- Model: DSE2131 (2131-01)
- Brand: Deep Sea Electronics (DSE), Series: DSEEXTRA
- Type: DSENet Ratiometric / Analogue Input Expansion Module
- Signal Type: Resistive sensor, 0-10V DC, 4-20mA
- Communication: DSENet®
- Power Supply: 8V – 35V DC
- Dimension: 165 mm × 76 mm × 49 mm(6.5” x 3.0” x 1.9”)
- Weight: 0.22 kg
- Compatible Controllers: DSENet enabled DSE6110, DSE6120, DSE7310, DSE7320, DSE8610 MKII, DSE8620 MKII etc.
- Application: Genset multi-sensor monitoring, pump/compressor analogue signal collection, OEM generator control cabinet, marine engine monitoring
- Warranty: 12 months genuine factory warranty
PRODUCT VARIANTS
2131-01 - 2131 Ratiometric Input Expansion Module
