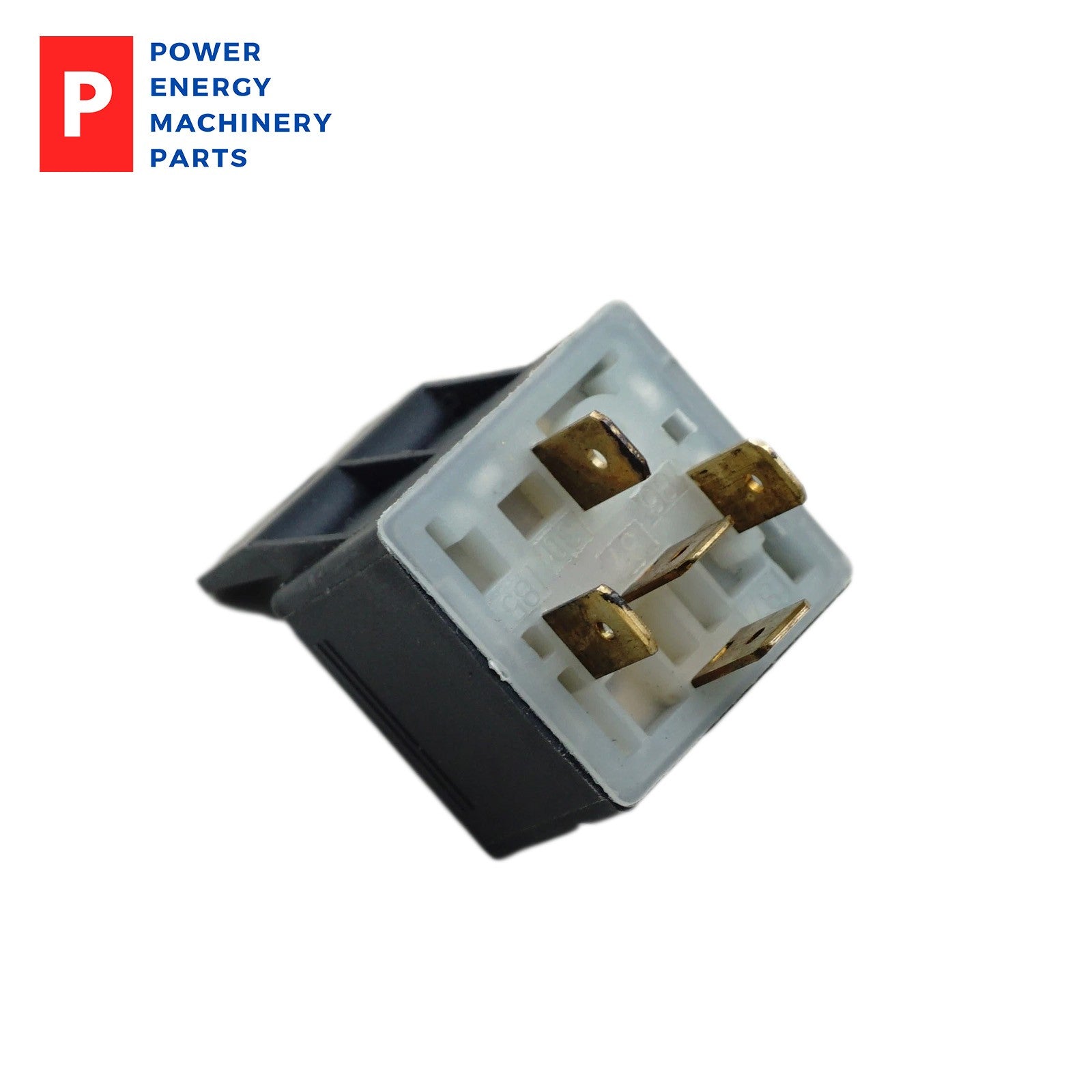

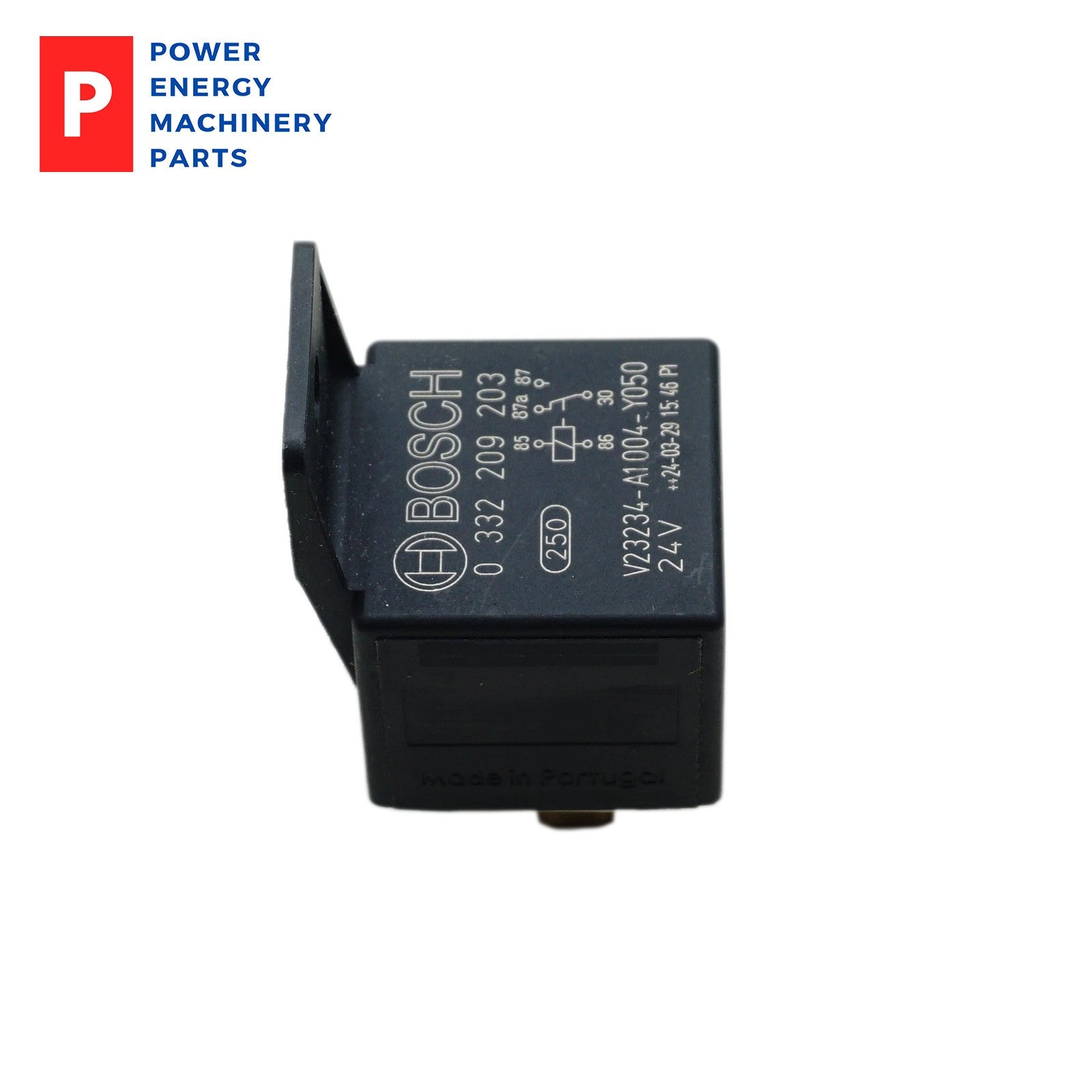

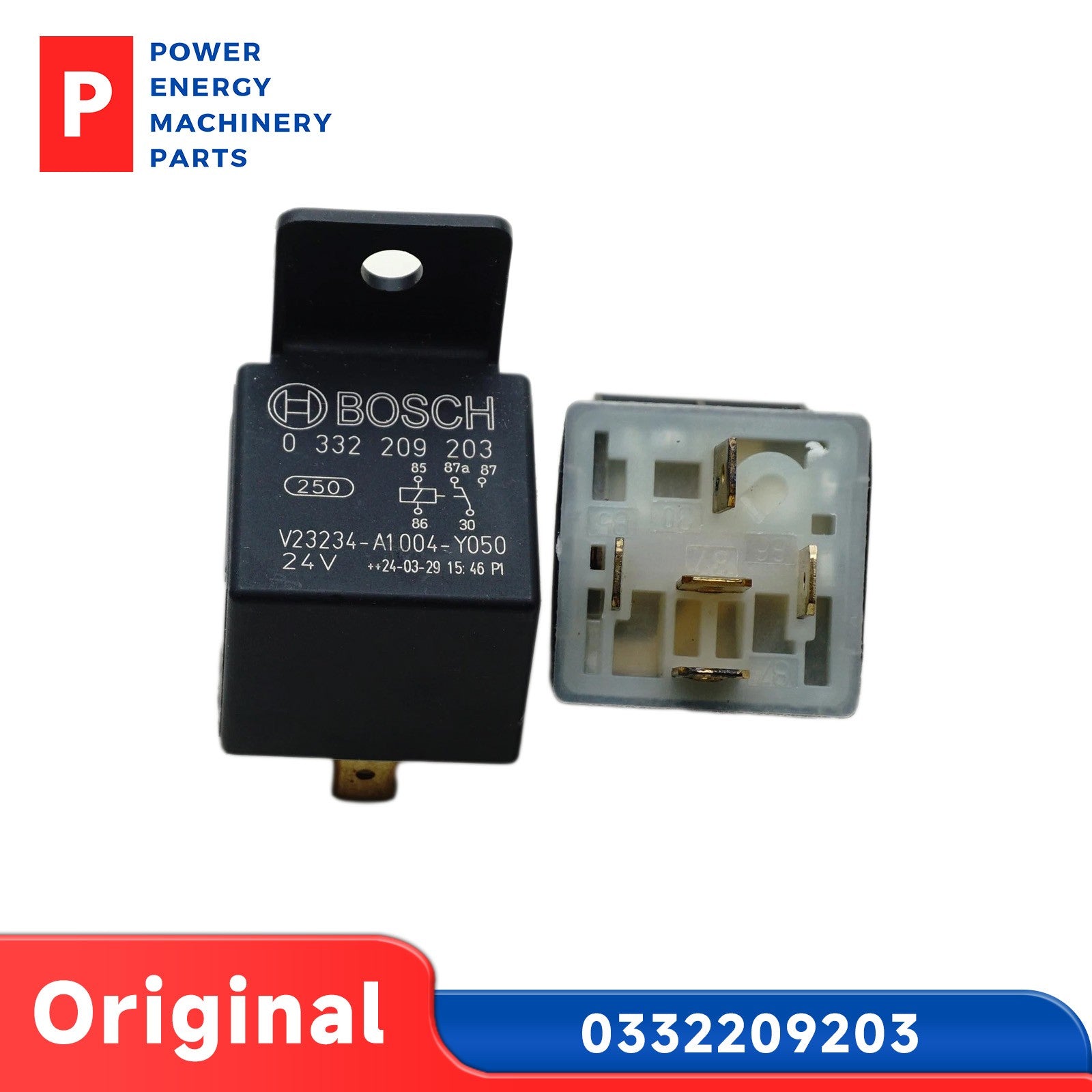

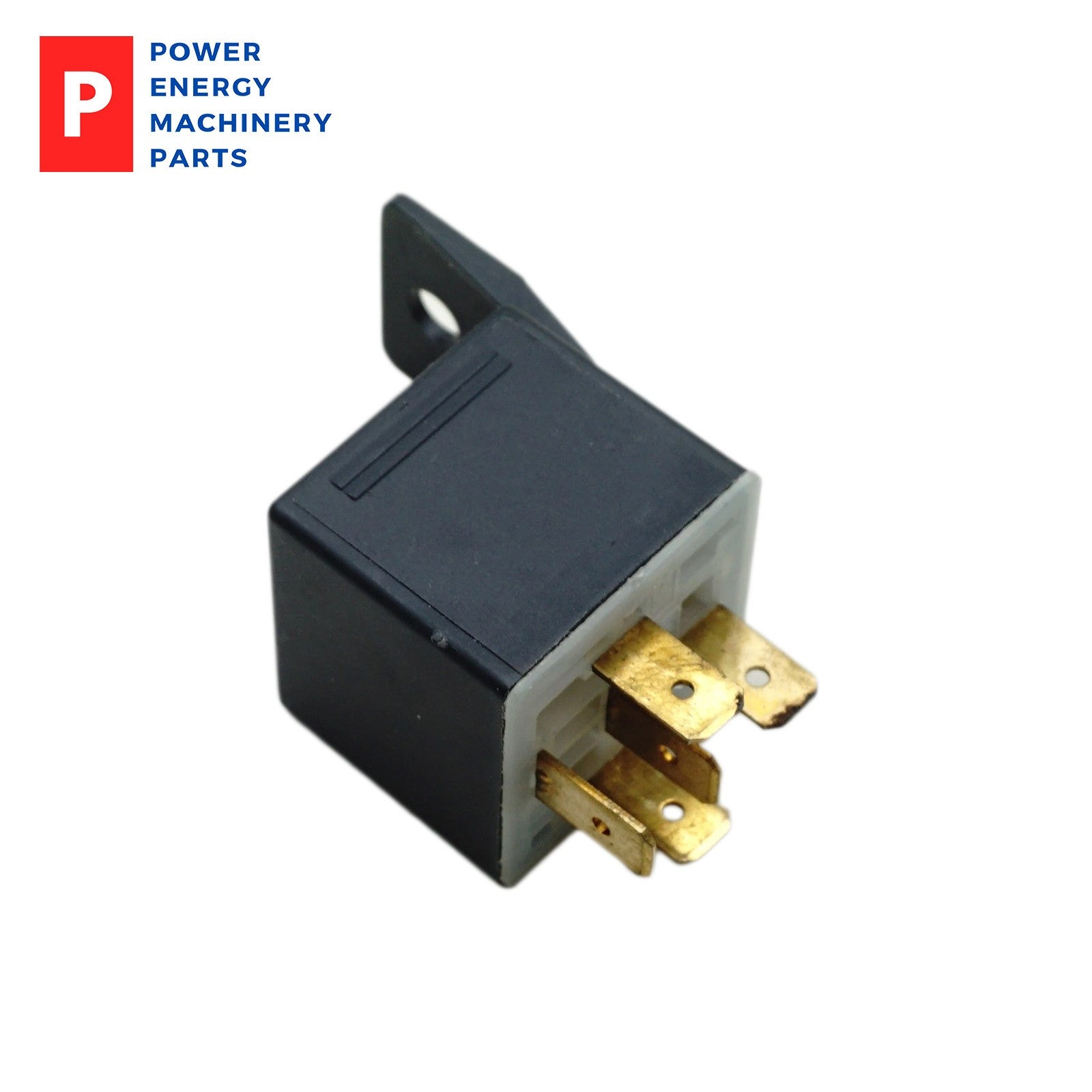

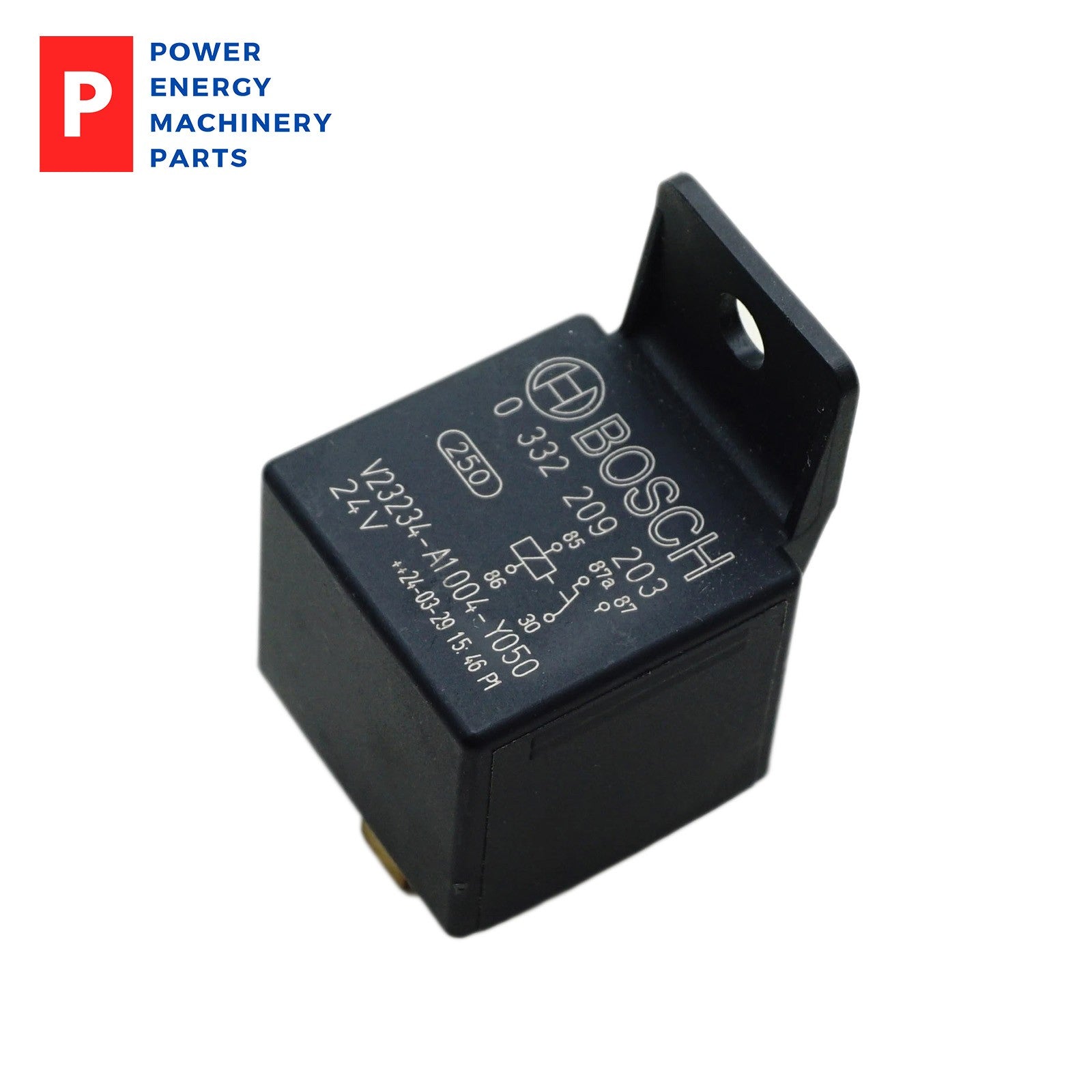

Original Bosch 0332209203 V23234-A1004-X050 24VDC 40A Relay 1Pcs

Overview

This is the  0332209203 24VDC 40A Electromagnetic Relay, a general-purpose miniaturized high-current switching component. It operates by using an energized coil to generate a magnetic field that closes the contacts, allowing a low-power signal to control a high-power load circuit.

Specifications

Model: 0332209203
Coil Voltage: 24V DC
Contact Rating: 40A (Max Switching Current)
Contact Form: SPST-NO (Single Pole Single Throw, Normally Open)
Insulation Resistance: ≥100 MΩ (500V DC)
Dielectric Strength: Between coil and contacts ≥4kV
Electrical Life: ≥10^5 operations (Resistive Load)
Housing Material: Engineering Plastic (PA66)
Package Contents: 1 x Relay
