Original SmartGen HGM410N Self-Starting Generator Set Controller LCD Display Remote Signal Control Panel

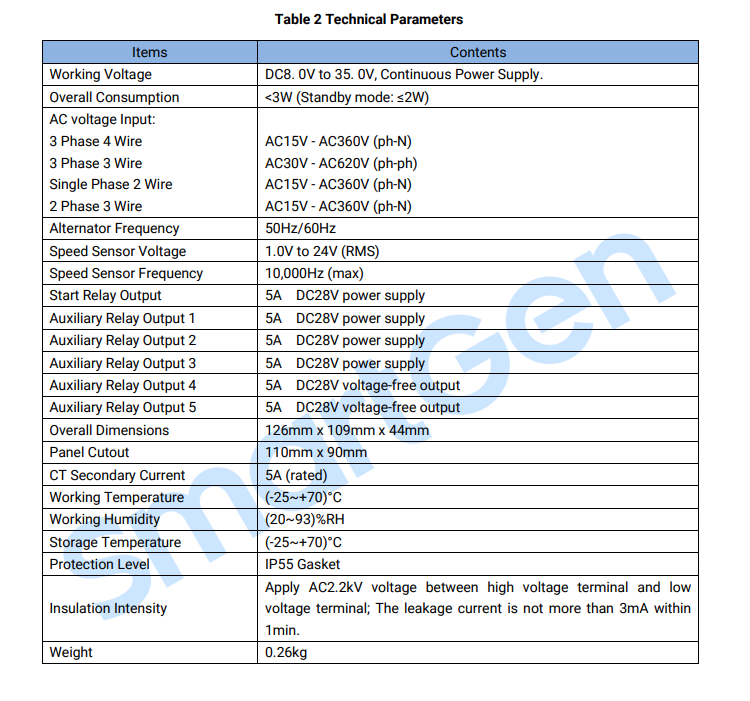

Specification

• Part Number: HGM410N
• Brand: SmartGen
• Type: Single-set auto start/stop & monitoring (no AMF; AMF = HGM420N)
• Display: 132 × 64 LCD with backlight, 6 languages, hard acrylic screen, silicone keys
• Measured: Gen line/phase voltage, frequency, phase sequence, 3-phase current, kW (split/total), kvar, kVA
• AC Systems: 3P4W / 3P3W / 1P2W / 2P3W, 120/240 V, 50/60 Hz
• AC Ranges: 3P4W/1P2W/2P3W AC 15–360 V (ph–N); 3P3W AC 30–620 V (ph–ph)
• Supply: DC 8–35 V continuous
• Speed Input: Magnetic pickup 1–24 V RMS, up to 10 kHz
• CT Secondary: 5 A rated
• Relay Outputs: Fuel, Crank, 3 × Aux 5 A DC28V + Charge output
• Panel Cutout: 110 × 90 mm
• Dimensions: 126 × 109 × 44 mm
• Front Rating: IP55 (with gasket)
• Working Temp: ‑25 °C to +70 °C
• Condition: 100% Original SmartGen brand new
• Net Weight : 0.26kg
• Warranty: 12 months genuine factory warranty
