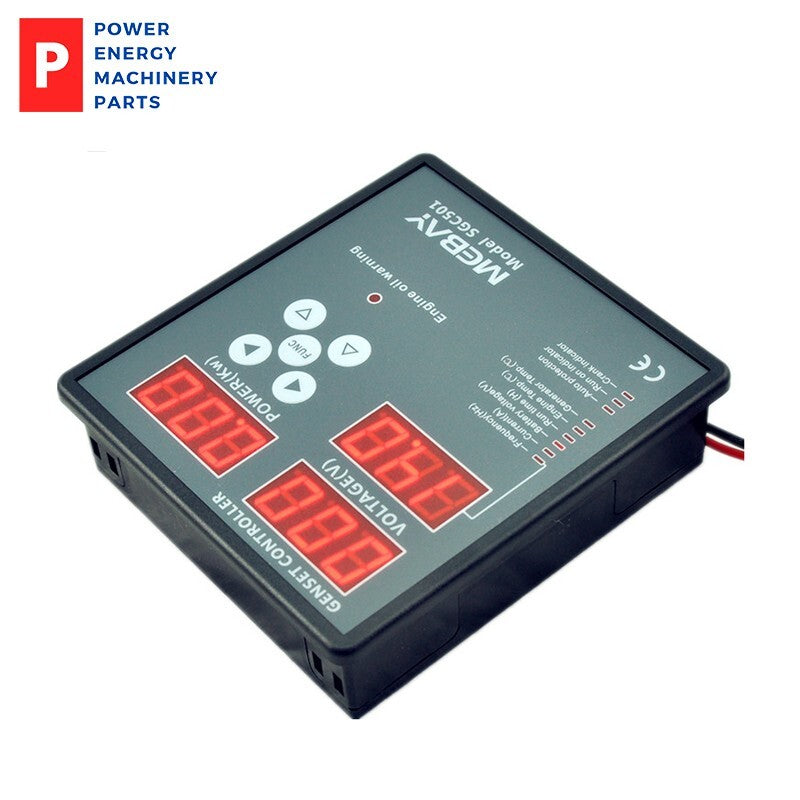

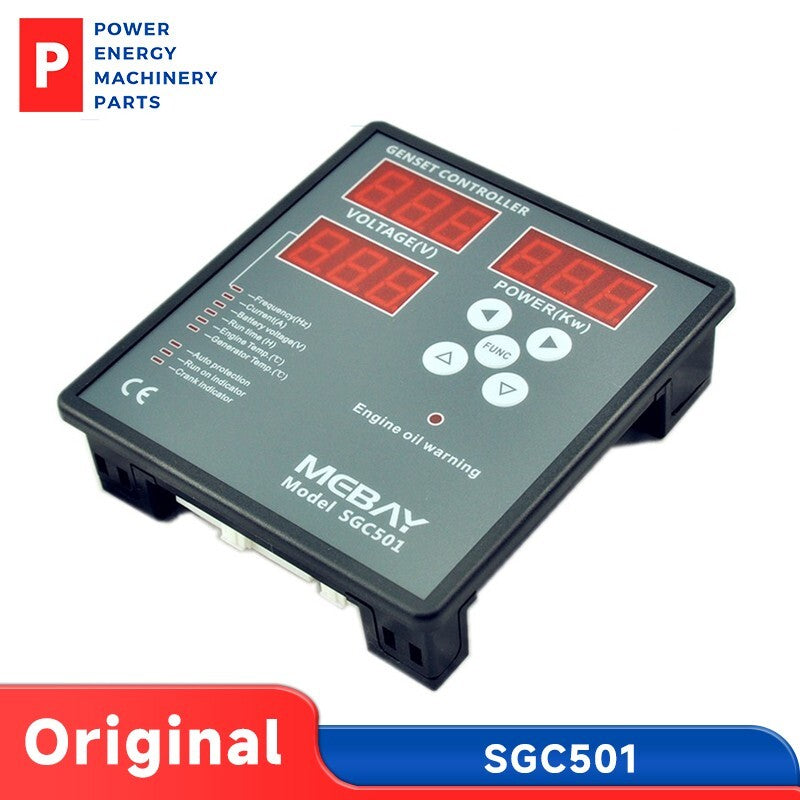

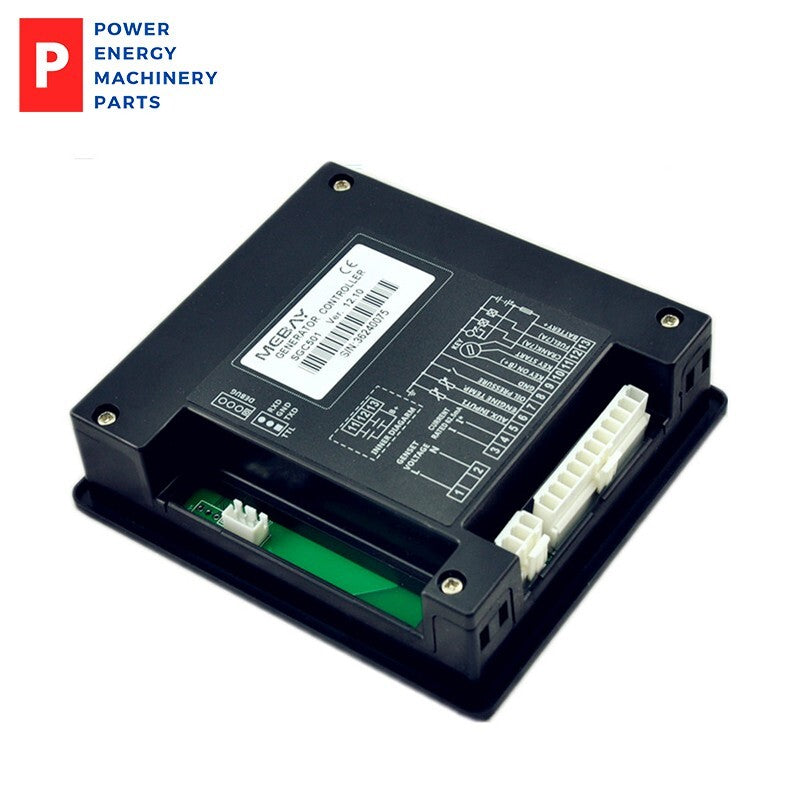

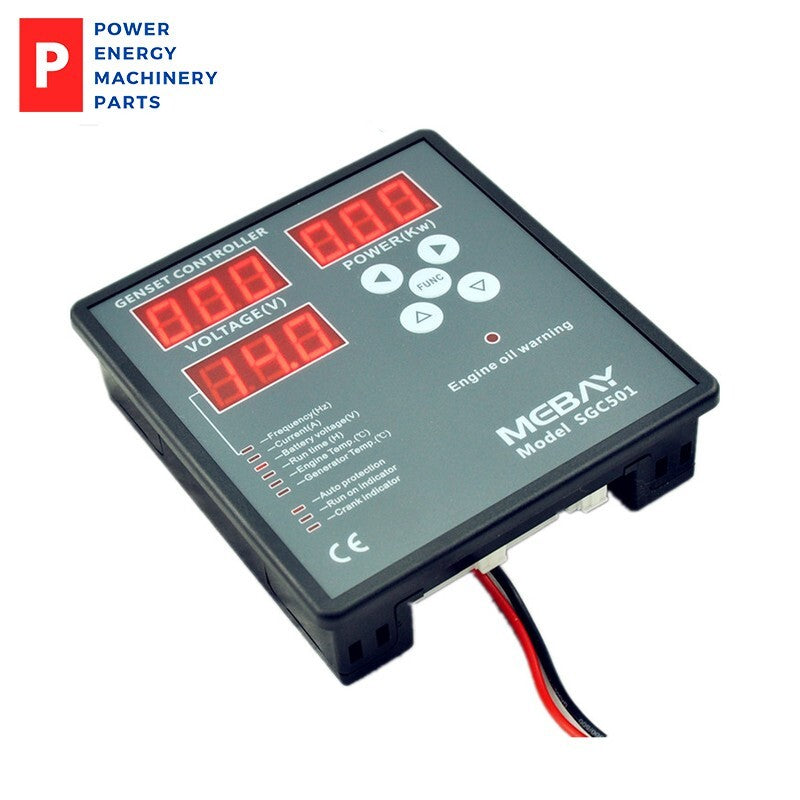

Original SGC501 Diesel Genset Automatic Detection and Protection Control Panel

Original SGC501 Diesel Genset Automatic Detection and Protection Control PanelMulti functional meter


Summary

This Controller Series is specialized for small diesel, gasoline, gas generator sets’start, stop,monitor and defaults checking as well as parameters setting.

This controller adapt 3 screen and 3 digits big LED display screen, which can display generator voltage, power, frequency and so on. All the parameters can be set according to front face buttons or computer.



Main Features

u32 units original imported CPU is used.

u3 screen and 3 digits big LED display screen (0.56Inch) is used. The page can be changed by buttons.

uPC front face panel, which is water-proof, oil-proof, UV proof so that the durability is longer.

uTTL communication port, through which the parameters can be set or monitor by PC.

uVoltage, power, Hz, Amp, Battery voltage, accumulation time, engine temperature, generator temperature etc can be checked and displayed.

uUnder voltage, over voltage, under frequency, over frequency, overload, high temperature protection.

uThe simulation value input of  temperature sensor is programmable, various curves of temperature sensors are optional.

uAll the parameters can be set through front panel buttons.

uModule designed: all the connection ports are European style which is easy to install, connect, maintain.



Parameters Display

uGenerator phase voltage L-N

uGenerator active power KW

uGenerator frequency Hz

uGenerator phase current A

uEngine battery voltage

uTotal running time

uEngine temperature

uGenerator temperature



Protection

uOver voltage

uunder voltage

uOver frequency

uUnder frequency

uOver power

uHigh engine temperature

uHigh generator temperature



Parameters
