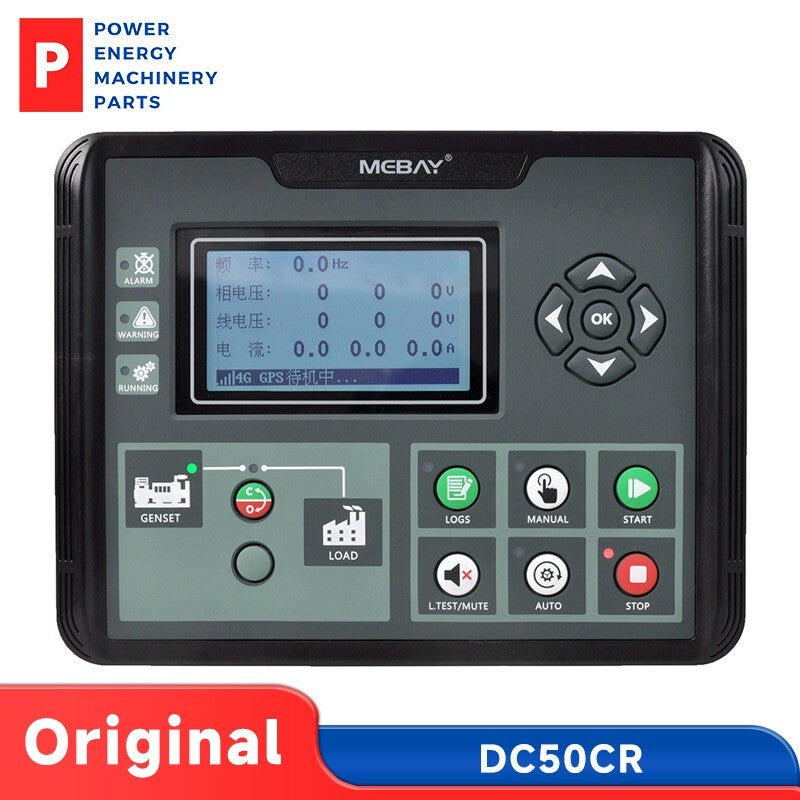

Original Mebay Remote EFI Engine Generator Controller DC50CR Genset Spare Parts
Original Mebay Remote EFI Engine Generator Controller DC50CR Genset Spare Parts
Couldn't load pickup availability
Summary:
DC50CR is adopted RS485 Port and standard CAN communication port, built-in J1939 protocol and can be used to remote Start or Stop Diesel / Gasoline / Gas Genset, monitor Parameters, check faults as well as set data.
All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
Features:
There are four Models under DC5xD series.
DC50C: used for single machine automation. Start/Stop through remote start signal.
DC52C: Based on DC50C, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
DC50CR MK3: Based on DC50C, it adds RS485 port.
DC52CR MK3: Based on DC52C, it adds RS485 port.
Main Features:

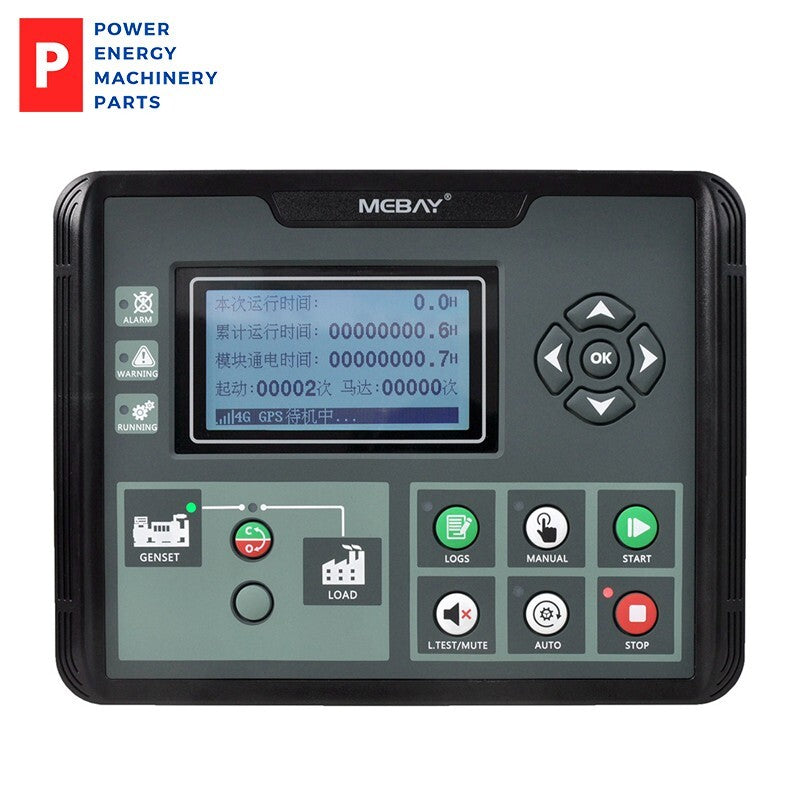

1. 3.5 inch 240 * 128 high-resolution LCD screen, Available in 6 languages, user’s language set if necessary.
2. Input/output function, status can be shown directly.
3. With Real Time Clock, Event Record, Maintenance Countdown, Battery charging control Function.
4. Totally 6 relay’s output, among which 4 relay output can be self-configurable, each relay can be set as max 30 functions, besides, there are 3 groups as non-contact terminals.
5. With 5 switches input, up to 20 functions optional;
6. 3 sensor simulation input connectors
