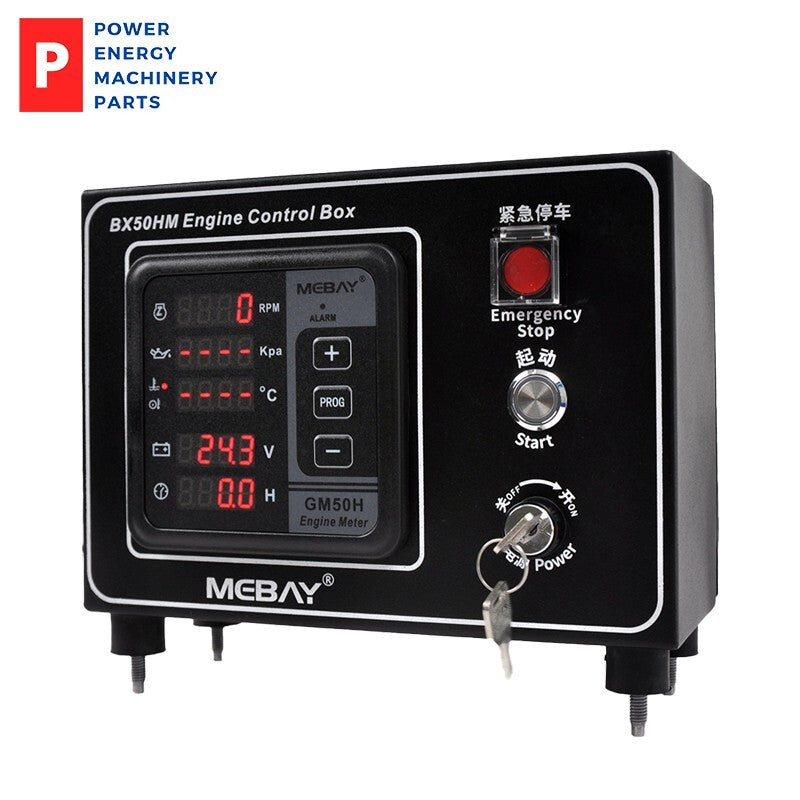

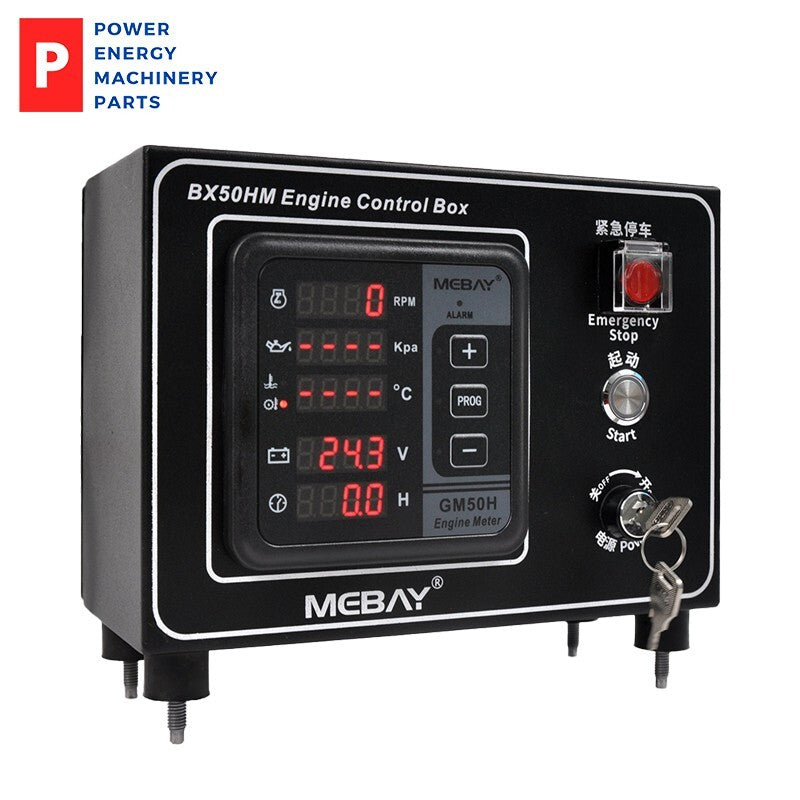

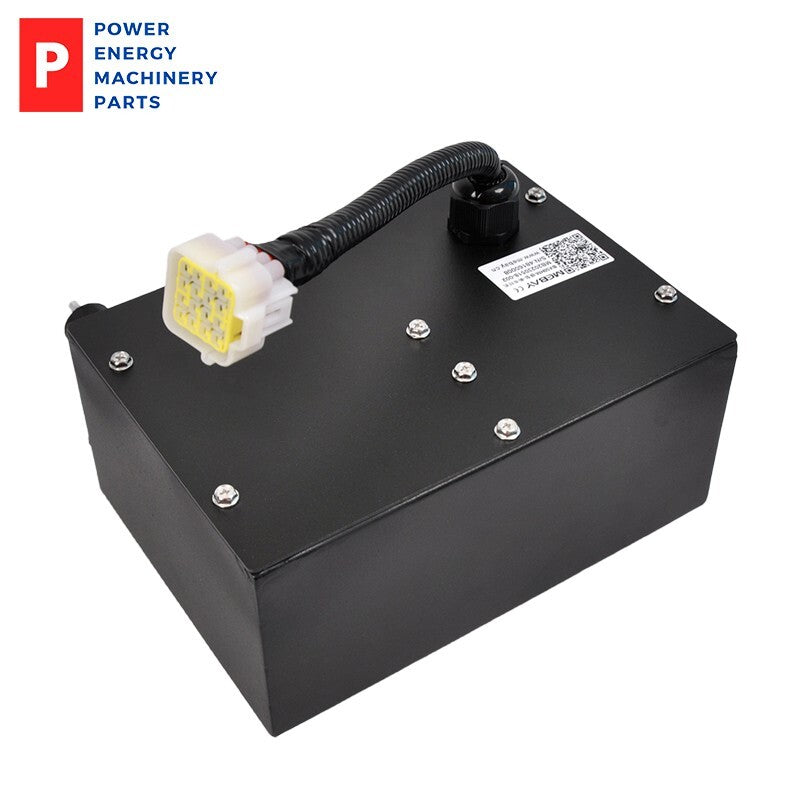

Original MEBAY BX50HM Diesel Boat Engine Controller Marine Controller Monitor

Summary

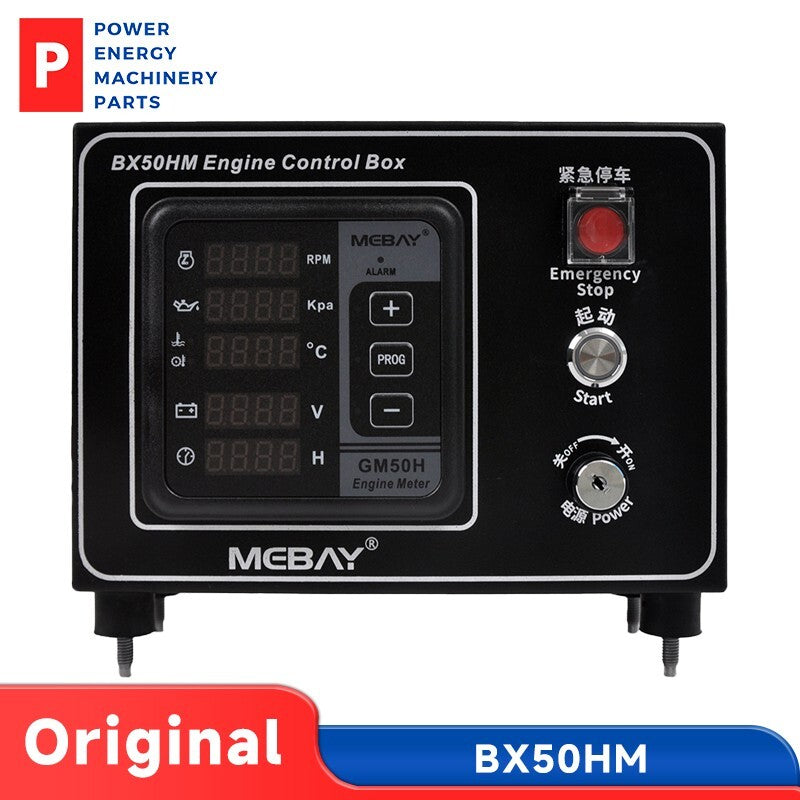

BX50HM is a complete control box equipped with the GM50H diesel engine multifunctional instrument developed independently by our company. This control box has excellent protective performance. The control box adopts electroplating and spraying technology, and the operation buttons have passed CCS certification, which can be used in harsh working environments.

Features

u5 Screen LED Digital Display

uFrequency is changeable for RPM

uSelf-defined Curve of Sensor

uSystem data reset by front face buttons

uThe protection value to be set by users

Display

uRPM

uOil pressure

uCoolant Water Temperature

uOil Temperature

uHours

uBattery voltage

Protection

uOver speed protection

uLow Oil pressure

uHigh Temperature

uHigh Oil Temperature

uLow Battery voltage

uEmergency Stop

Specification

uPower :DC 8～36 V

uConsumption Power: MAX：1 W

uInput Resistance :0～1000ohm

uRPM Input frequency range: Freq 300Hz～15kHz

uRPM input amplitude range:AC 3～65V

uInput Frequency:Freq 45～70Hz

uInput Voltage: AC40～280V

uAlarm Output:MAX DC1A

uWorking Temperature: -20～65℃

uStorage Temperature:-40～85℃

uIngress Protection:IP54 (the front face)

uSIZE(W * H * D)：Erect installation:150mm * 210mm * 90mm,Horizontal installatio:210mm * 180mm * 90mm

uWeight: 1.6Kg
