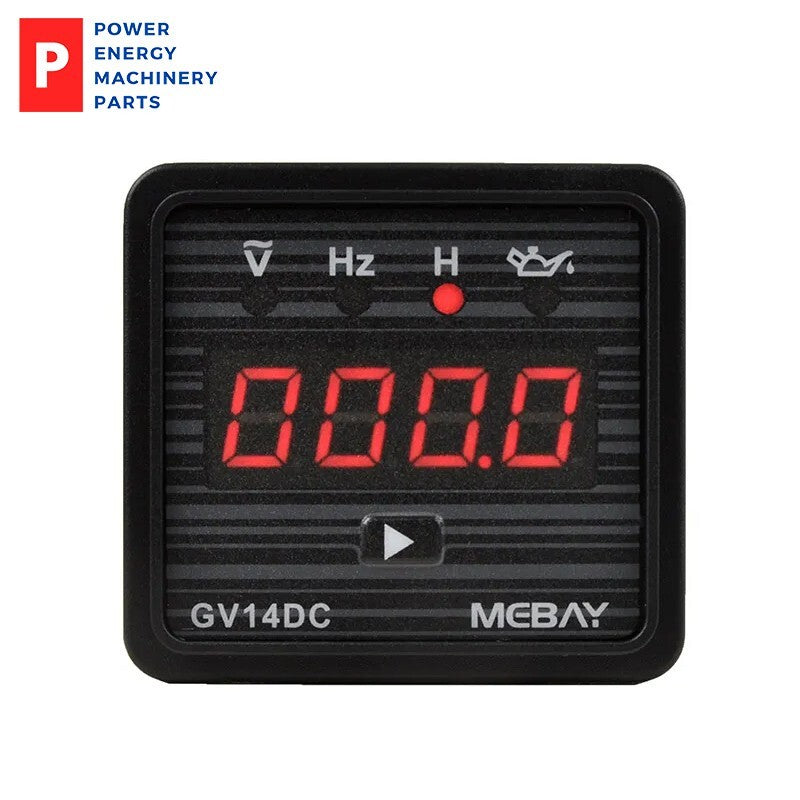

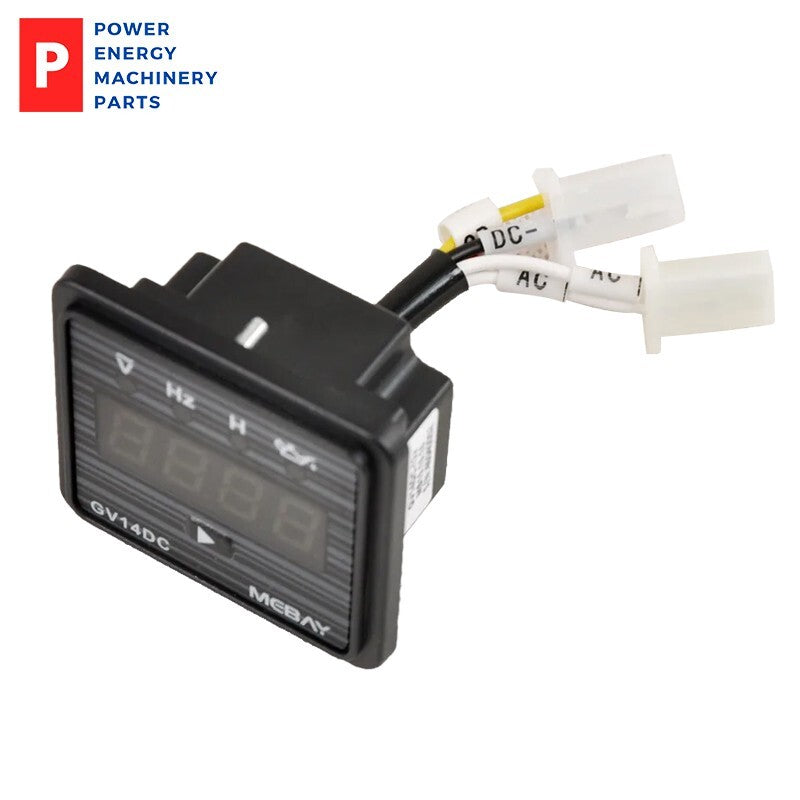

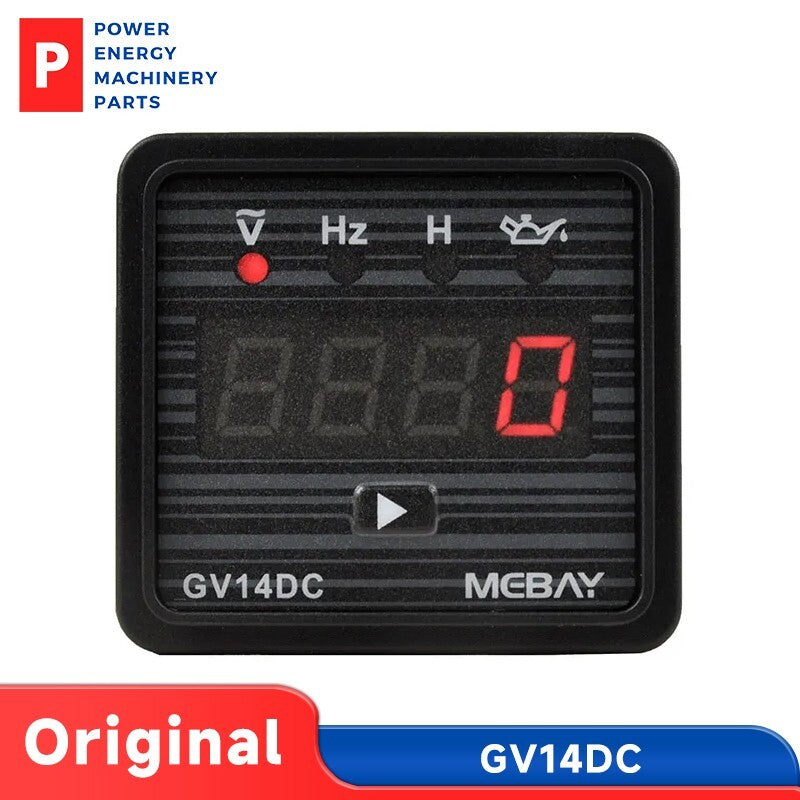

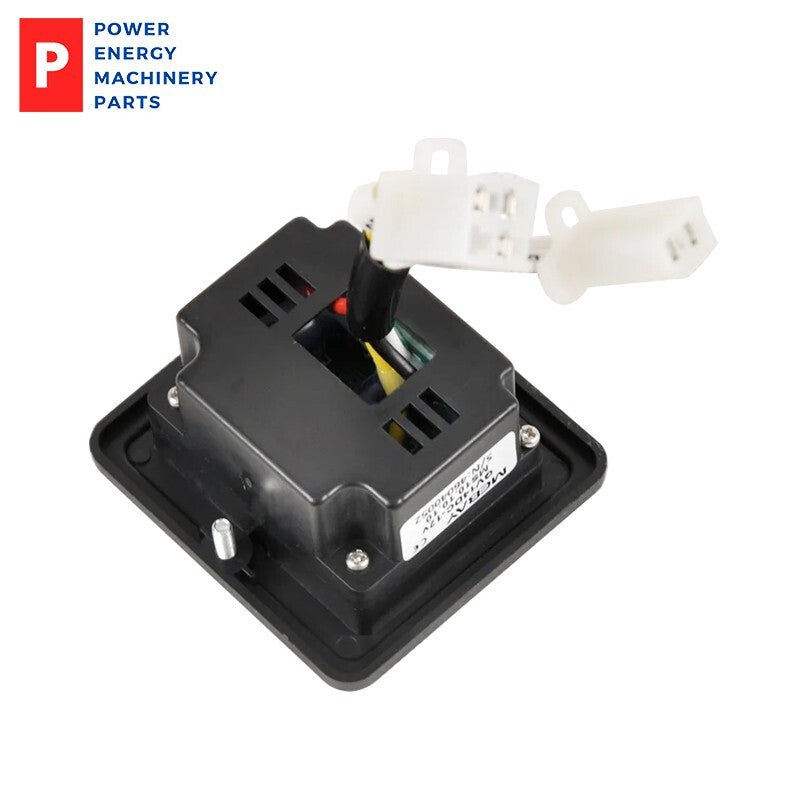

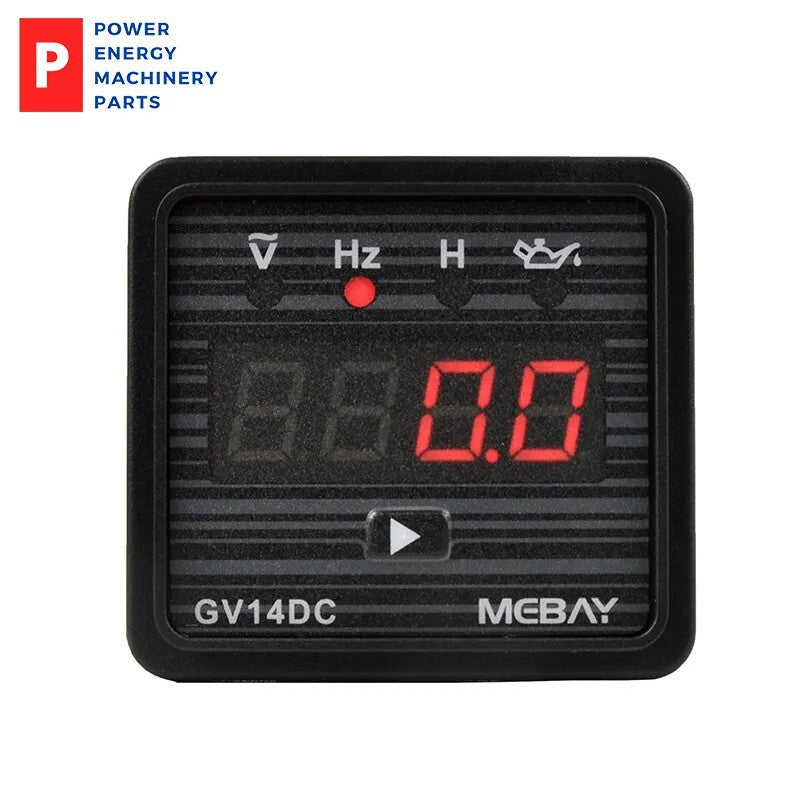

Original Mebay Auto Panel Meter GV14DC DC Digital Generator Voltage Meter PEMP

Original Mebay Auto Panel Meter GV14DC DC Digital Generator Voltage Meter PEMP

$24.80 USD
$0.00 USD $24.80 USD
Sale Sold out
Shipping calculated at checkout.


Original Mebay Auto Panel Meter GV14DC DC Digital Generator Voltage Meter PEMP


AC voltage, frequency, accumulated working time, low oil pressure alarm indicator, 4 meters in 1, working time is permanently saved and displayed. With screen change button. Working voltage DC8V-36V.

*Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
*Results shown by 4-position digital LED tube
*Self-recycling of parameters
*with Page Turning Buttons
*DC voltage supply



Parameter Demonstration

*Phase voltage
*Frequency
*Cumulative running time
*Low oil pressure alarm switch indication

Measuring range and accuracy
*Voltage: ac30-450v, error ≤± 1%
*Frequency: 20-70hz, error ≤± 0.5%
*Cumulative operation time:
0-9999h
Specification of GV14DC
Power supply
DC8~36V
Consuming Power
MAX: 1w
Working condition
-30~70ºC
Overall dimension
58mm×54mm×41mm
Panel cutout
47mm×37mm
Weight
55g
