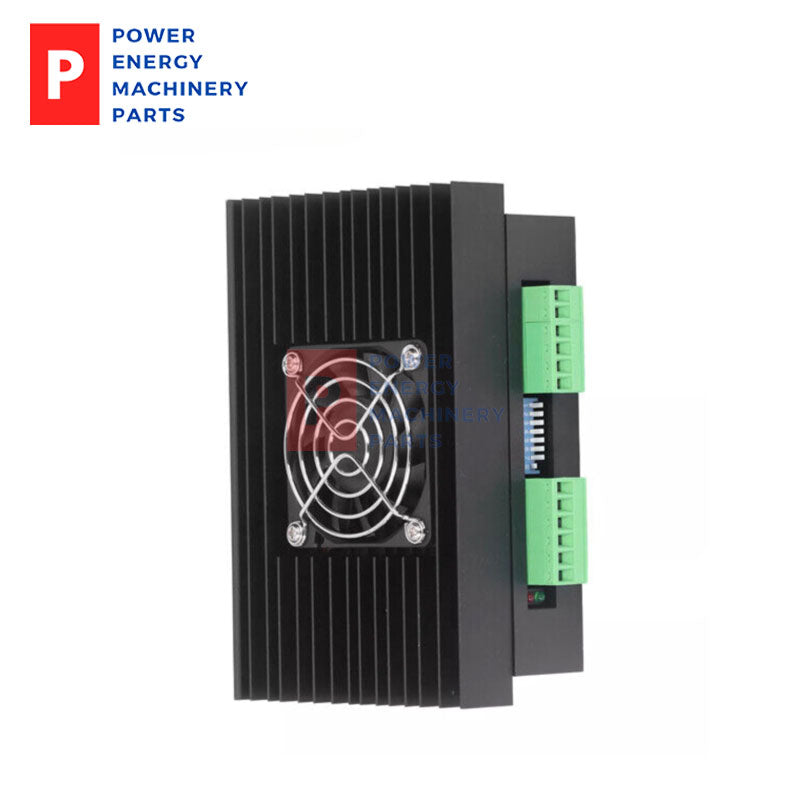

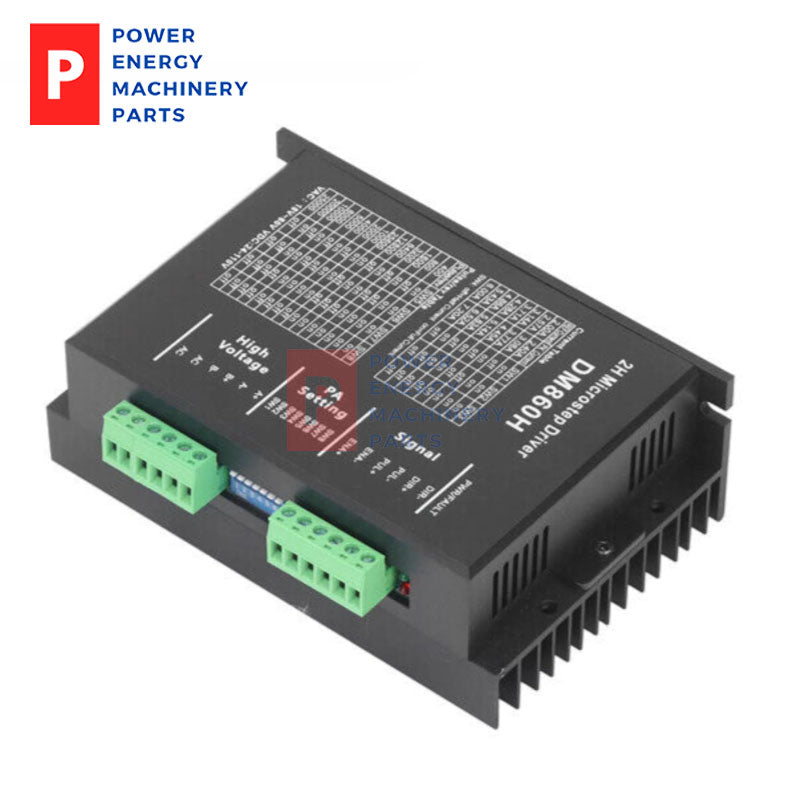

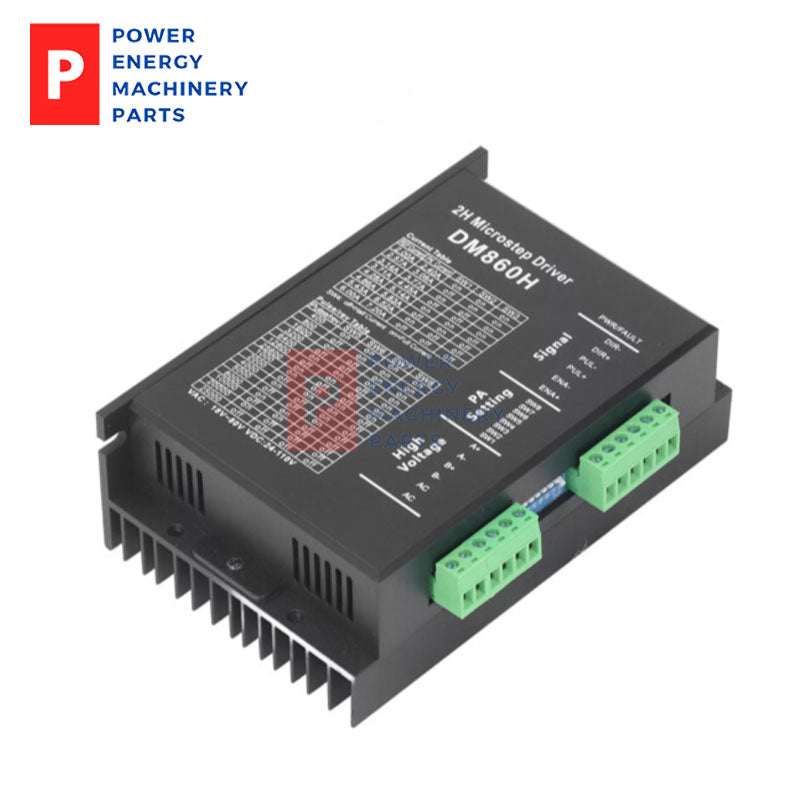

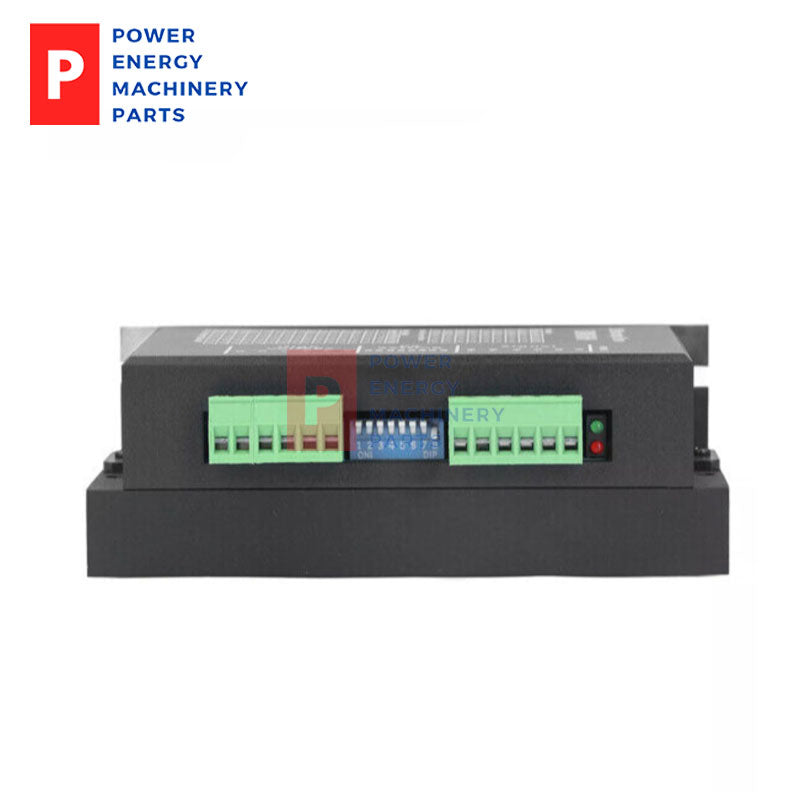

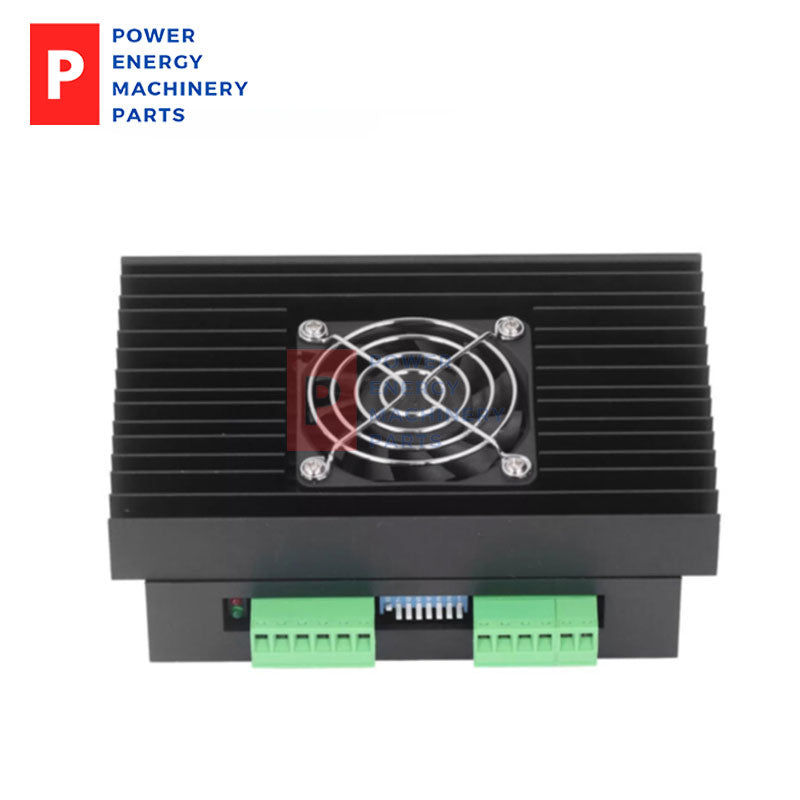

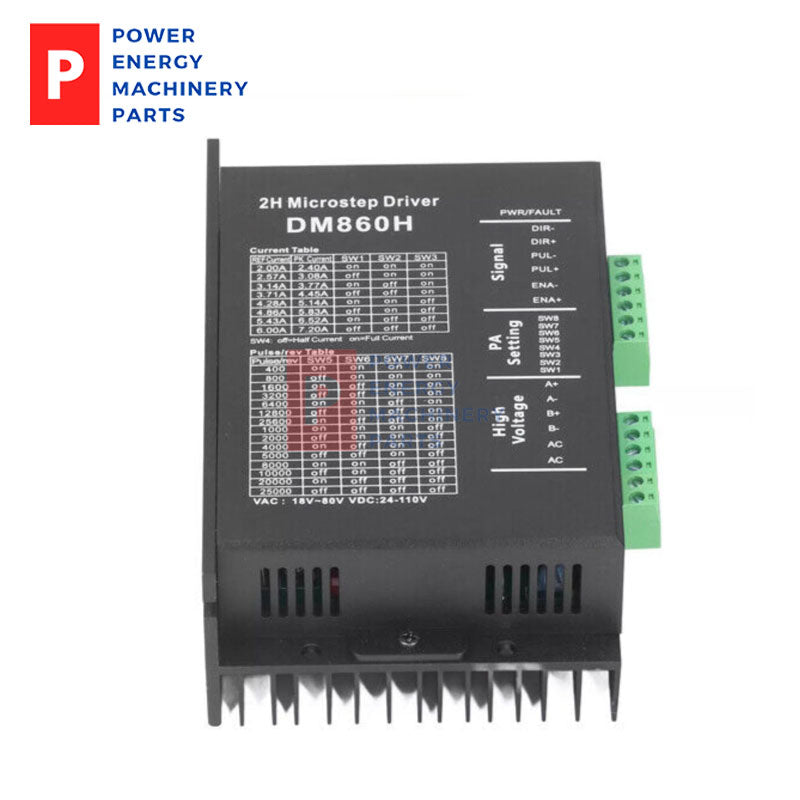

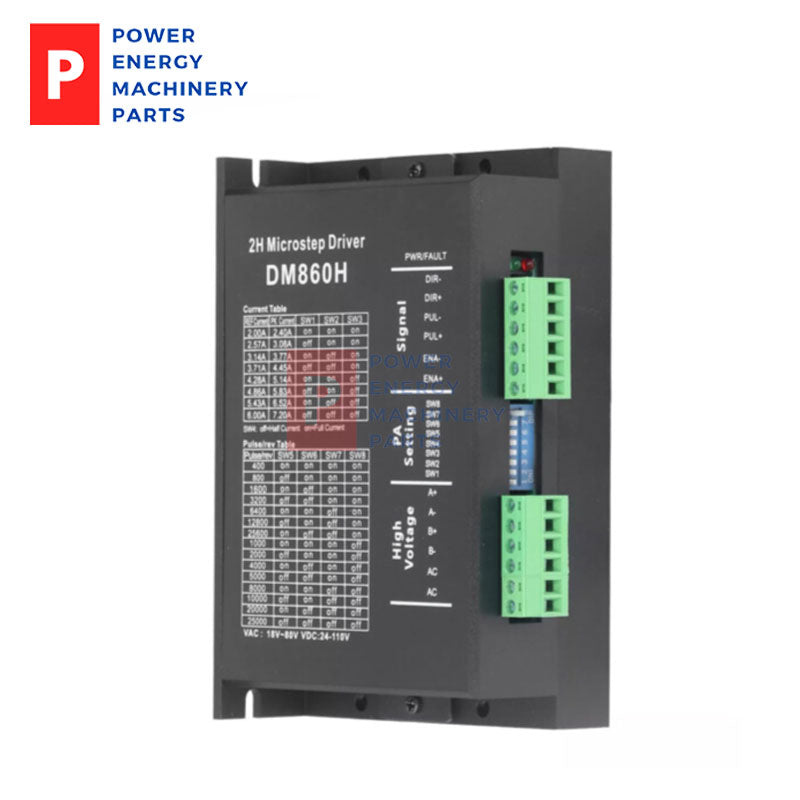

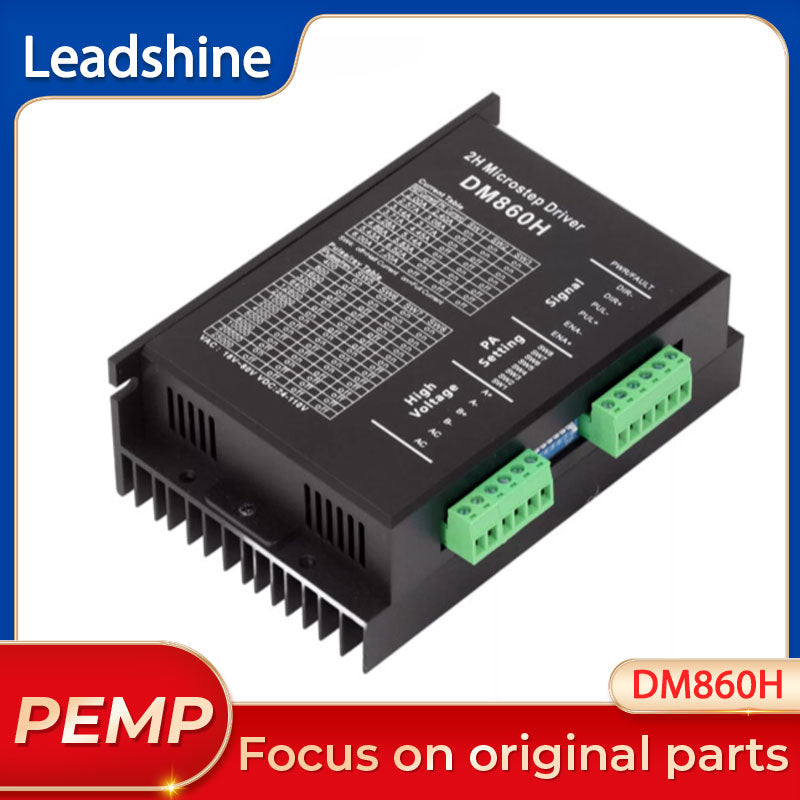

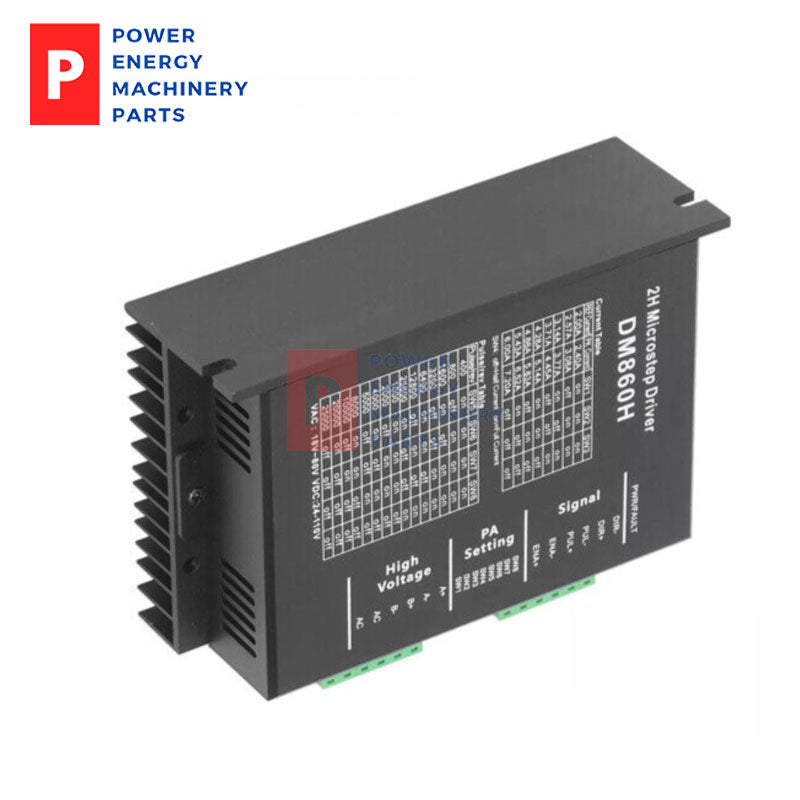

Original Leadshine DM860H 2-Phase Digital Microstep Stepper Motor Driver

Product Specifications

• Model: DM860H
• Brand: Original Leadshine
• Type: 2 Phase Digital Microstep Stepper Driver
• Matching Motor: NEMA34 / 86mm two-phase hybrid stepper motor (4/6/8 wire compatible)
• Power Input: AC18~50V / DC24~80V
• Output Peak Current: 2.1A ~ 7.2A, 8 levels adjustable via DIP switch
• Microstep Resolution: 200~51200 subdivisions configurable
• Max Pulse Frequency: 500KHz
• Signal Input: Opto-isolated differential signal, compatible with 5~24V pulse/direction
• Protection: Overvoltage, Undervoltage, Overcurrent protection
• Working Temperature: 0℃ ~ +50℃
• Humidity Resistance: Max 90% non-condensing
• Application: CNC engraving machine, laser cutting, automation equipment
• Warranty: 12 months genuine factory warranty
