Used for measuring gear rotation speed. Its main advantages include stable signal output, wide range of operational temperature, small size, and simple assembly process.
It covers a wide range of measurements, including zero rotation speed.
The shell appearance, material and thread fitting
Protection rank: IP65

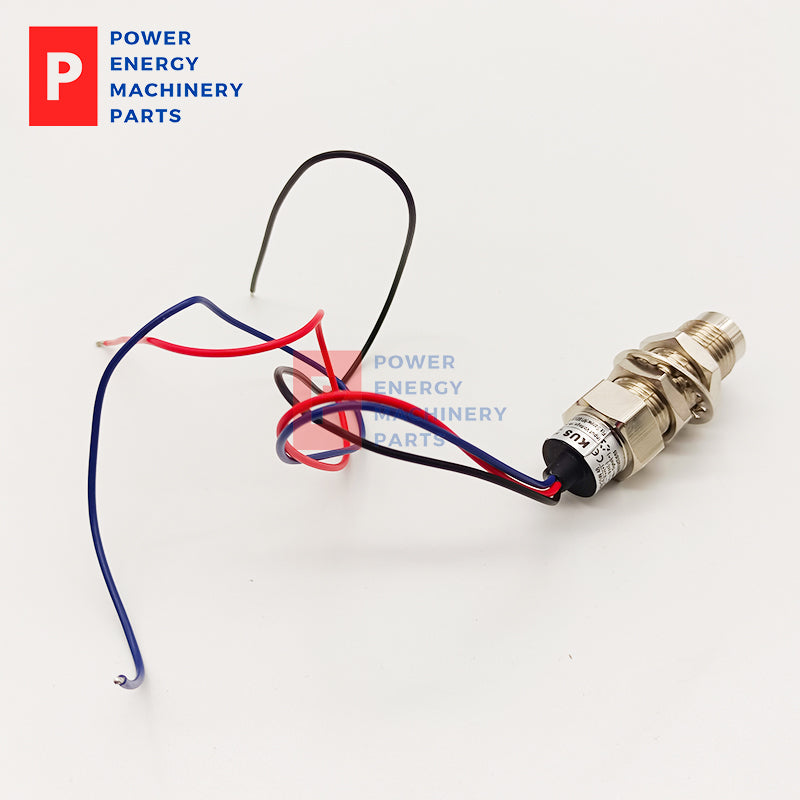

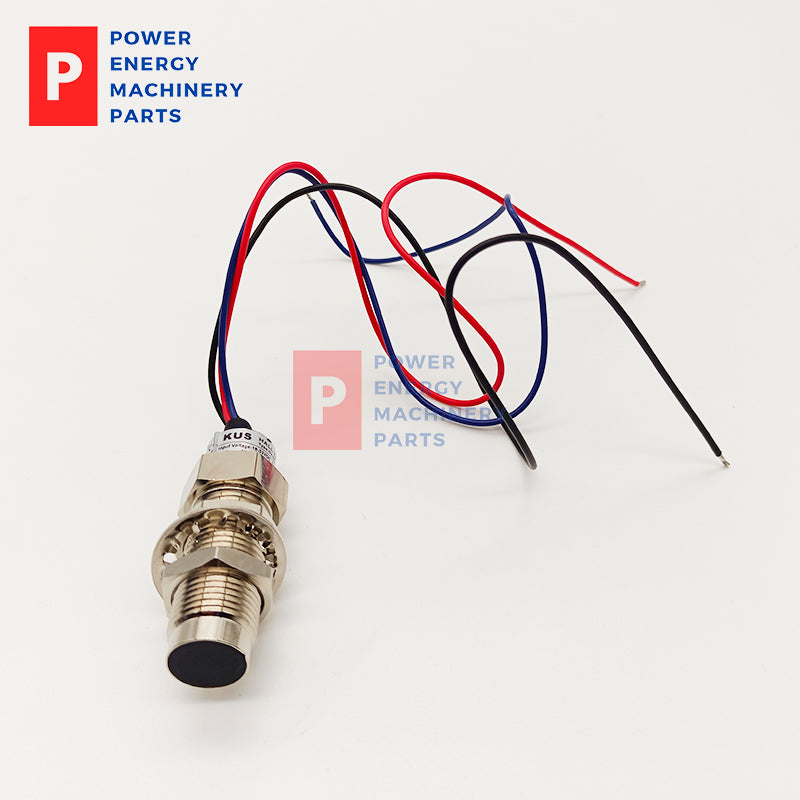

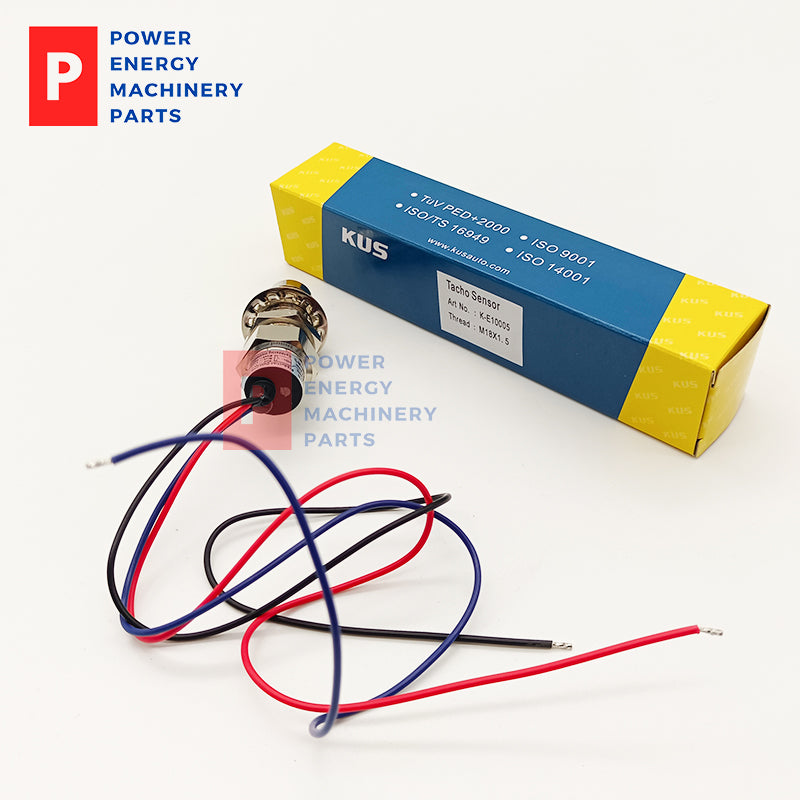

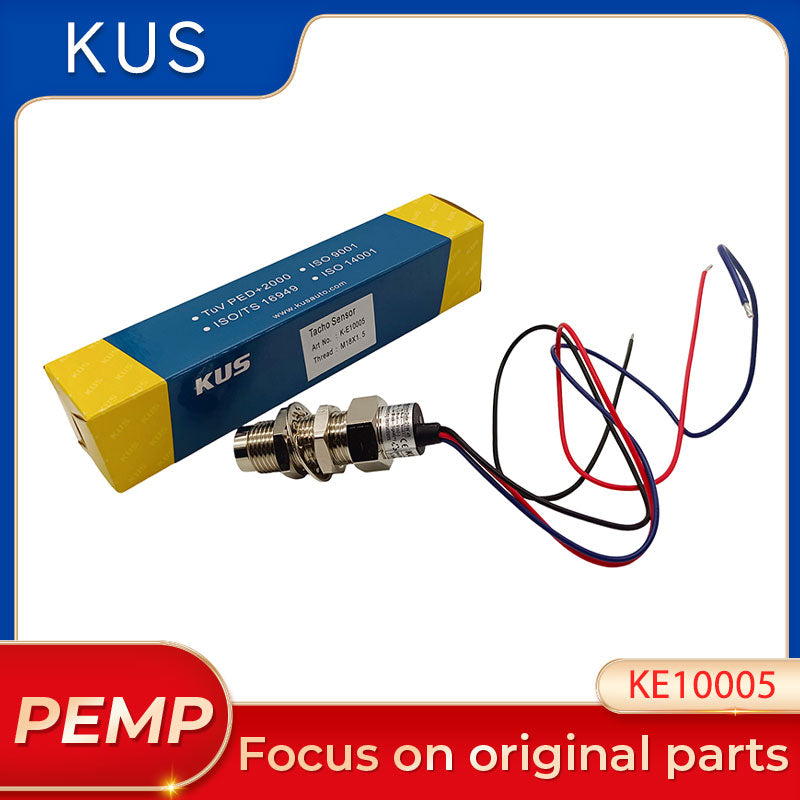

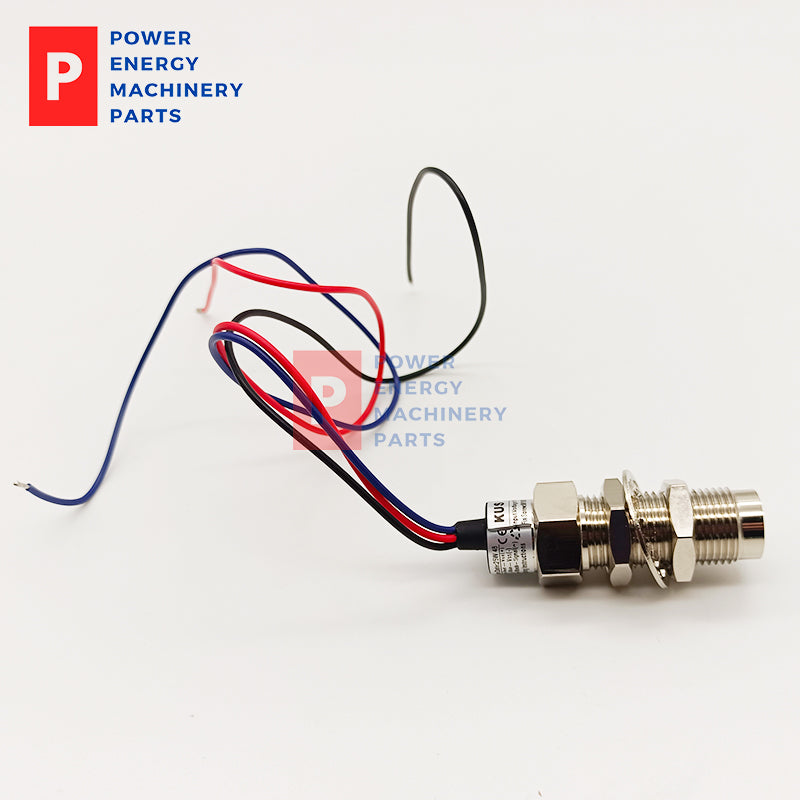

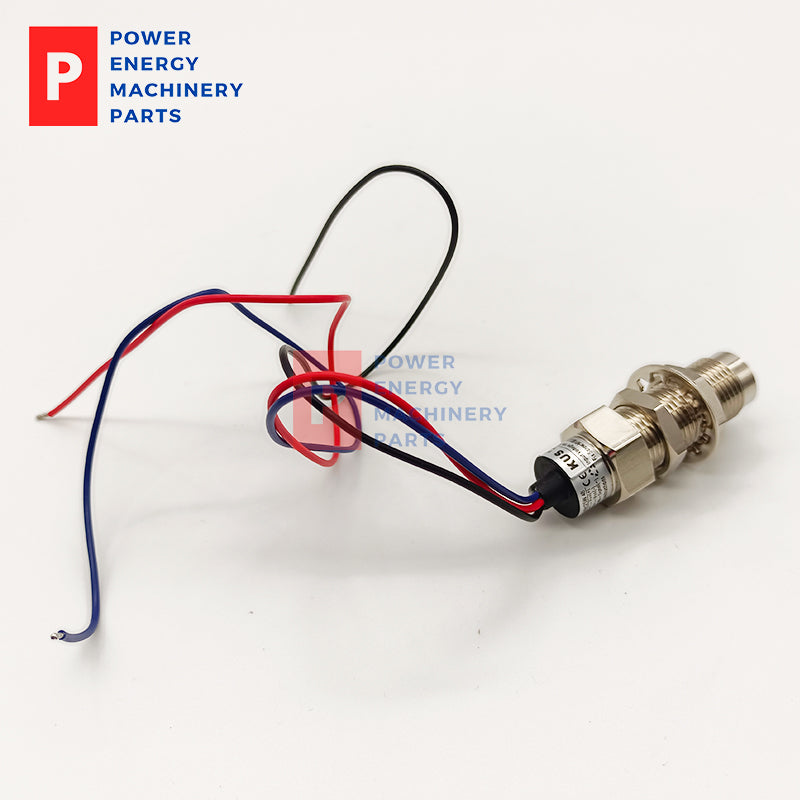

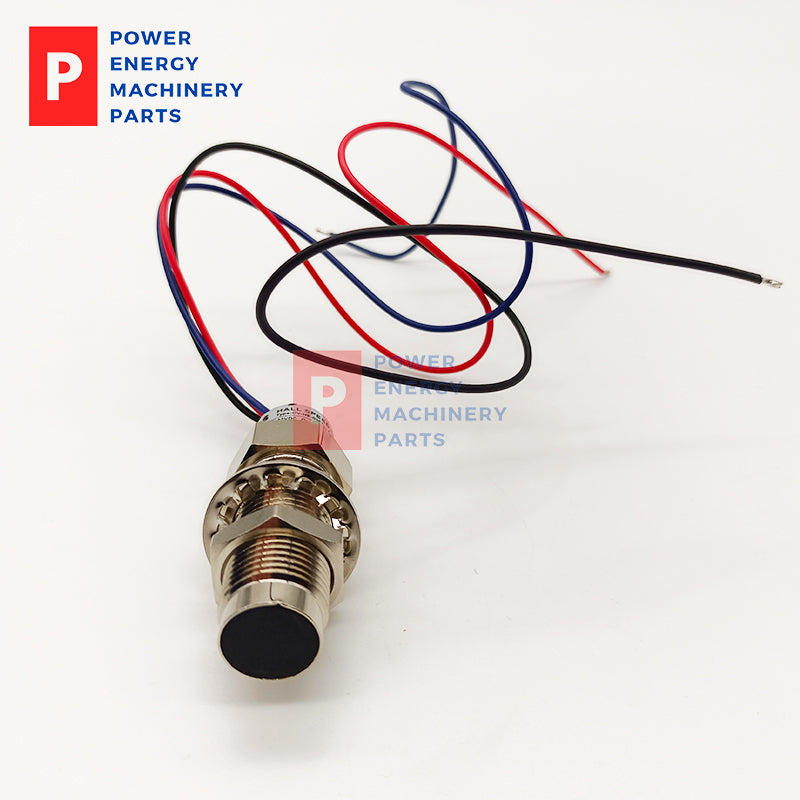

Full Model Marking
- Brand: KUS Original
- Part No.: KE10005
- Sensing Principle: Active 3-Wire Hall Effect Speed Sensor
- Mount Thread: M18×1.5 Solid Stainless Steel Metric Male Thread
- Power Supply: 8V ~ 32V DC Wide Voltage
- Output Signal: Standard Square Wave Pulse, Fixed Amplitude
- Wiring Definition: Red=Power, Black=GND, Blue=Signal Output
- Protection Grade: IP65 fully sealed anti-oil, dust & splash water
- Max Continuous Short-Term Working Temp: -40℃ ~ +85℃
- Detecting Air Gap: 0.5–2mm (distance between probe head and gear tooth surface)
- Warranty: 12 months genuine factory warranty
