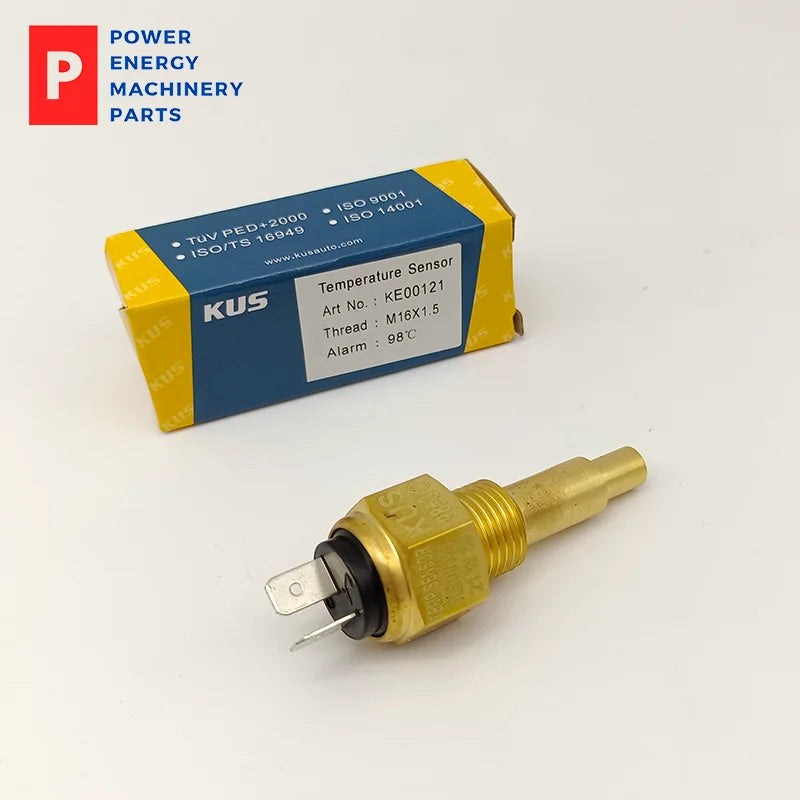

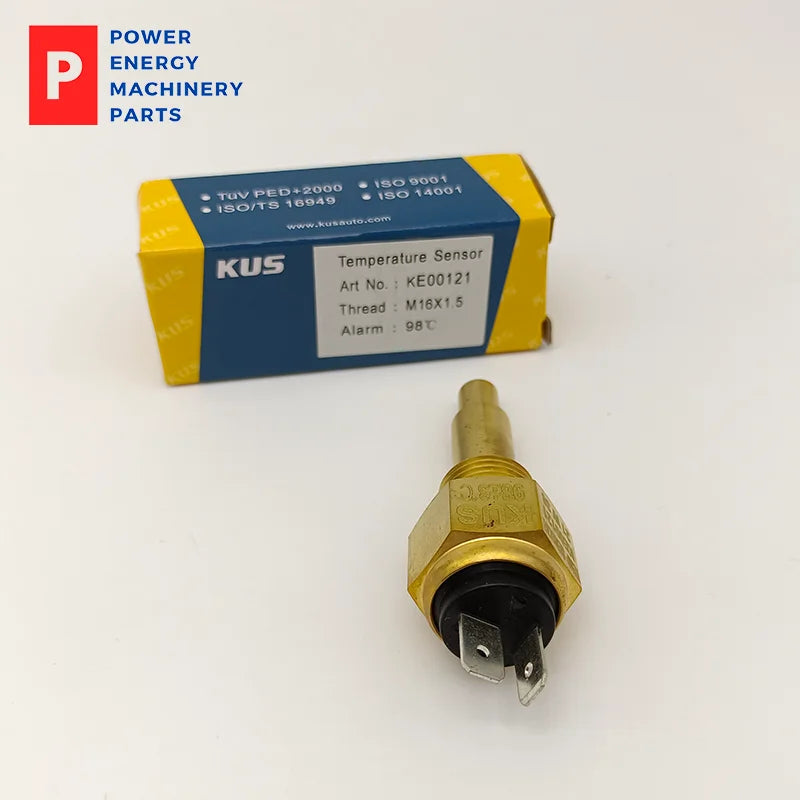

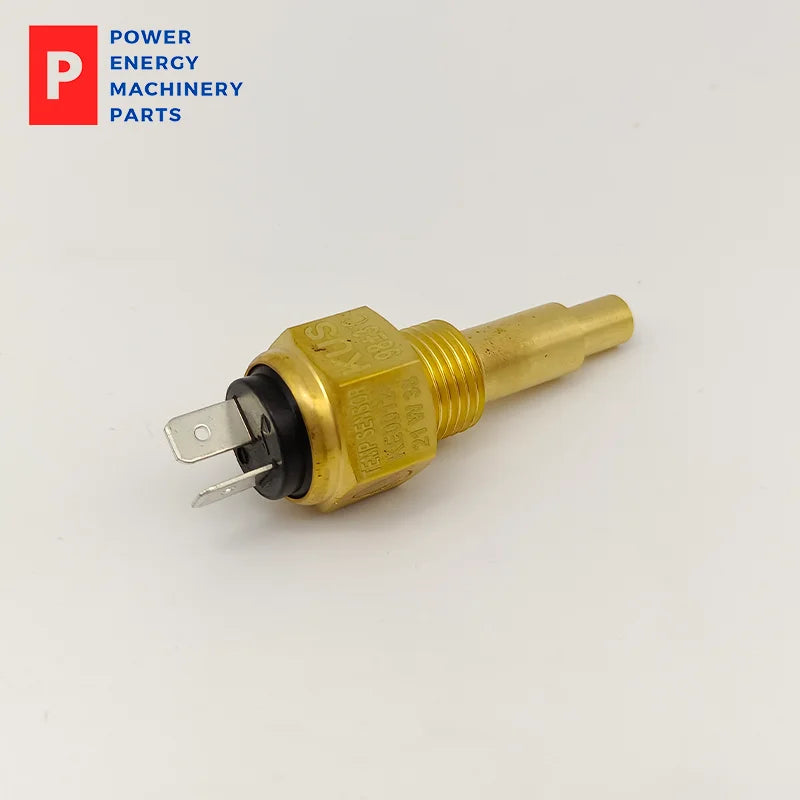

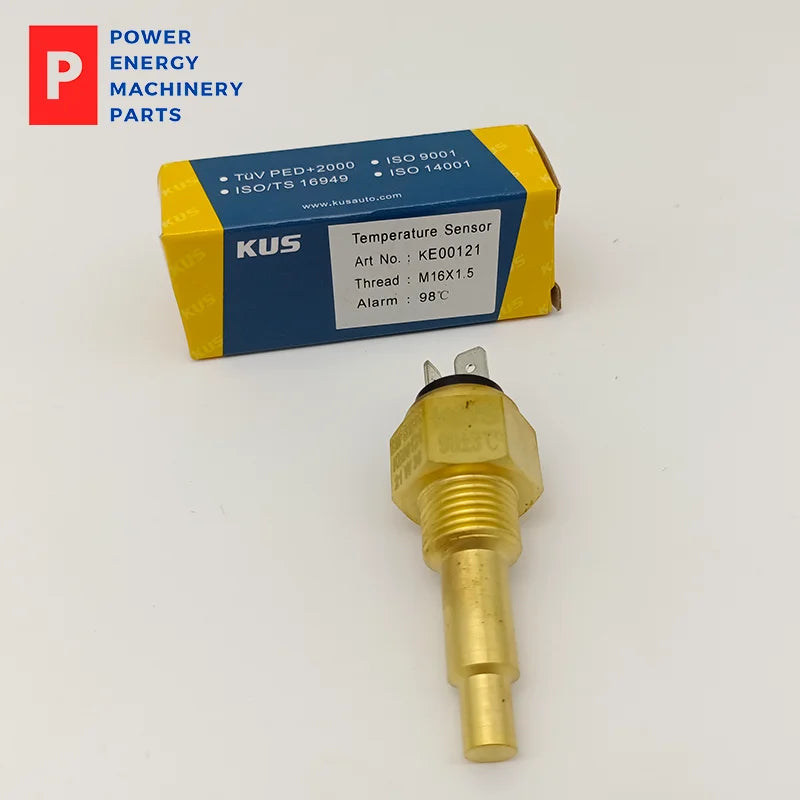

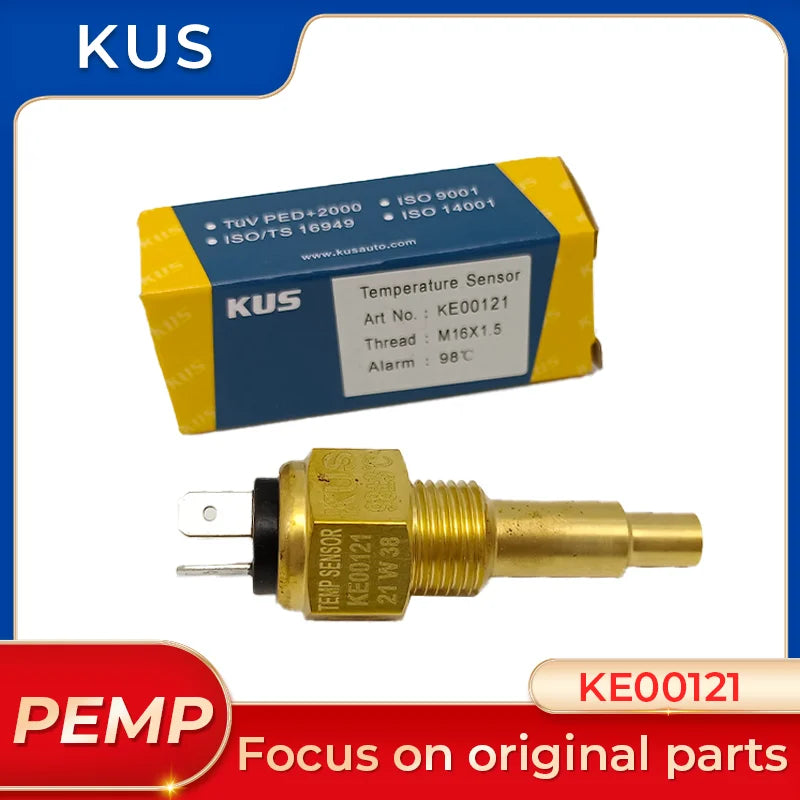

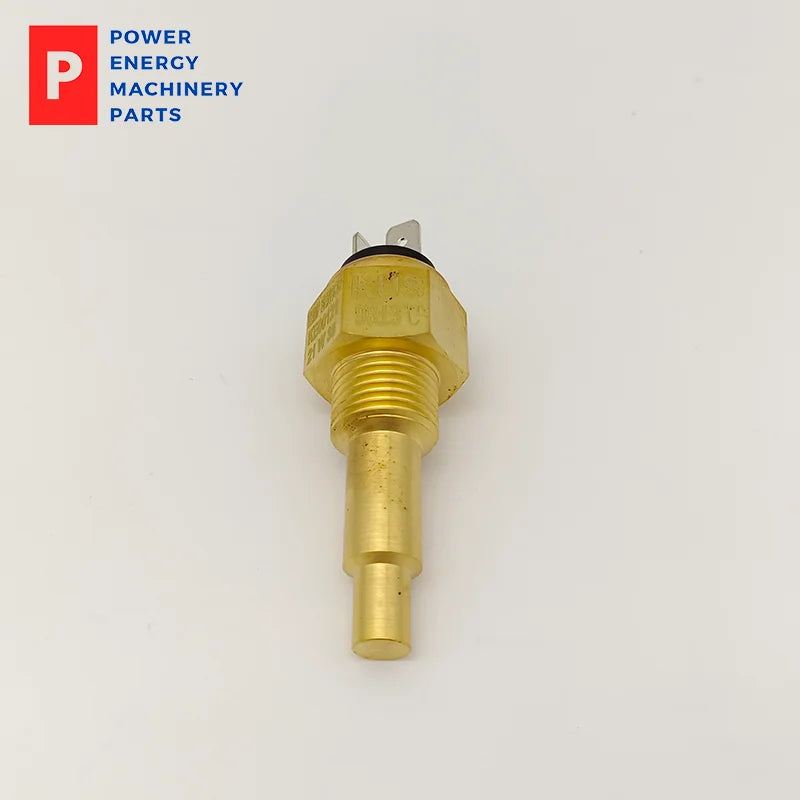

Original KUS KE00121 Water Temperature Sensor With Alarm 98℃ M16×1.5 Generators Parts
Original KUS KE00121 Water Temperature Sensor With Alarm 98℃ M16×1.5 Generators Parts
Regular price
$28.00 USD
Regular price
$0.00 USD
Sale price
$28.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Original KUS KE00121 Water Temperature Sensor With Alarm 98℃ M16×1.5 Generators Parts
Product Specifications
- · Model: Genuine KUS KE00121 Coolant Water Temperature Sensor With 98℃ Alarm Switch
- · Thread: M16×1.5 Male Brass Thread
- · Alarm Temperature: 98℃ Overheat Cut-off Switch
- · Sensing Type: NTC Negative Temperature Coefficient Resistance Signal
- · Power Supply: DC12V/24V Universal Generator Battery
- · Terminals: Dual Flat Spade Terminals (Temp Signal + Alarm Output)
- · Housing: Forged Solid Brass IP67 Waterproof Sealed
· Mount Thread: M16×1.5 external brass thread, equipped with rubber sealing gasket
· Alarm Temperature: 98℃ (switch open circuit when over temp)
· Sensing Element: High-stability NTC thermistor
· Working Voltage: DC 12V / 24V universal for generator battery systems
· Alarm Switch Rated Power: Max 3W
· Temperature Tolerance: Alarm point ±3℃ accuracy
· Housing Material: Forged brass, anti-corrosion & anti-coolant erosion
· Protection Grade: IP67 waterproof, anti-oil splash
· Working Temp Range: -40℃ ~ +130℃
· Service Life: ≥3 million temperature cycle tests
· Net Weight: 0.1KG
· Package：Carton Packaging
· Net Weight: 0.1KG
· Package：Carton Packaging
- · Warranty: 12 Months Factory Warranty
Compatible Engines & Genset Controllers
Applicable Diesel Engines
Perkins, Cummins, Weichai, Yuchai, SDEC, Deutz, Volvo, marine auxiliary diesel engines
Compatible Controllers
- DeepSea: DSE402 MKII, DSE704 MKII, DSE8660 MKII, DSE8003 MKII, DSE8004
- Smartgen: HGM6120, HGM7220, LPG2002
- ComAp: IC-NT MINT
- DEIF: AGC-4
- KUS original analog water temp gauges & KMG multi-function display meters
♦ The main body is made of brass.
♦ Sensors with alarm features has
♦ double metal plate connectors.
♦ Protection rank : IP67
♦ Rated voltage : 6V~24V
♦ Temperature response time : Minimum 3 minutes
♦ after power supply electrified.
♦ Rated power for alarm switch : 1.2W~3W
♦ The temperature alarm tolerance : ±3℃
♦ Type of alarm touch :
♦ The switch turns off when the temperature rises.
Tempeature
