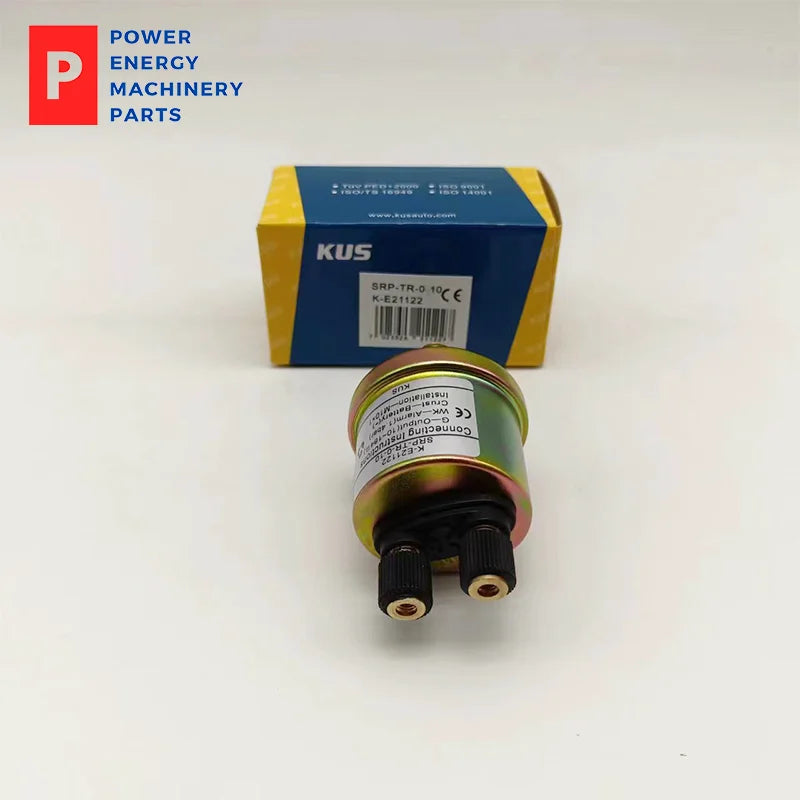

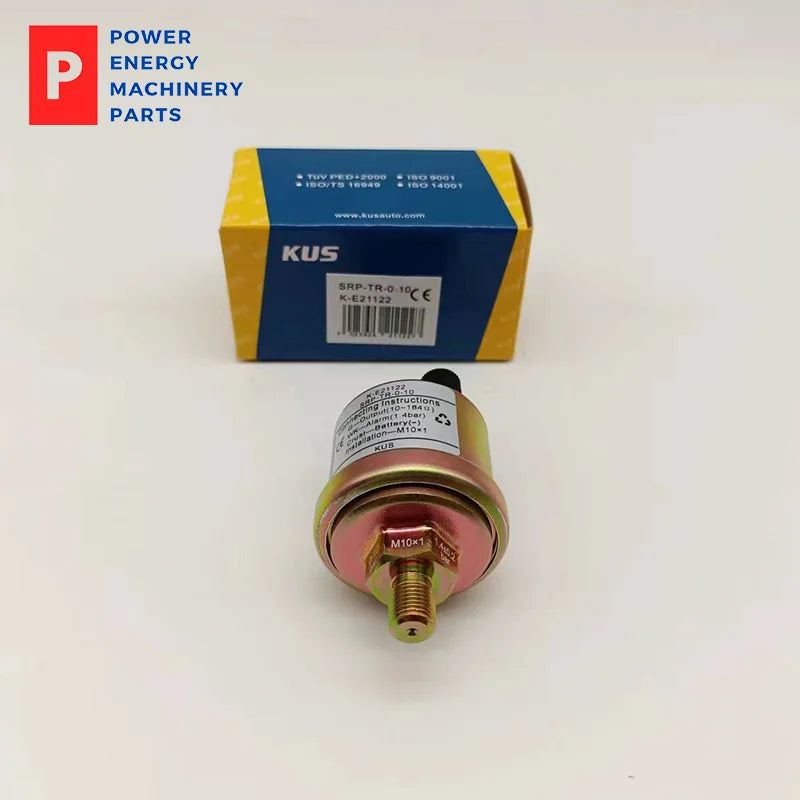

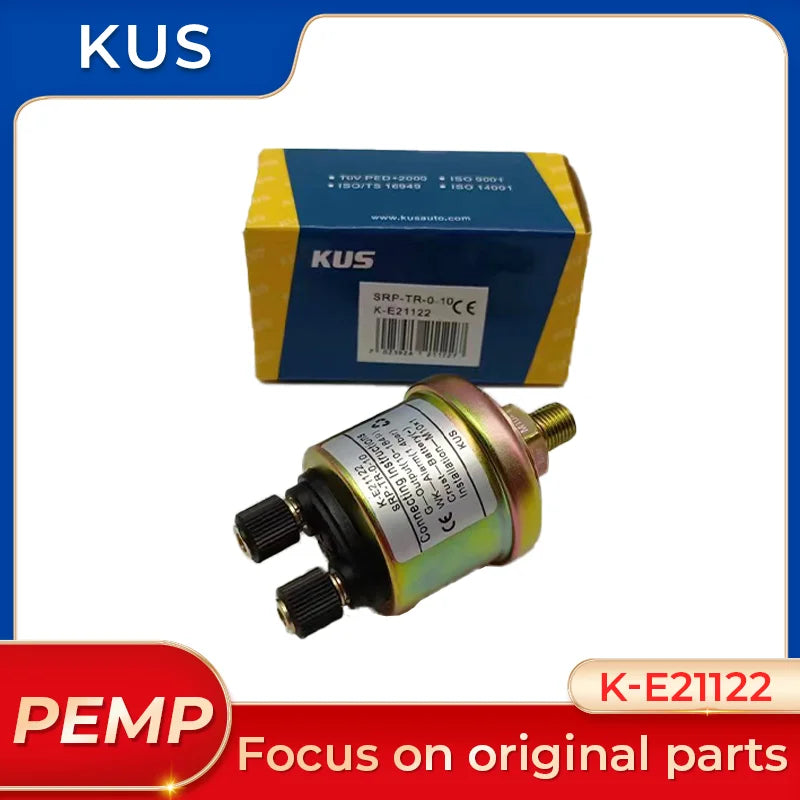

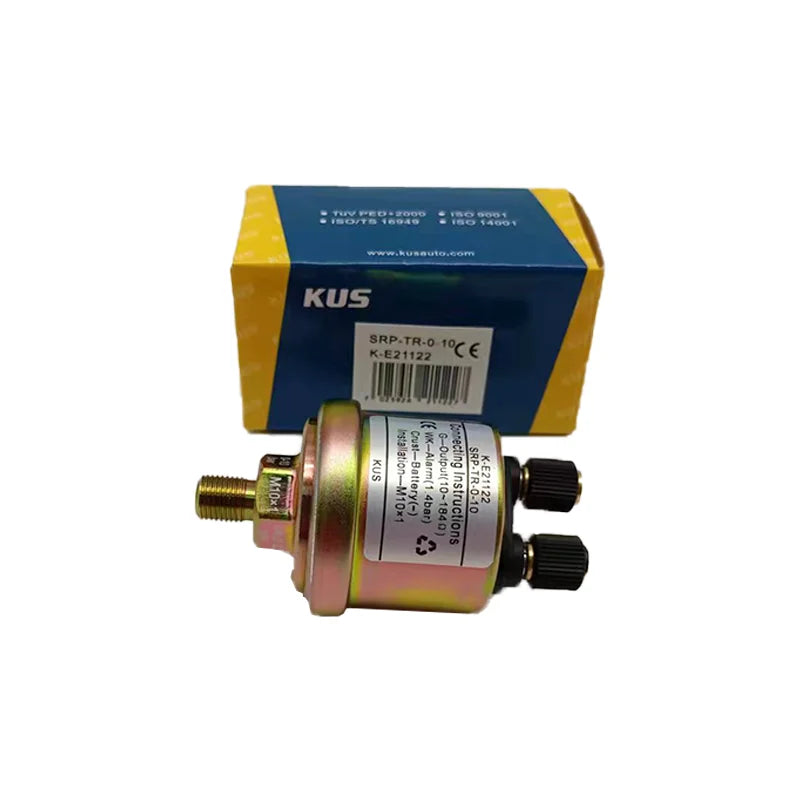

Original KUS K-E21122 Oil Pressure Sensor KE21122 With Alarm 1.4bar Thread VDO

Original KUS K-E21122 Oil Pressure Sensor KE21122 With Alarm 1.4bar

Overview:
It combines the advantages of excellent antivibration performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
It is largely applied to many fields, such as the engine pipe of vehicles and ships, water processing projects, inspection and control of industrial processes, hydraulic and pneumatic control projects, etc.

Product Specifications

• Model: Genuine KUS K-E21122 Dual Terminal Oil Pressure Sender (With 1.4Bar Low Pressure Alarm)
• Pressure Range: 0 ~ 10 Bar
• Resistance Output: 10Ω ~ 184Ω Linear Resistance Signal
• Alarm Function: Built-in mechanical low pressure switch, trigger at 1.4Bar
• Power Supply: DC6 ~ 24V Universal 12V/24V Generator Battery
• Mount Thread: 1/8 NPT Male Thread
• Protection rank: IP66
• Terminal: Dual M4 Screw Terminals (Separate Gauge Signal + Alarm Output)
• Housing: Zinc-Plated Metal IP66 Fully Sealed Anti-Oil & Waterproof
• Warranty: 12 Months Genuine KUS Factory Warranty

Wide Application Range

1. Full-function diesel generator OEM supporting: simultaneous oil pressure display + low oil automatic shutdown protection
2. Old dual-terminal alarm oil sender failure replacement: no gauge reading, unstable pressure value, oil leakage, missing low oil fault alarm
3. Power rental & maintenance shop stock for standard gensets, marine engines, construction machinery with safety protection requirement
4. Retrofit complete safety monitoring system for silent generator sets, add low oil pressure auto stop protectio
