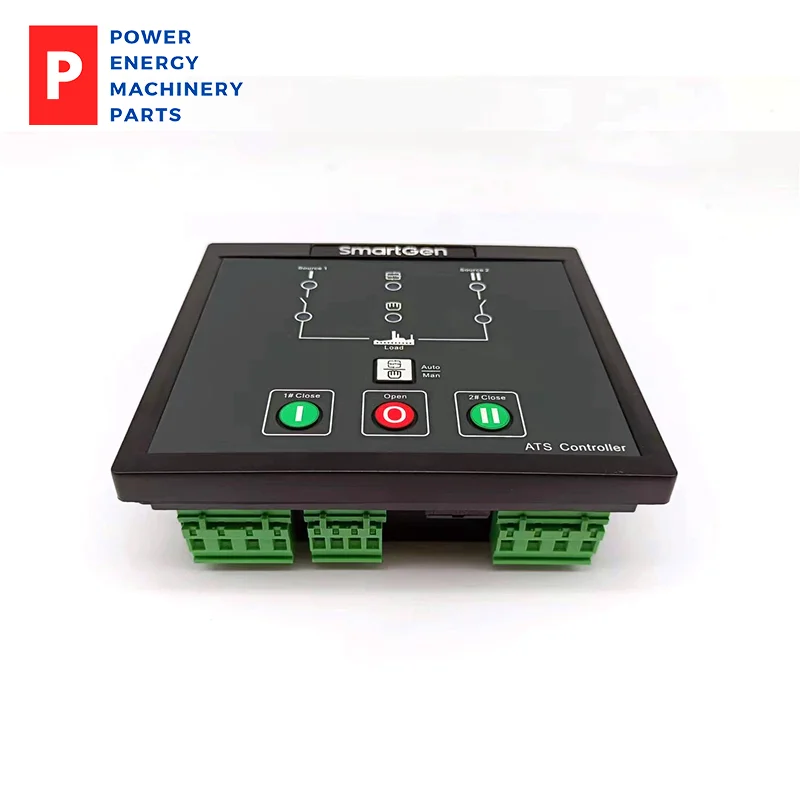

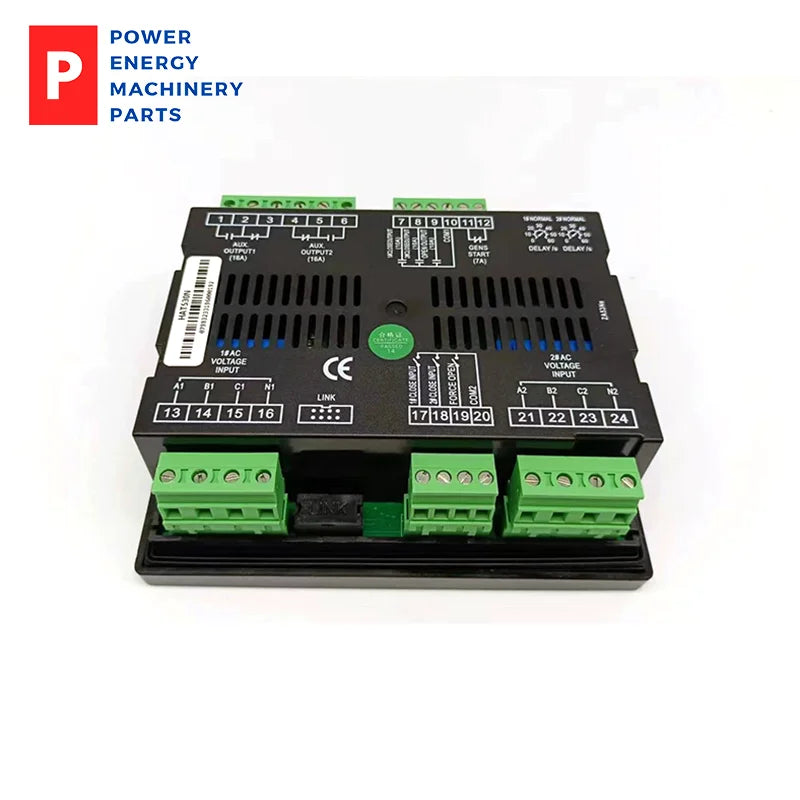

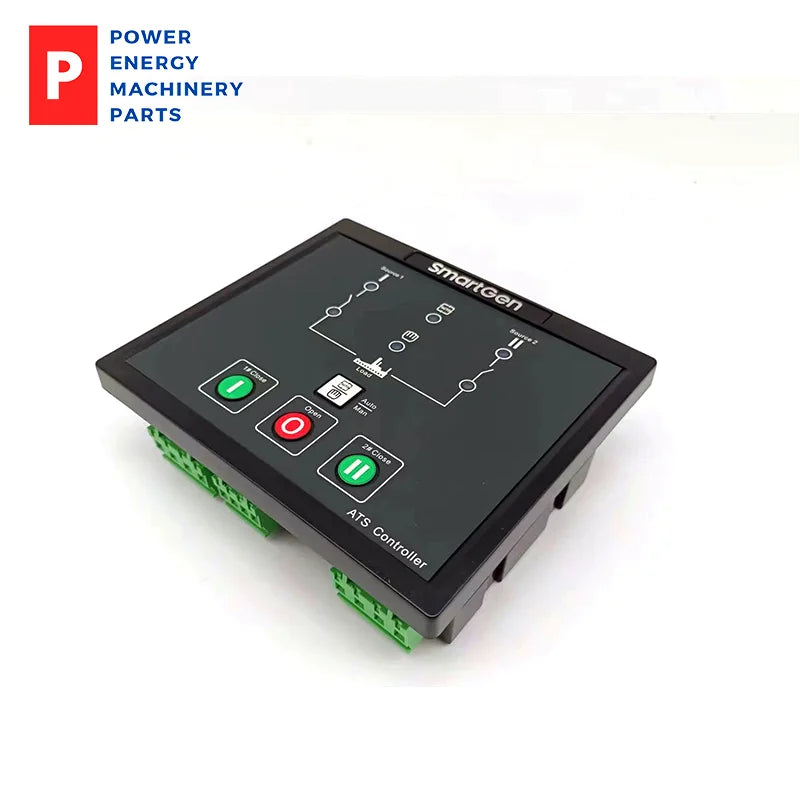

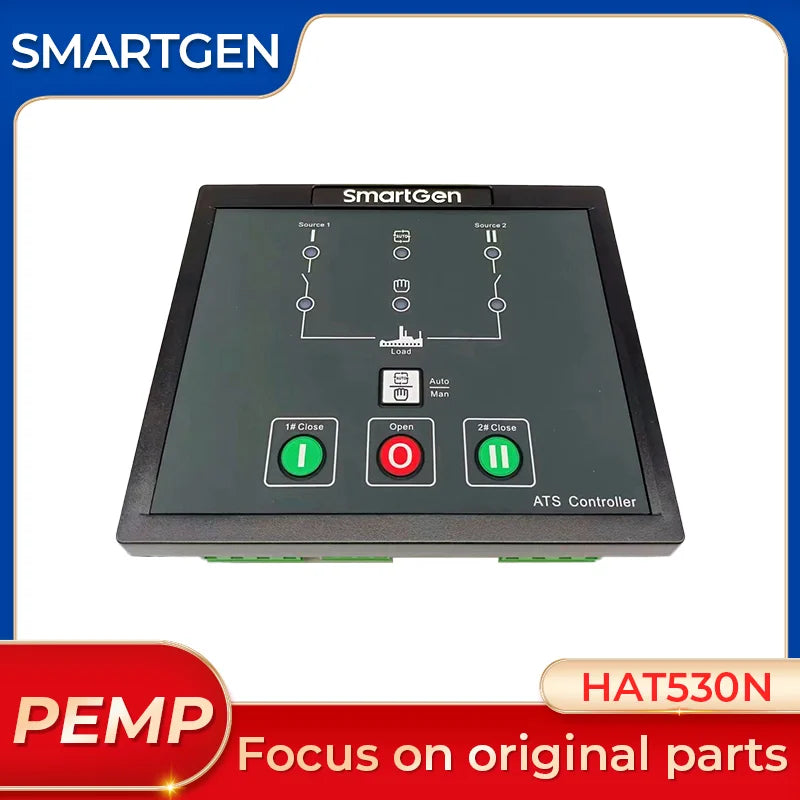

Original HAT530N Smartgen ATS Genset Controller Automatic Transfer Switch Control Module
Original HAT530N Smartgen ATS Genset Controller Automatic Transfer Switch Control Module
Regular price
$139.00 USD
Regular price
$0.00 USD
Sale price
$139.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Original HAT530N Smartgen ATS Genset Controller Automatic Transfer Switch Control Module
HAT530N
Suitable for NO Breaking ATS and ONE Breaking ATS
Overall Dimension : 139*120*50
Installation Dimension : 130*111
Working Temperature : (-25~+70)℃
weight : 0.51kg
Specification
- Part Number: HAT530N
- Brand: Original SmartGen
- Type: 2-way automatic transfer switch controller (mains + generator)
- Measured Quantities: Two-way 3-phase / single-phase voltage, frequency
- Fault Detection: Power loss, over/under voltage, over/under frequency, phase loss, wrong phase sequence
- AC Wiring Support: 1P2W / 2P3W / 3P4W (selectable)
- AC Input Range: AC 170–277 V (ph–N)
- Operating Supply: AC 170–277 V (from L1N1 / L2N2 sense lines)
- Power Consumption: <3 W; Standby <1 W
- Configuration: Front-panel keys for AC system & delays; LINK port for PC parameter setup (via SG72 module)
- Compatible Switches: Socomec ATyS M3s / ATyS 3s and equivalent motorized ATS
- Working Temp: ‑25 °C to +70 °C
- Warranty: 12 months genuine factory warranty
