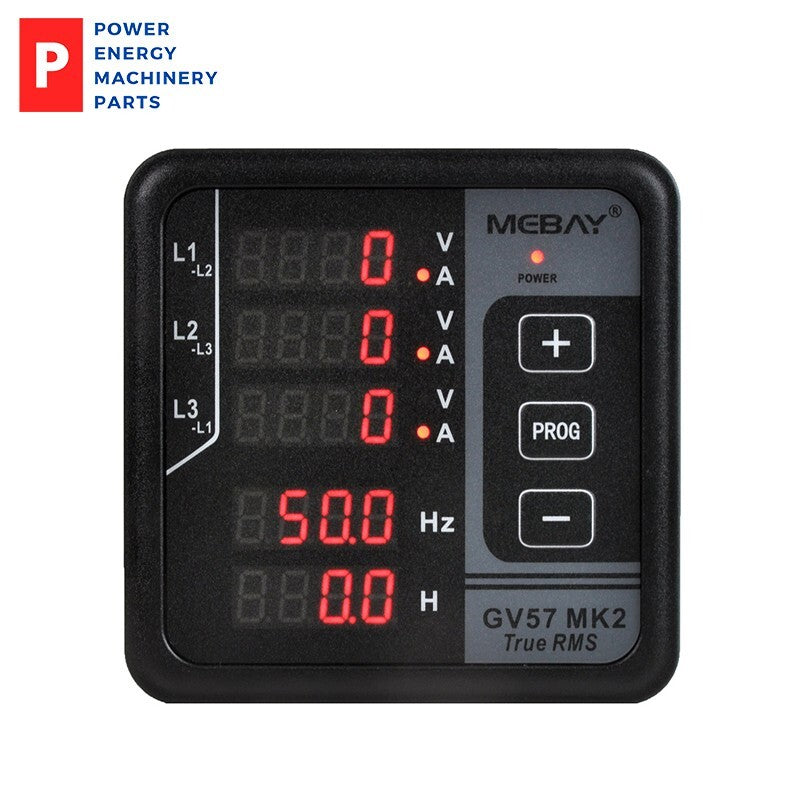

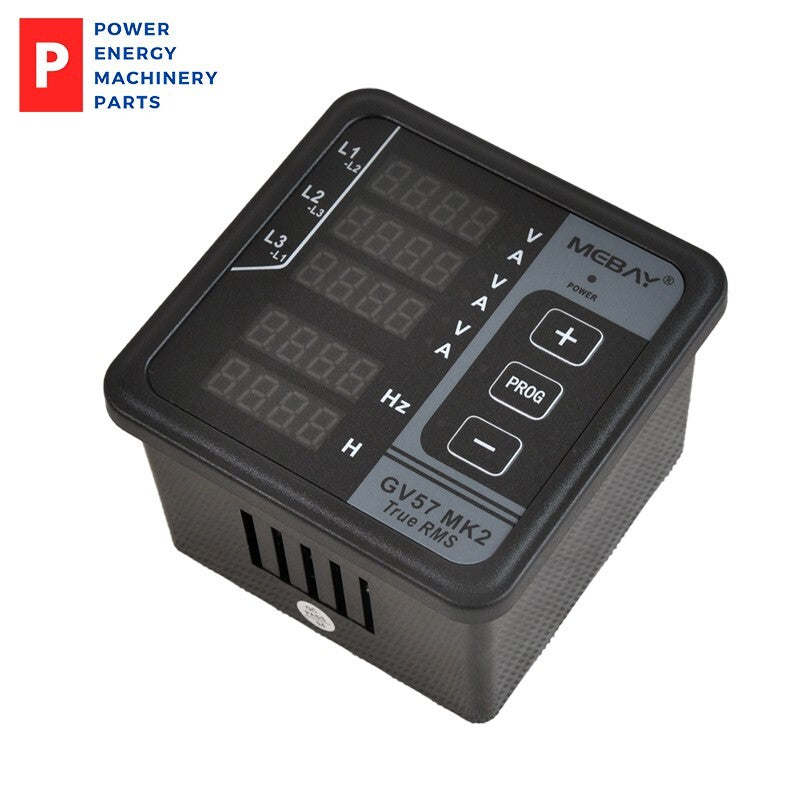

Original GV57 MK2 Diesel Engine AC Voltage Digital Multi-Function Meter PEMP

Original GV57 MK2 Diesel Engine AC Voltage Digital Multi-Function Meter PEMP

Summary

  GV57 MK2 is a voltage and current detection instrument for three-phase generator. Five high brightness LED displays relevant parameters. RS485 communication port can be selected to read more parameters. The system parameters can be set according to the key, so as to meet the application of different occasions.

  There are two models of GV57 MK2 series instruments

    GV57 MK2: AC power supply, can sample and display three-phase AC voltage, three-phase AC current and other parameters;

    GV57R MK2: on the basis of GV57 MK2, RS485 port is added to monitor relevant parameters and set parameters through PC software.



Main Features

  Micro-computer Control.

  High-lighted LED tube Indication.

  Five screens display.

  AC power supply.

  Configurable AC CT Ratio .

  Wide voltage range.



Parameters display

  Line Voltage:L1-L2、L2-L3、L3-L1(V)；

  Three phase current(A)；

  Frequency(Hz)；

  Cumulative running time(H);

  Average power factor cos Φ (read only through RS485 port);

  Power factor cos Φ (read only through RS485 port);

  Active power kW (read only through RS485 port);

  Reactive power kvar (read only through RS485 port);

  Apparent power KVA (read only through RS485 port);

  Kwh of the current electric quantity (read only through RS485 port);

  Accumulated electric energy kWh (read only through RS485 port);





Range and accuracy

  AC voltage:Phase voltage AC30-276V,Deviation≦±1%(within the range)

  Current:0-6000A；deviation≦±2%

  Frequency:10-70HZ;deviation≦±0.5%;

  The average power factor cos Φ: 0-1.0, the error is less than ± 5%;

  Power factor cos Φ: 0-1.0, error less than ± 5%;

  Active power: 0-1380kw, error less than ± 3%;

  Reactive power: 0-1380kvar, error less than ± 3%;

  Apparent power: 0-1380kva, error less than ± 3%;

  Electric quantity: 0-9999kwh, error less than ± 5%;

  Cumulative power: 0-9999kwh, error less than ± 5%;

  Cumulative operation time H: 0-99999, error less than ± 5%;



Specification

  Power Supply:AC165-275V Continuous

  Power Consumption:MAX 3W

  Working condition:-25-70℃

  Storage condition:-40-85℃

  Protection Level IP54:when waterproof rubber gasket is added between controller and its panel

  Overall dimension:100mm*100mm*77mm

  Panel cutout::91mm*91mm

  Weight:0.32Kg
