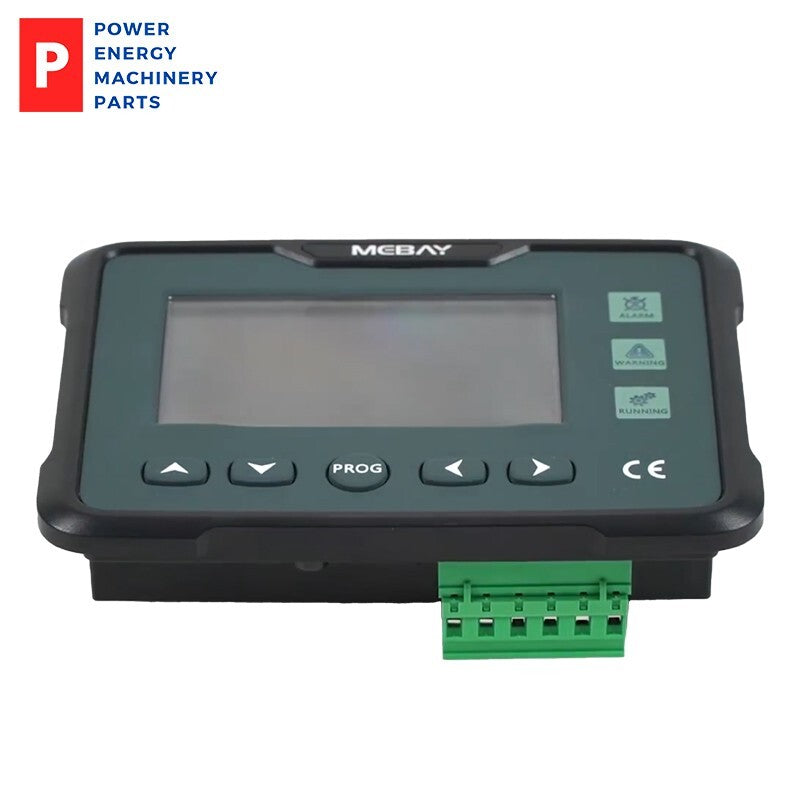

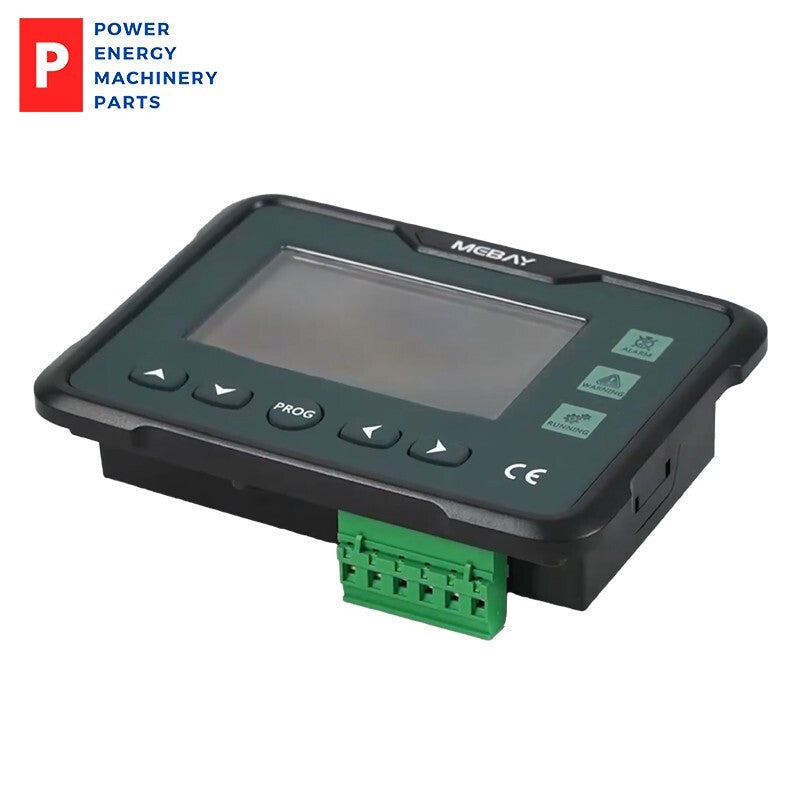

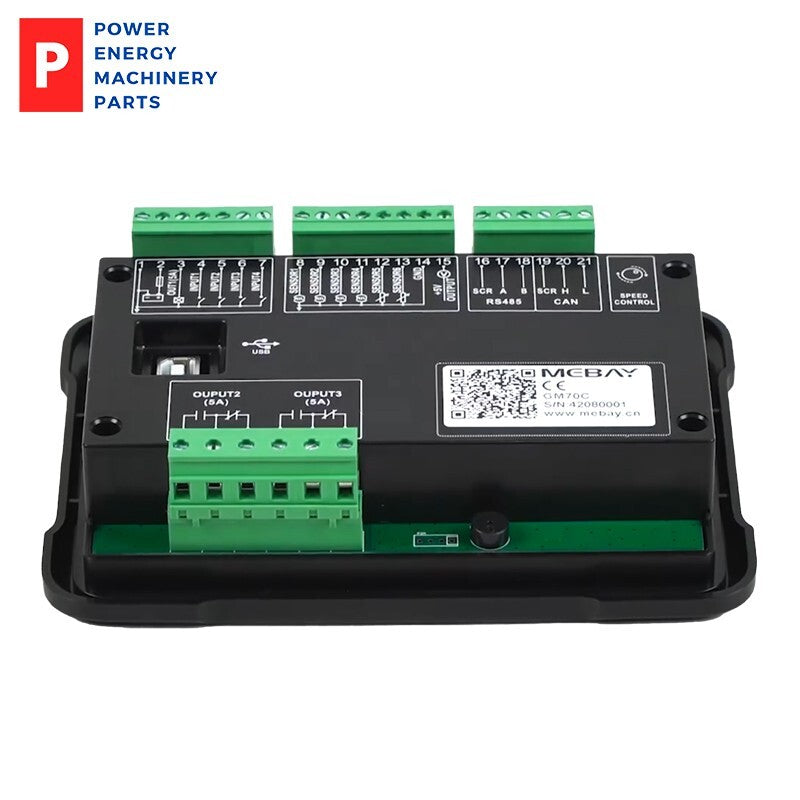

Original GM70CW Mebay Diesel Water Pump Meter Parameter Monitor PEMP

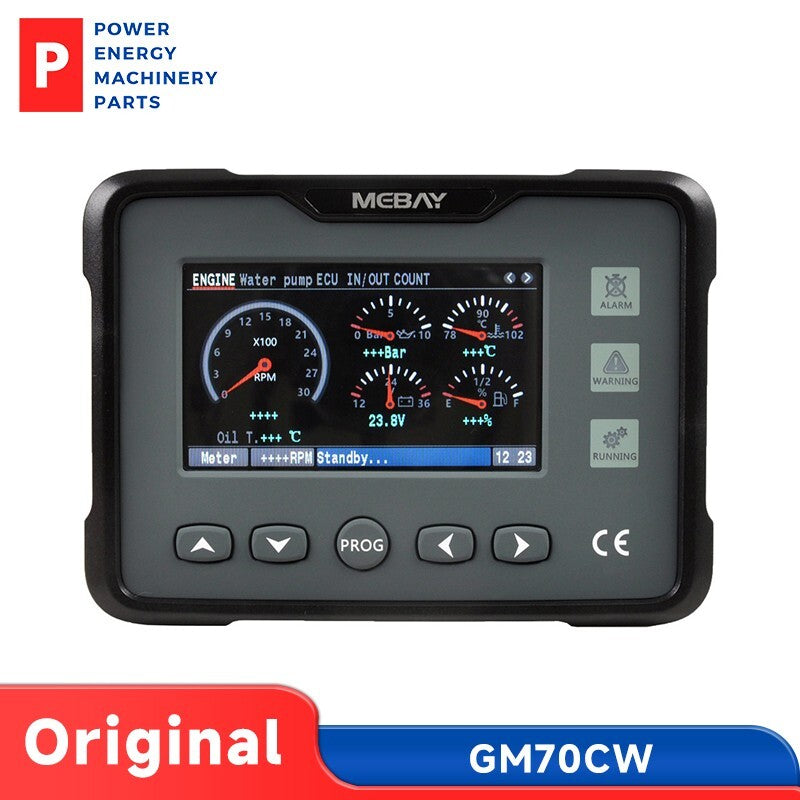

Diesel engine driven water pump meter, 4.3 inch color LCD screen, CAN interface, RS485 interface, USB interface, can set the main engine or auxiliary engine working mode, alarm protection output, water level + water pressure + fuel level sensor input. Speed can be adjusted by panel buttons and rotary encoder.


Parameters Display

  Engine RPM

  Engine oil pressure

  Engine water temperature

  Engine oil temperature

  Engine fuel level

  engine battery voltage

  ECU related parameters

  4 switches input status display

  Output status display of 3 relays

  Cumulative number of startups

  Total number of alarms

  Total Crank times

  Current running time

  Total running time

  Maintenance notice



Protection

  Over speed

  Under speed

  Low oil pressure

  High water temperature

  High oil temperature

  Low oil level

  Low water level alarm

  External instant alarm

  Low coolant level switch warning

  Sensor Open

  Maintenance expire

  ECU alarm failure

  ECU communication Failure

  External shutdown alarm



Parameters

Options	Parameters
Working voltage	DC8V----36V Continuous
Power consumption	Standby:24V:MAX 1W
	Working:24V:MAX 3W
MAX Accumulating Time	99999.9Hours（Min Store time:6min）
Programmable Relay output 1	Max 5Amp DC+VE Supply voltage
Programmable Relay output 2	250V/5 AMP Non-contact normally Open/Closed output
Programmable Relay output 3
Switch value input	Available if connecting with Battery -
Working condition	-25-65℃
Storage condition	-40-85℃
Protection Level	IP65:when waterproof rubber gasket is added between meter and its panel
Insulation strength	Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.
Overall dimension	175mm*128mm*39mm
Panel cutout	152mm*112mm
Weight	0.5Kg
