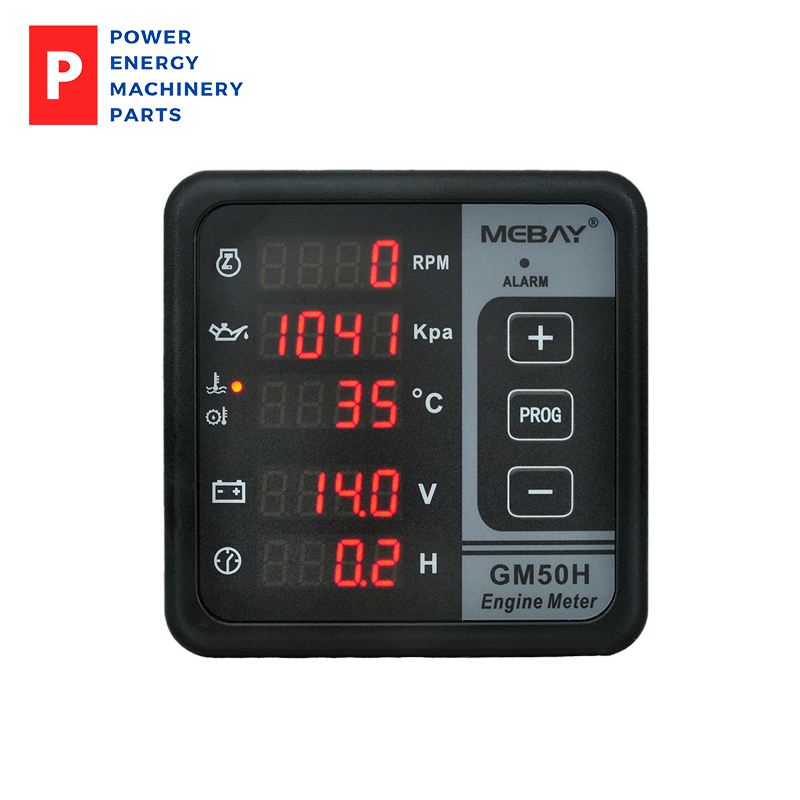

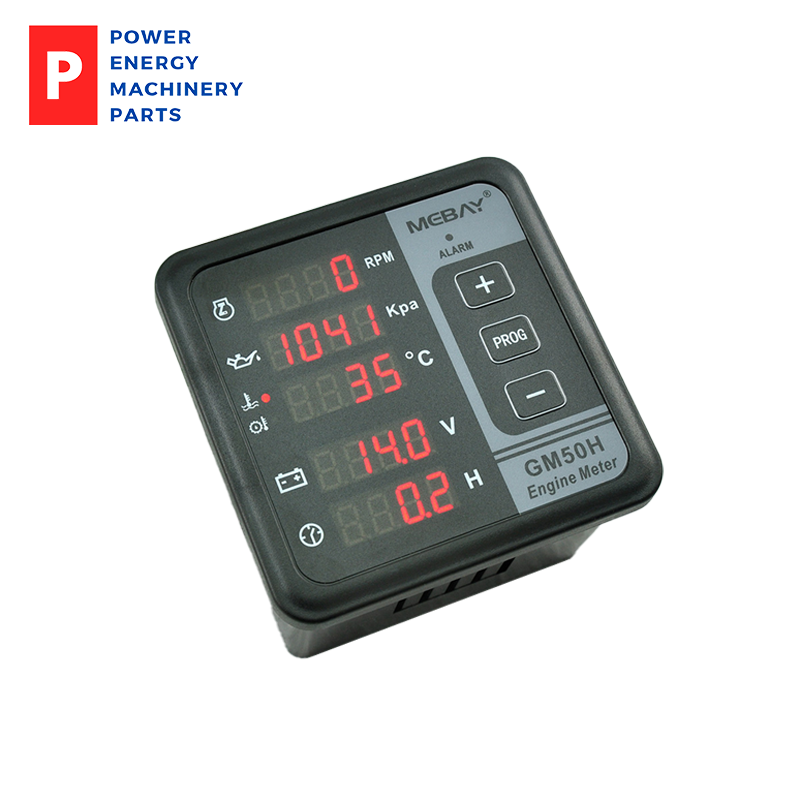

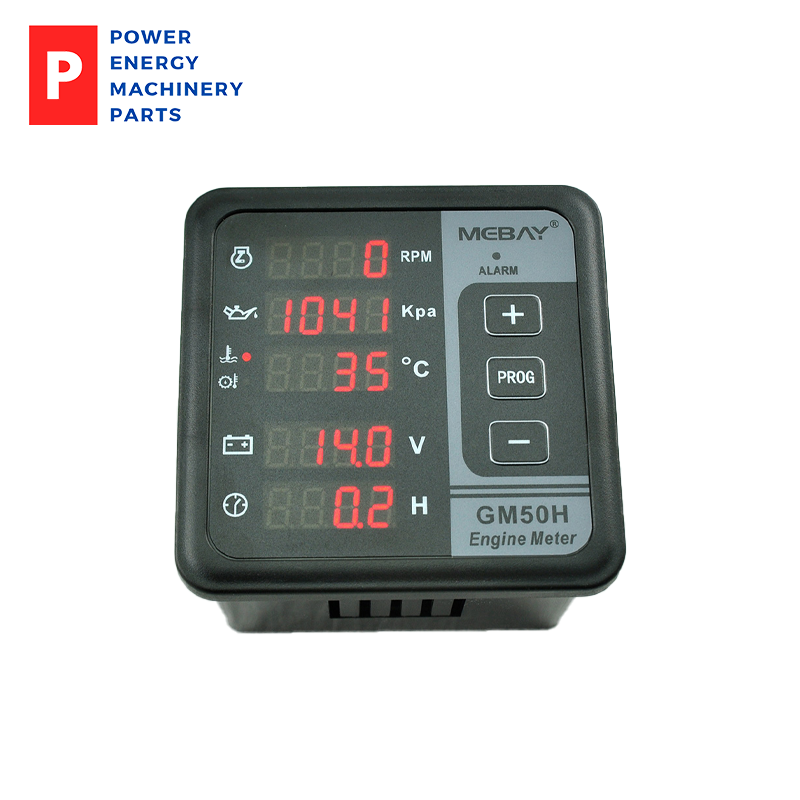

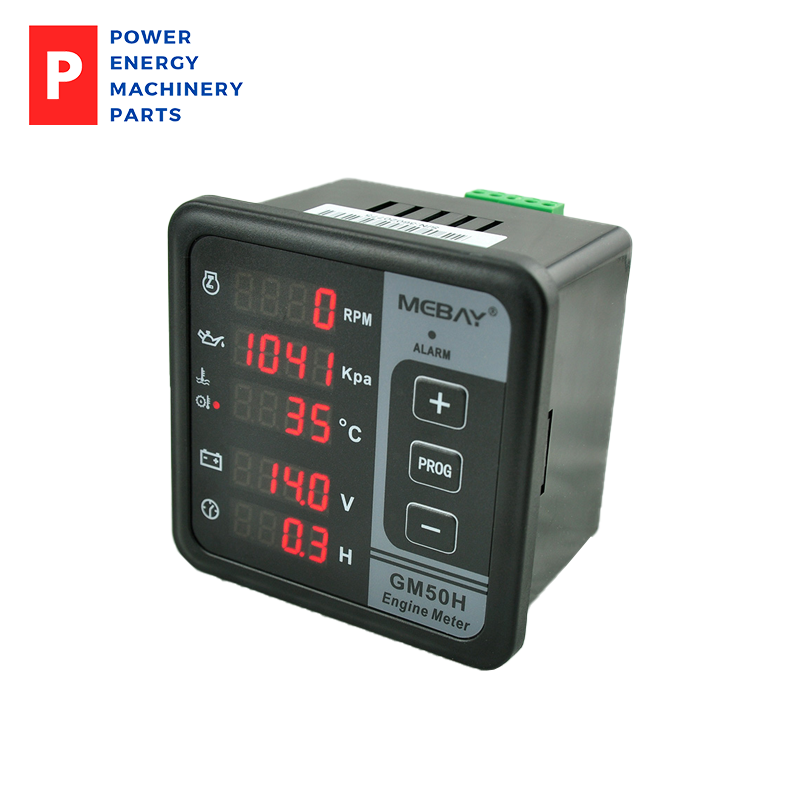

Original GM50H MK3 Generator Digital Multi-function Meter Diesel Engine Monitor

Original GM50H MK3 Generator Digital Multi-function Meter Diesel Monitor Engine Control Panel

1.Summary

GM50H MK3 is one light and low price-orientated module used for demonstrating engine RPM,coolant temperature, oil temperature,oil pressure, battery voltage and Hours. The users can adjust and set the parameters by the button on the front face in order to meet the different requests.

Besides, it uses the European-style terminals for connection which is more convenient for installation and detachment.



2.Main Features

There are two models for GM50H MK3 series Meter:

GM50H MK3: monitor and display RPM, Oil Pressure, coolant temperature, oil temperature, Battery voltage and Accumulation Time with Alarm function added.

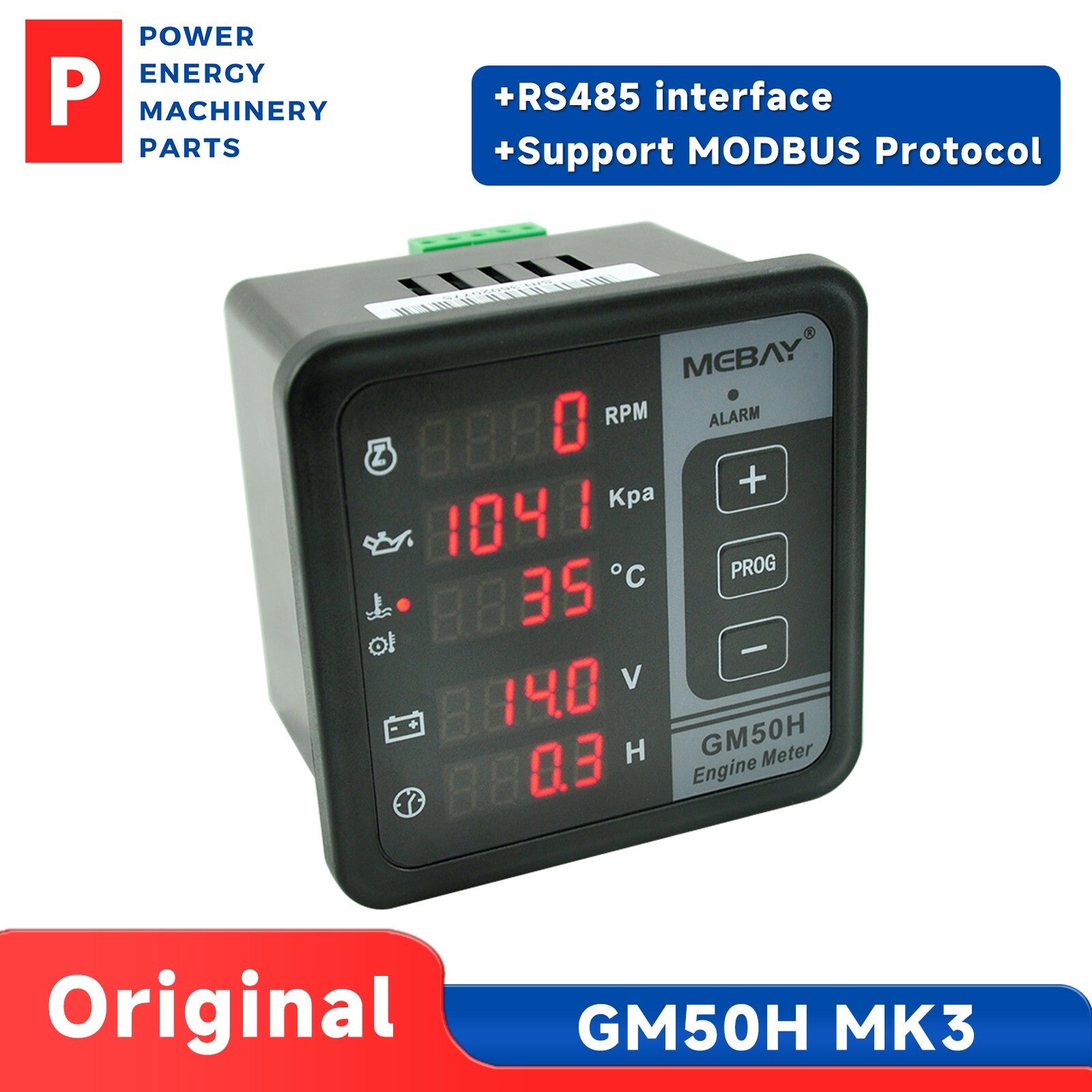

GM50HR MK3: Based on the functions of GM50H MK3, RS485 Port is added to support MODBUS Protocol.

  32bit high performance single chip microcomputer.

  5 screens high-light digital tube can demonstrate the parameters.

  Various kinds of protections.

  Input frequency is available to check RPM.

  Variety of sensor curves' parameters is set inside.

  Sensor curve can be self-defined by buttons.

  It has three analog input channels of sensors, among which the oil pressure sensor is compatible with voltage signal input;

  The parameters can be set and adjusted by the button on the front face.

  With RS485 port, remote data monitoring can be realized by using Modbus Protocol (only GM50HR has it);

  It has high current alarm relay, one normally open and one normally closed output, which is convenient for users to use;

  Standard coolant-proof rubber gasket. The coolant proof can reach IP54.

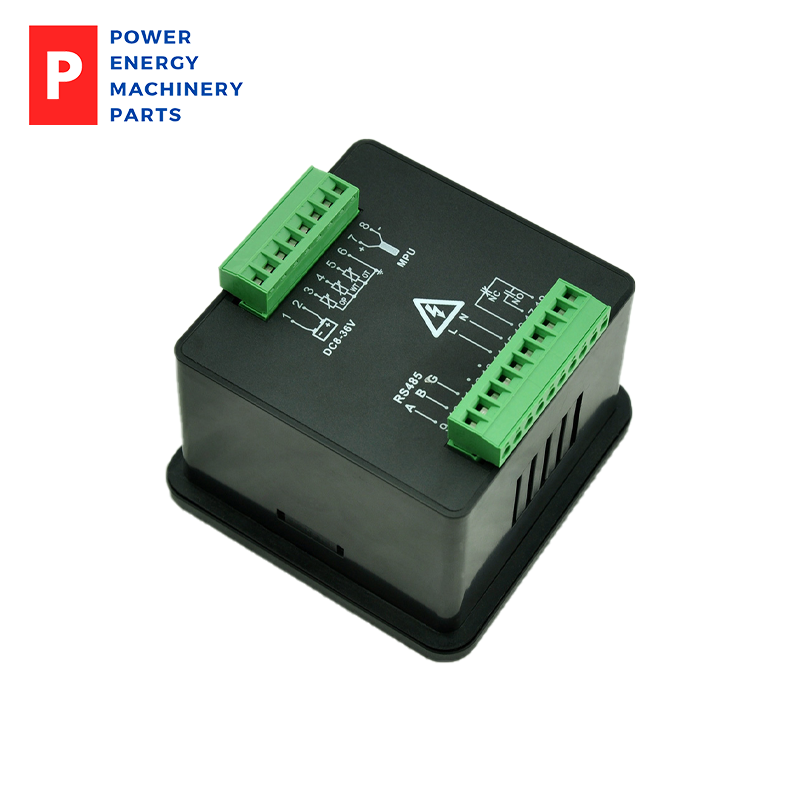

  All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.



3.Parameters Display

  Engine speed

  Engine oil pressure

  Engine coolant temperature

  Engine oil temperature

  Engine battery voltage

  Total running time



4.Protection

  Over speed

  Low oil pressure

  High coolant temperature

  High oil temperature

  Sensor open

  Battery under voltage warning



5.Parameters

Options	Parameters
Working voltage	DC8V----36V Continuous
Power consumption	Standby：24V：MAX 1W
	Working：24V：MAX 1.5W
AC Voltage Input	1P2W 50VAC-280VAC（45～70Hz）
Rotate speed sensor Frequency	50-10000Hz(AC3～65V)
MAX Accumulating Time	99999.9Hours（Min storage time:6min）
Relay Output	5AMP Non-contact normal open & normal close output
Working condition	-25-65℃
Storage condition	-40-85℃
Protection Level	IP54：when coolant proof  rubber gasket is added between meter and its panel
Insulation strength	Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

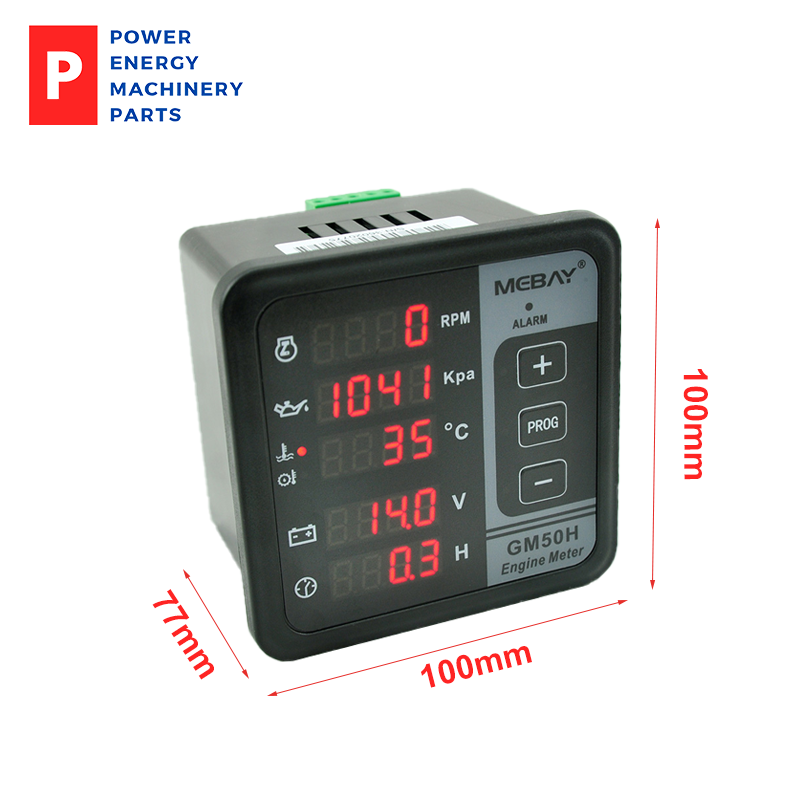

Overall dimension	100mm*100mm*77mm
Panel cutout	91mm*91mm
Weight	0.15Kg
