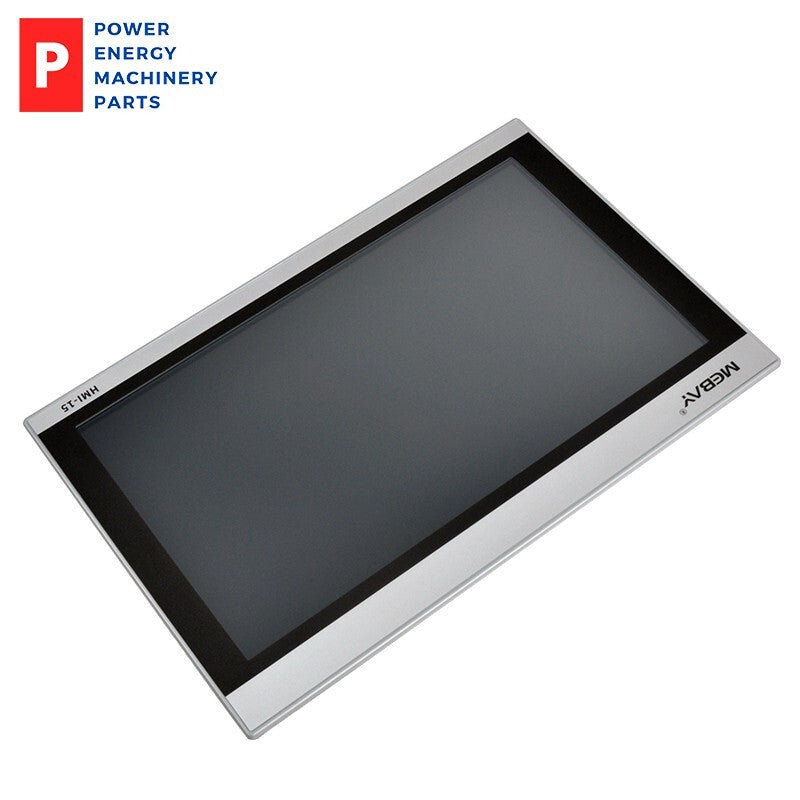

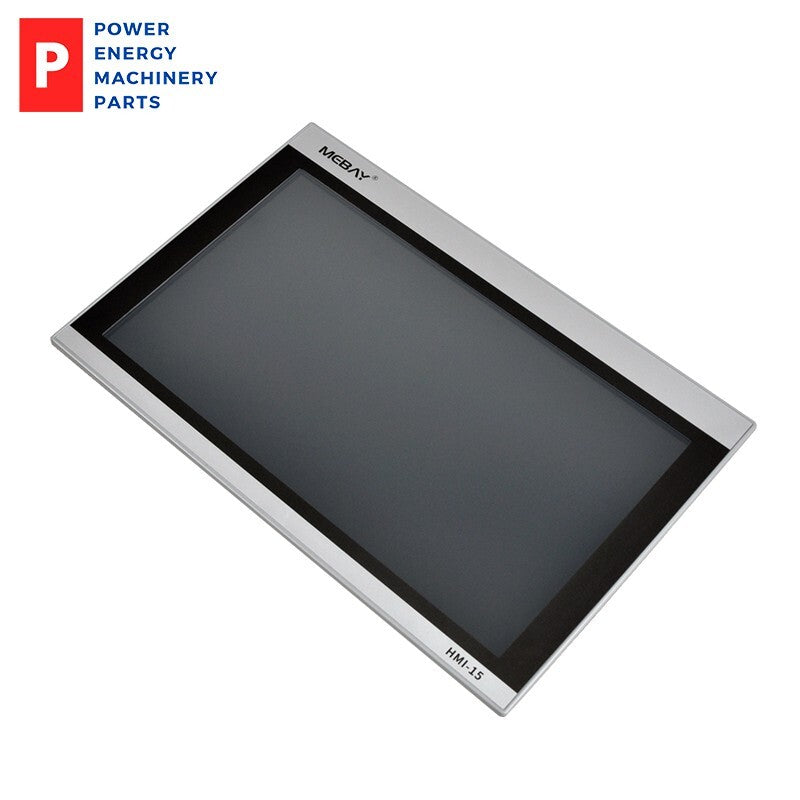

Original Genuine Mebay HMI-15 Diesel Generator Remote Monitoring Controller

Original Genuine Mebay HMI-15 Diesel Generator Remote Monitoring Controller


Summary

  HMI-15 is a reliable remote monitoring controller that can monitor multiple or single generator sets at the same time. It has the functions of data monitoring, alarm display, generator set start-up and shutdown.

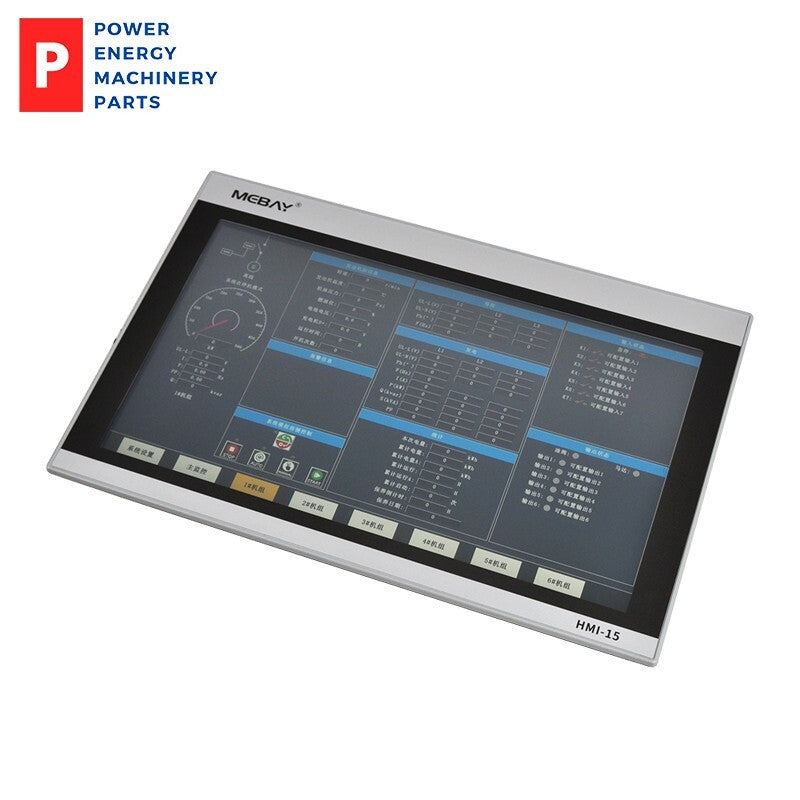

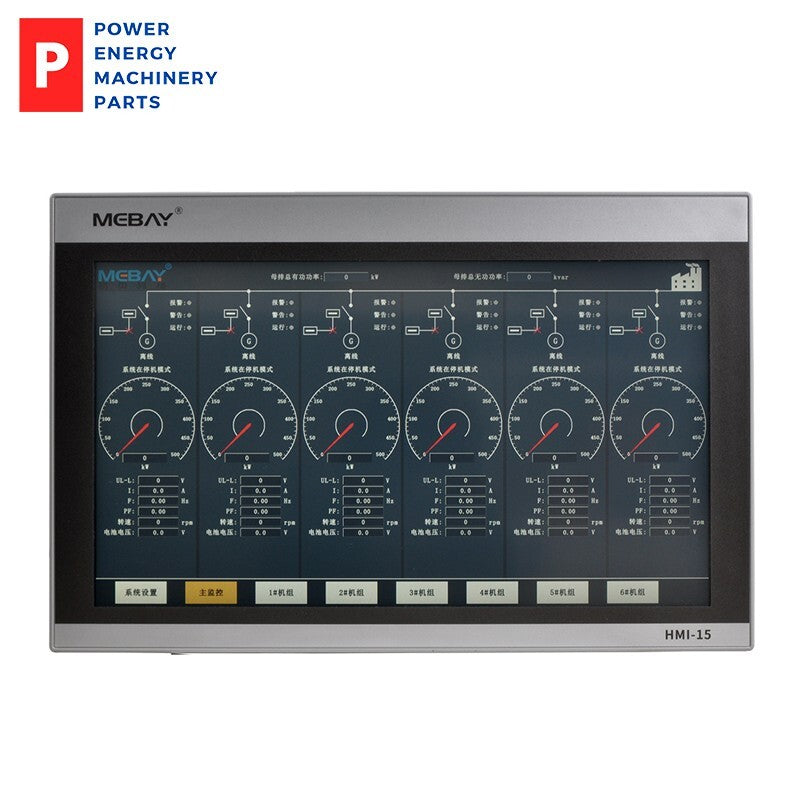

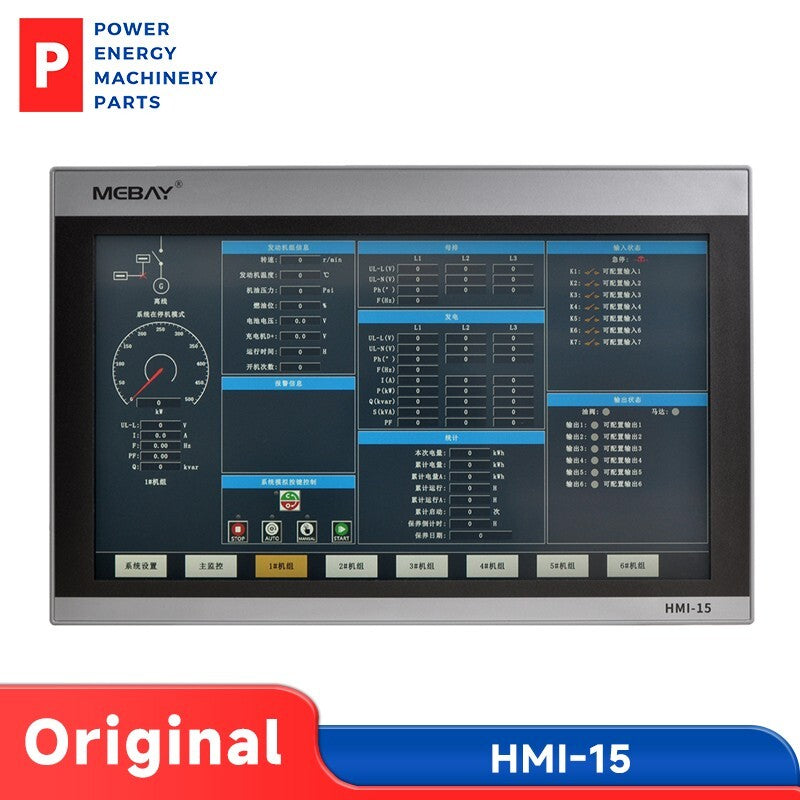

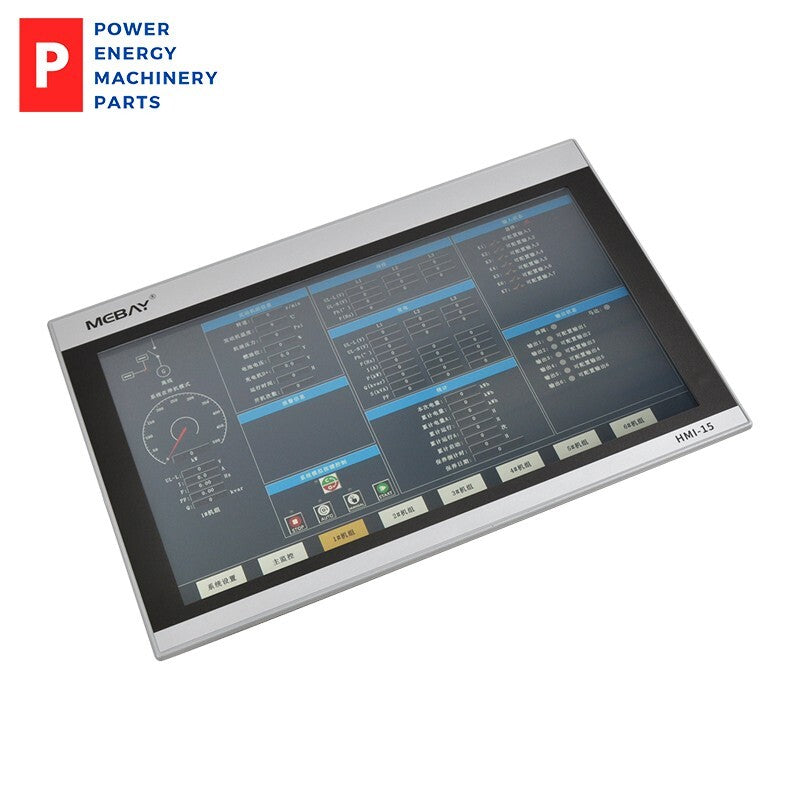

  HMI-15 controller adopts 15 inch 1920*1080 large screen high resolution LCD display. Brand new UI monitoring design, touch screen operation, LCD man-machine interface display.

  HMI-15 controller is designed with 4-core high-frequency processing, and communicates with DC100D MK2 generator set controller through RS485 interface. The parameters of the generator set can be directly read out through the communication interface and displayed on HMI-15 controller.

Main Features

  15 inch 1920*1080 large screen high resolution LCD display, user’s language set if necessary.

  One or up to six DC100D MK2 genset controllers can be monitored remotely.

  High-end ARM Cortex architecture microprocessor core, LCD man-machine interface display, touch screen operation.

  Real-time display of generator set parameters and alarm information detected by the DC100D MK2 controller.

  HMI-15 is able to control detailed parameters and keys operation of DC100DMK2 generator set controller.

  Possess operating authority settings to prevent non-professionals from misoperation and cause abnormal operation of the generator set and cause unnecessary accidents.

  With 1 USB ports, 1 LAN RJ45 port.

  A serial compatible interface (COM1_RS232, COM2_RS485, COM3_RS485)

  Standard water-proof rubber gasket. The waterproof can reach IP65.

  Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.

Parameters
