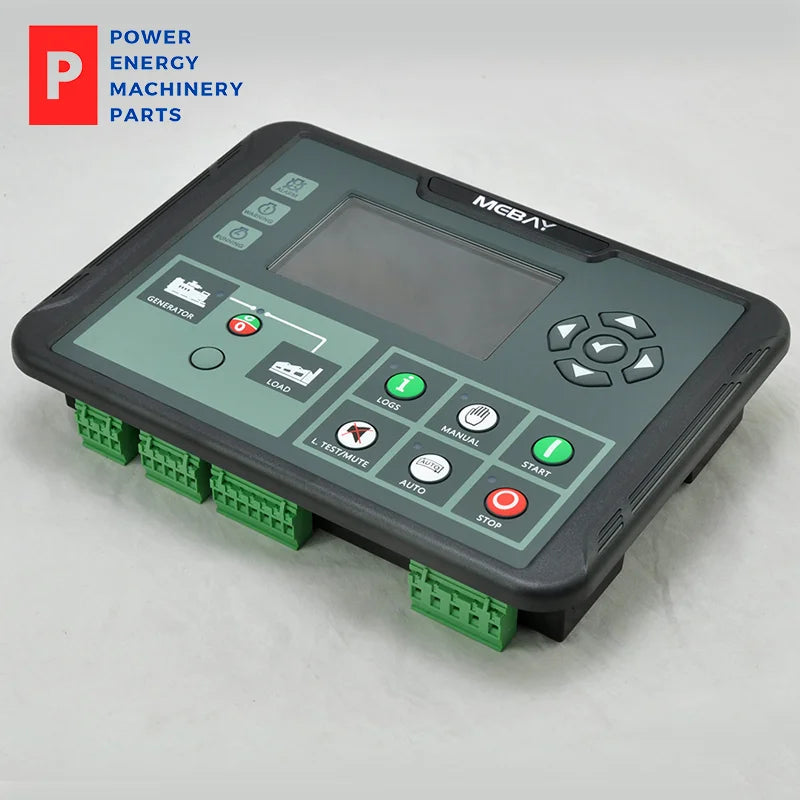

Original Genuine Mebay DC80DR MK3 Diesel Generator Controller Module LCD Display RS485 PC Monitoring Control Board
Original Genuine Mebay DC80DR MK3 Diesel Generator Controller Module LCD Display RS485 PC Monitoring Control Board
Regular price
$188.00 USD
Regular price
$0.00 USD
Sale price
$188.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Original Mebay DC80DR MK3 Start Stop Diesel Generator Controller Module RS485 Monitoring
Overview:
This series of controllers are designed for the start, stop, parameter monitoring and fault monitoring of generator sets and have parameter setting functions.
This controller uses a dot matrix LCD screen to display the relevant parameters of the generator set, and displays the relevant fault status through the LCD screen. It can effectively implement protective parking when the generator set is not working properly.
The controller uses LCD display, built-in simplified Chinese, English and other display interfaces are optional, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons or adjusted and monitored using a PC, and can be widely used in various types of generator set automation systems.
Overview:
This series of controllers are designed for the start, stop, parameter monitoring and fault monitoring of generator sets and have parameter setting functions.
This controller uses a dot matrix LCD screen to display the relevant parameters of the generator set, and displays the relevant fault status through the LCD screen. It can effectively implement protective parking when the generator set is not working properly.
The controller uses LCD display, built-in simplified Chinese, English and other display interfaces are optional, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons or adjusted and monitored using a PC, and can be widely used in various types of generator set automation systems.
Wide Application Range
Medium silent single diesel generator control cabinet, construction machinery single engine unit, light marine auxiliary genset, off-grid medium independent power supply equipment, generator repair shops and medium power distribution engineering projects that only need standalone genset automatic start-stop + remote centralized cloud monitoring without electronic injection ECU data reading and ATS automatic mains transfer requirements.
Product Specifications
- Brand: Mebay (Yokden)
- Model: DC80DR MK3
- Core Function: Upgraded standalone genset auto start-stop controller with isolated RS485 remote communication, substitute DeepSea DSE5220 base model, support local USB debug + remote cloud monitoring (No CAN J1939 ECU bus, No mains AMF sampling)
- DC Power Supply: DC8V~36V universal wide voltage for 12V/24V generator batteries
- AC Sampling: Single generator three-phase voltage and current monitoring, auto 50/60Hz frequency identification
- Communication Interfaces: Front USB Type-B local debug port + Rear isolated RS485 Modbus remote port (No CAN J1939 ECU bus)
- Display: 4.3-inch colorful TFT multi-language LCD dashboard
- Panel Cutout Size: 220 × 180 mm, overall dimension 241 × 172 × 57 mm
- Weight: 0.9kg
- Front Panel Protection Grade: IP54 dustproof & waterproof with silicone sealing gasket
- Operating Temperature: -25℃ ~ +65℃
- Warranty: 12 months genuine factory warranty
- Certifications: CE, ISO9001, EMC EN55032 IEC61000-4
