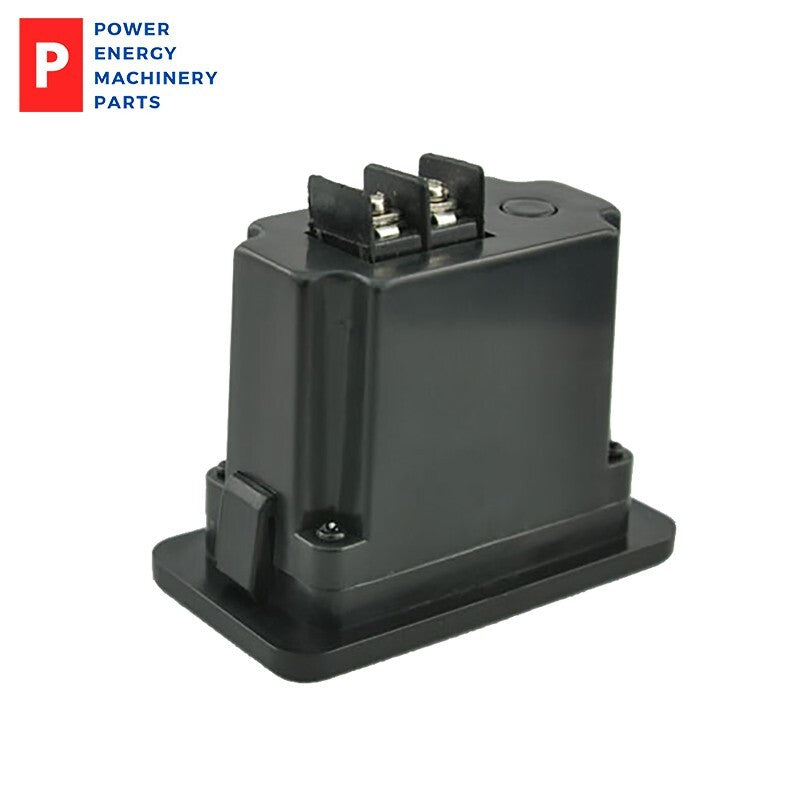

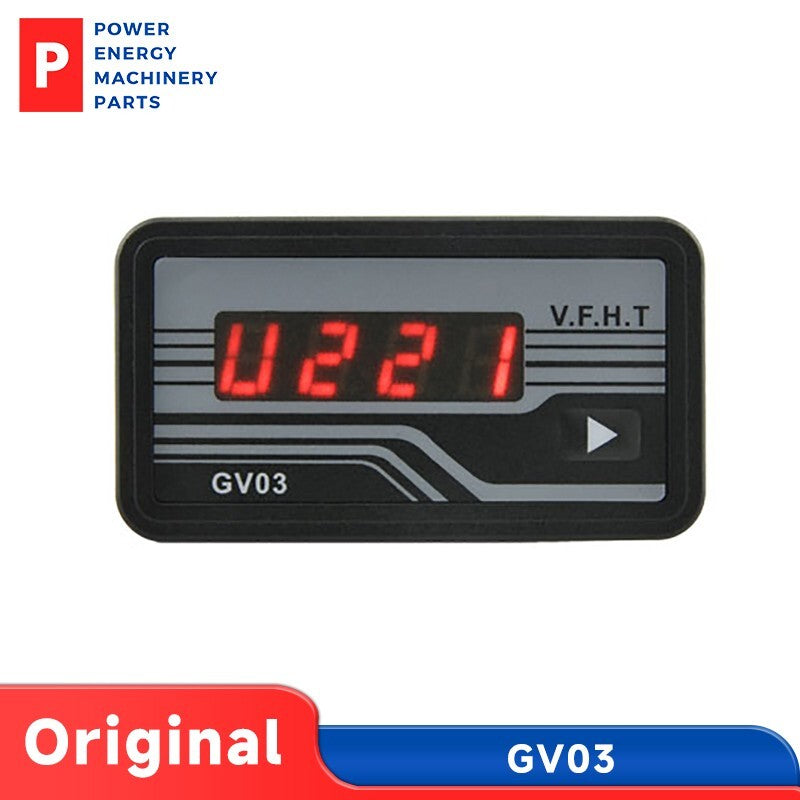

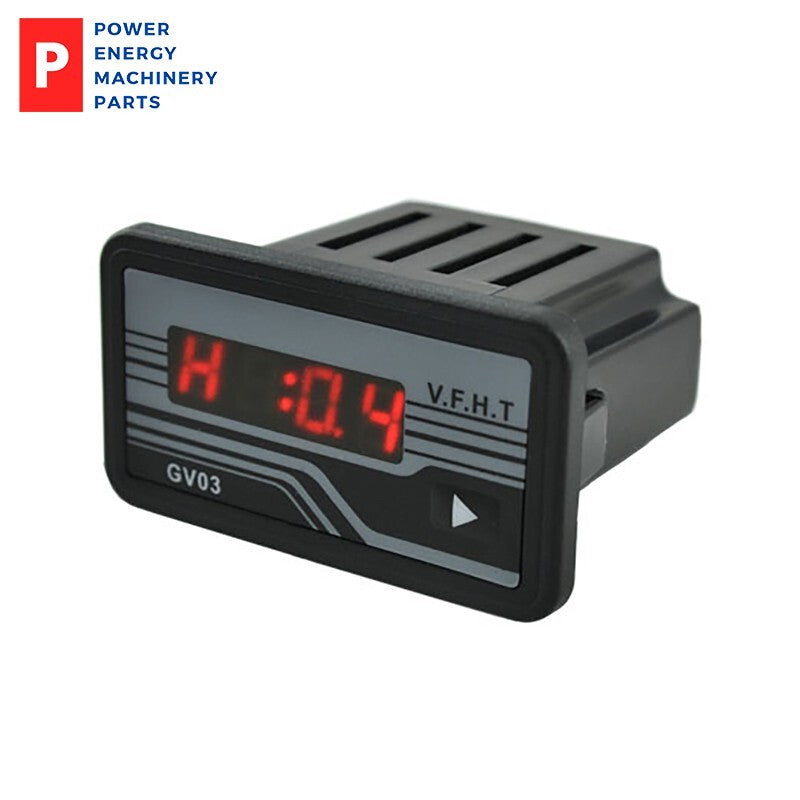

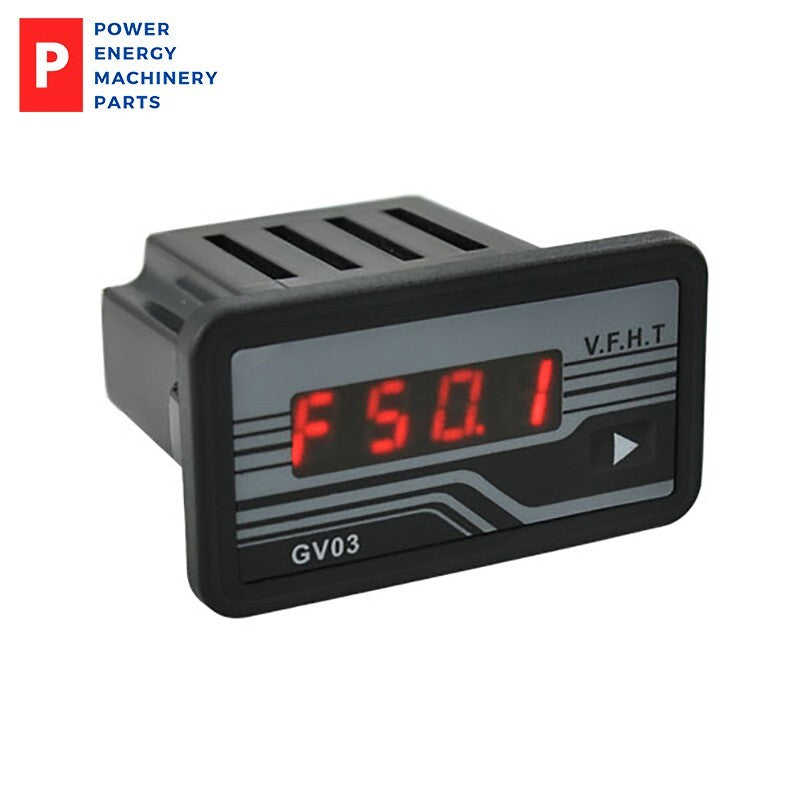

Original Generator Digital Display Voltmete Meter GV03 AC Input PEMP

Summary

  GV03 is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.



Features

  Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;

  Results shown by 4-position digital LED tube

  Self-recycling of parameters

  With Page Turning Buttons

  Extra working power is not needed



Parameter demonstration

  Phase voltage

  Frequency

  Run time

  Accumulating time



Range and accuracy

  AC voltage:Phase voltage AC165-260V,Line voltage AC300-450V；Deviation≦±1%

  Frequency:45-70HZ,deviation≦±0.5%

  Accumulated time:0-9999hours (min:0.1hours),deviation≦±1%.



Specification

  Power Supply: AC165～275V/ AC280～450V

  Consuming power:MAX：1 W

  Temperature: -40℃ ～ 75℃

  Size (W * H * D)：60mm * 33mm * 51mm

  Installation Size(W * H): 51mm * 26mm

  Weight:50g
