Original EC40CR Mebay Auto Start Controller Diesel Generator Engine Spare Parts

Summary

This controller is mainly used in engine control systems for water pumps, lighthouses, air compressors and engineering machinery types, applicable to stand-alone automatic control monitoring system, with remote start and stop, data measurement, alarm protection functions.

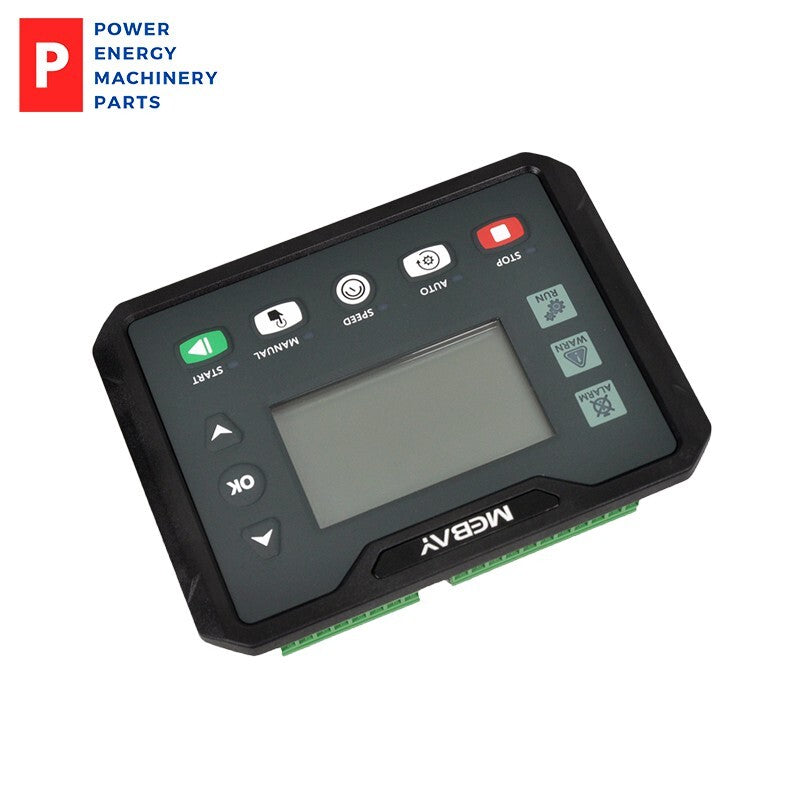

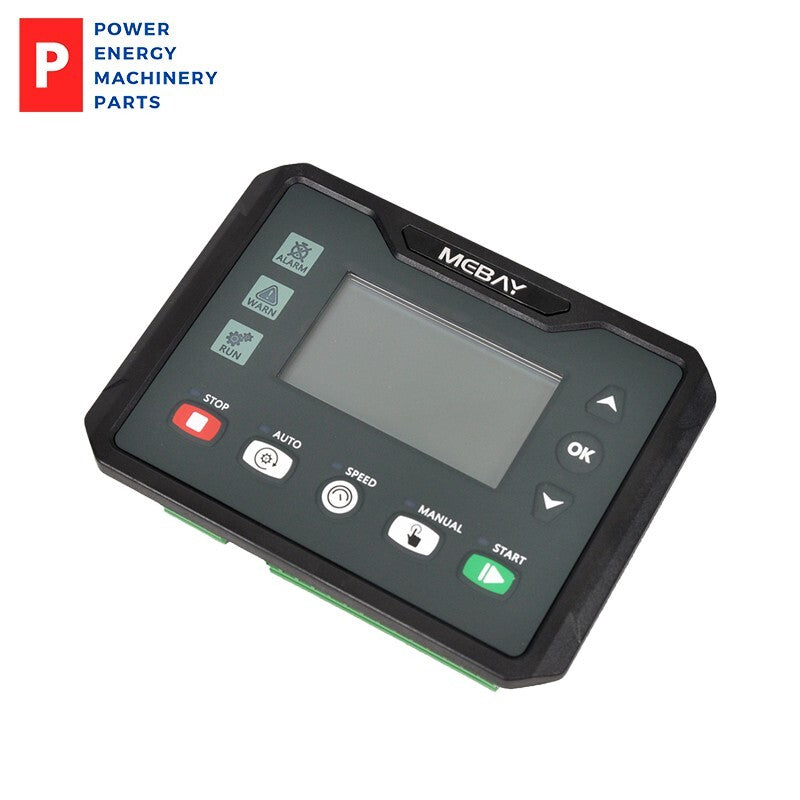

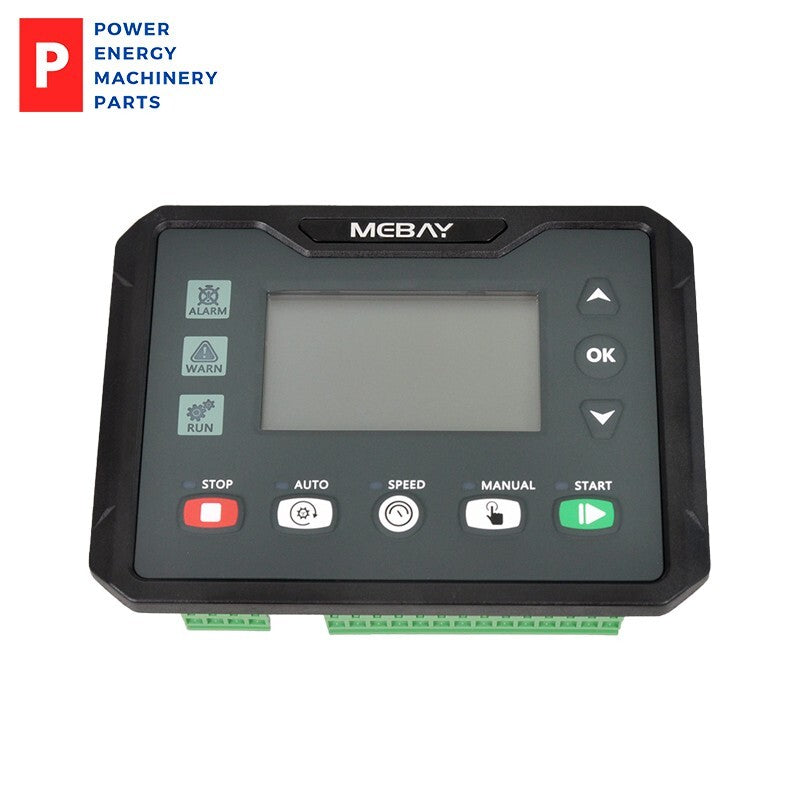

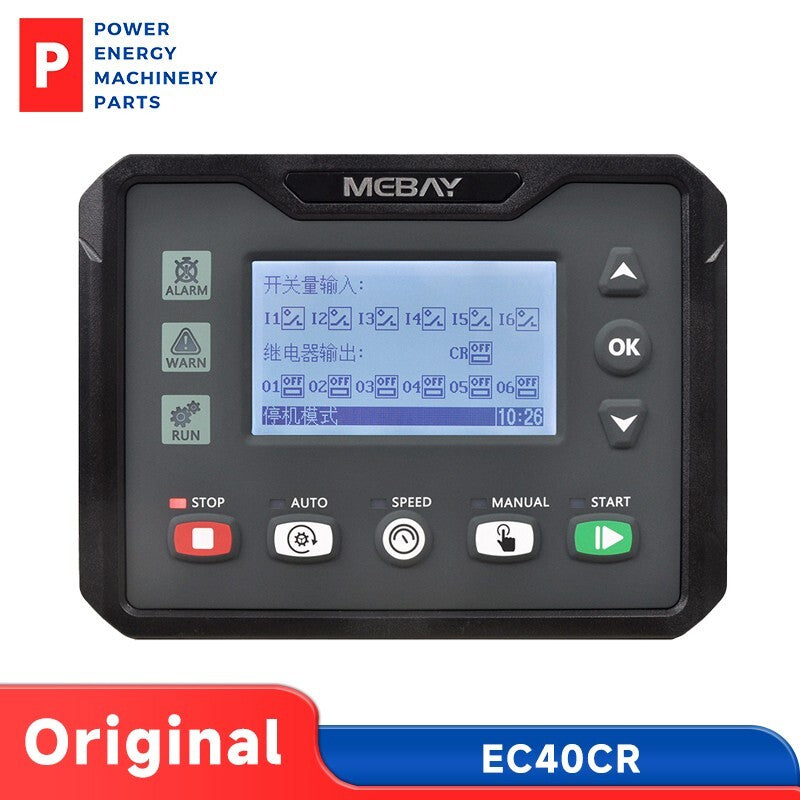

2.8 inch LCD screen display with brand new UI design is adapted in this controller can display related parameters directly. The LCD screen can display various faults at the same time. Once the unit does not run normally, it can effectively achieve protection.

There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC.

Main Features

u32bit high performance single chip microcomputer.

u2.8 inch LCD screen, It has 16 display languages including Chinese and English, user’s language set if necessary.

uIndicator and number display through UI surface.

uAcrylic material is adapted to protect the screen.

uSilicone panels, waterproof, oil-proof, UV-resistant, good operation feel and long service life.

uUSB Port: parameters can be set even without power through USD port to monitor in real time.

uWith RS485 communication port, can achieve "Three Remote" functions via MODBUS protocol.

uStandard CAN communication port, built-in J1939 protocol.

uVarious kinds of parameters display.

uInput/output function, status can be shown directly.

uMore categories of surface setting.

uReal time clock inside: auto maintenance is available.

uProtection countdown function, which can set the maintenance time or date.

uEquipped with black box function: capable of storing 100 sets of alarm records, including relevant parameters of the unit when a fault alarm occurs, facilitating the search for the cause of the fault;

uEquipped with event recording function: can save 5000 system operation logs;

uEquipped with operation record storage function: can save 5000 engine operation records for easy understanding of engine operation status;

uTotally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 80 functions.

uWith 6 switches input, up to 50 functions optional.

u6 sensor simulation input connectors, 3 input types is configurable and various kinds of units can be set.

uBattery charging control function,which can protect the battery according to battery voltage status.

uSensor can be self-defined by front face button or PC software.

uVarious of crank conditions (RPM, External input , Oil Pressure,) can be chosen.

uControl Protection: Auto Start/Stop of unit, perfect failure display and protection.

uStandard water-proof rubber gasket. The waterproof can reach IP65.

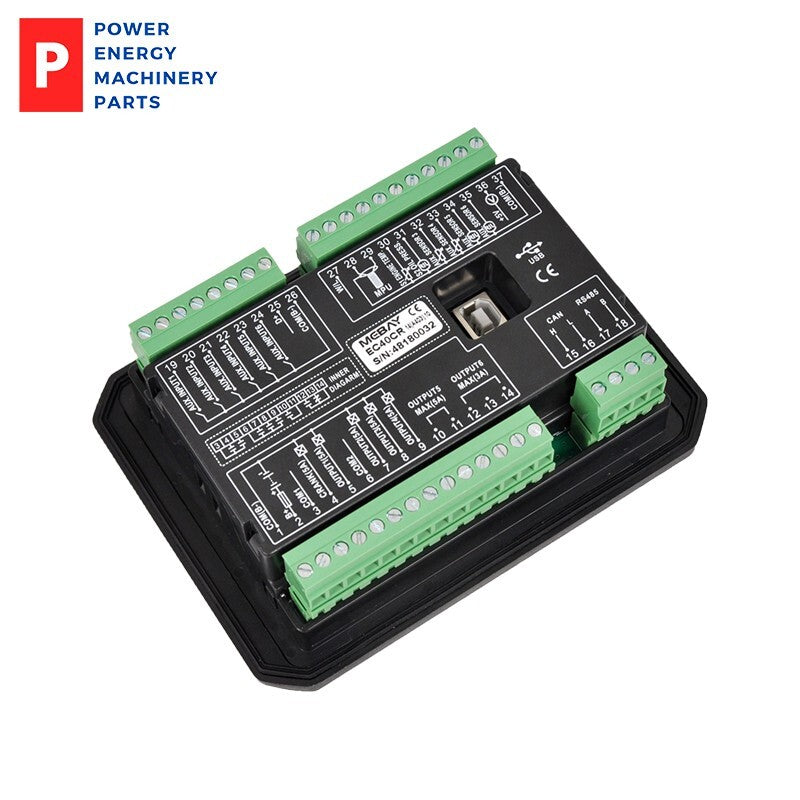

uModule design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
