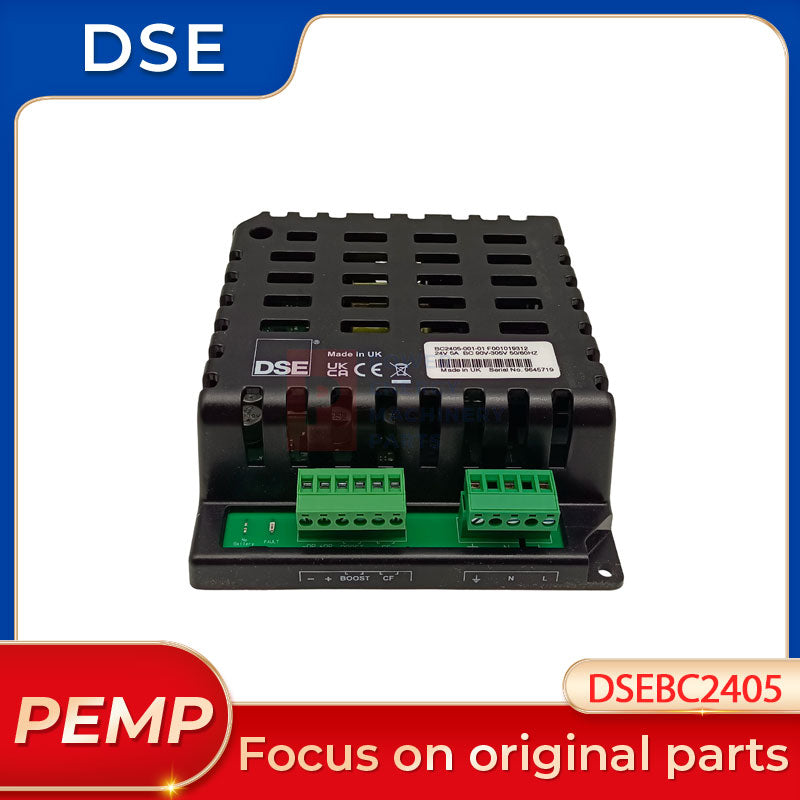

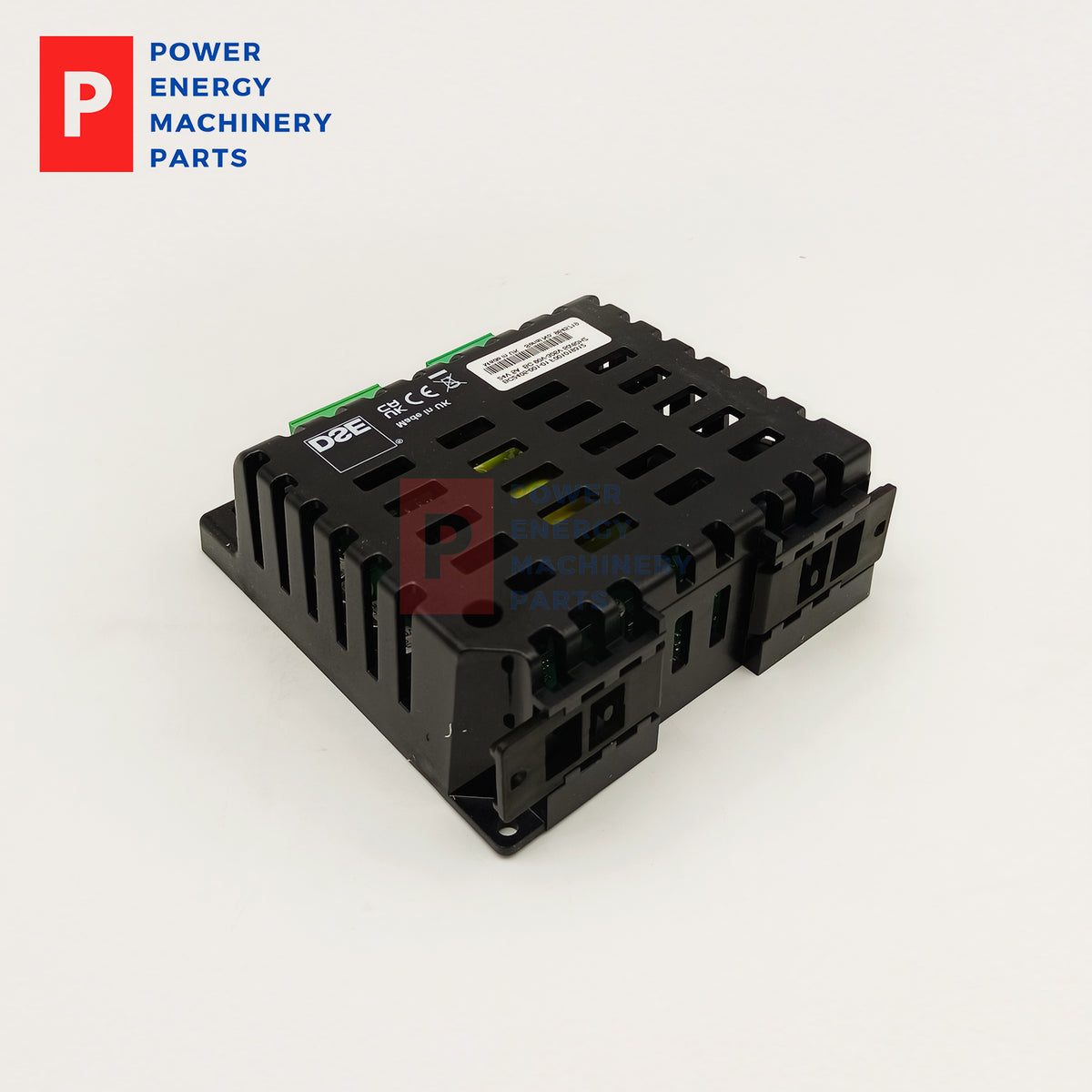

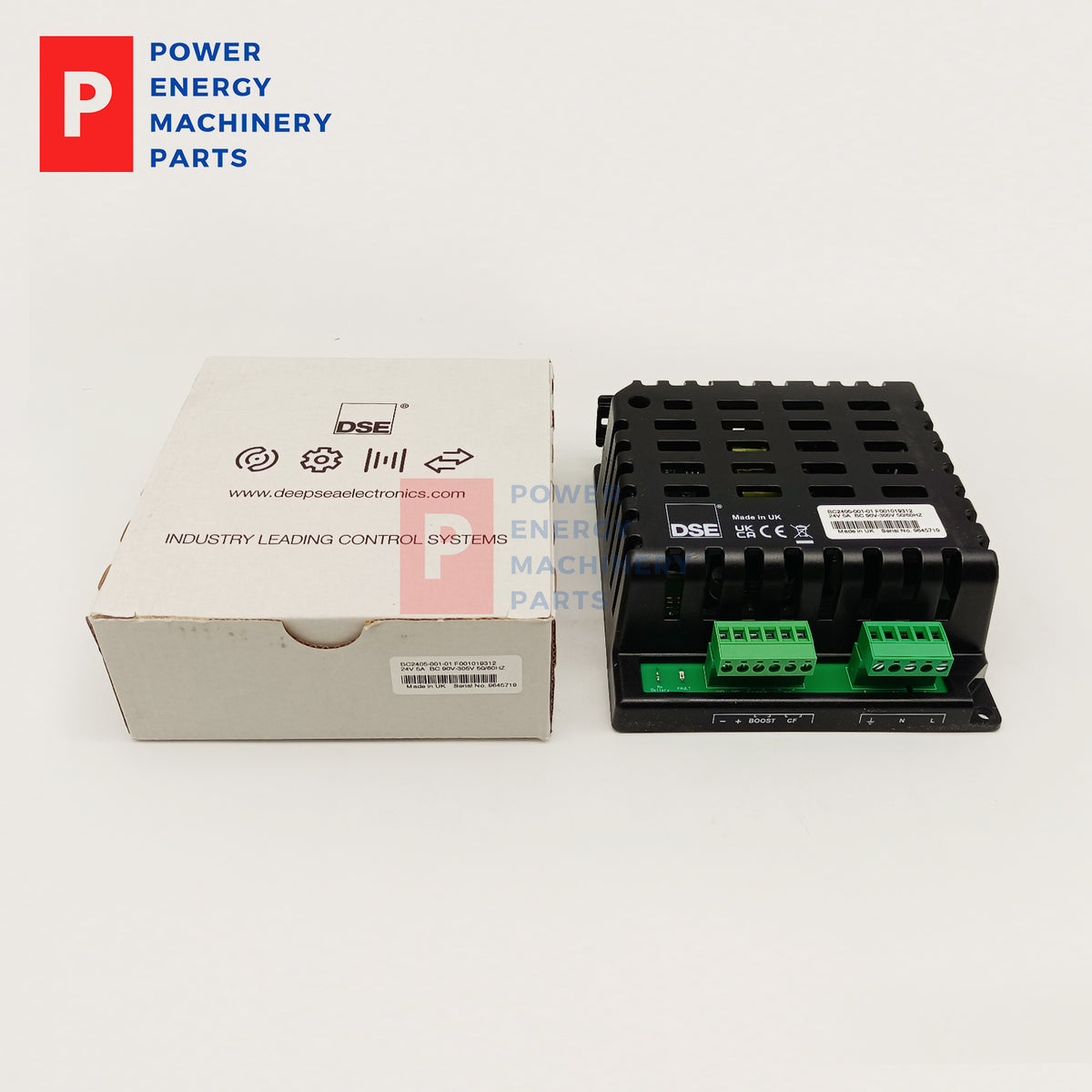

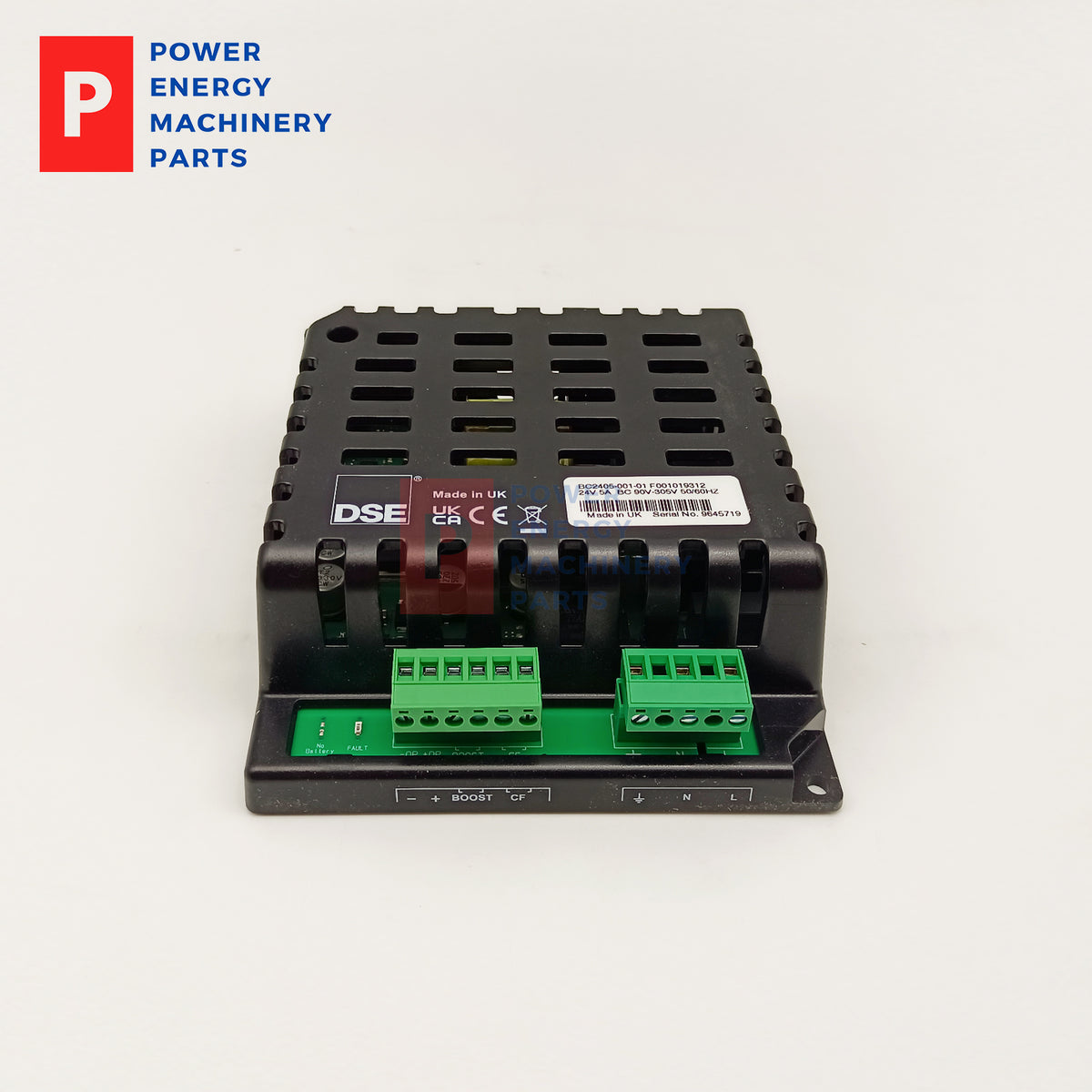

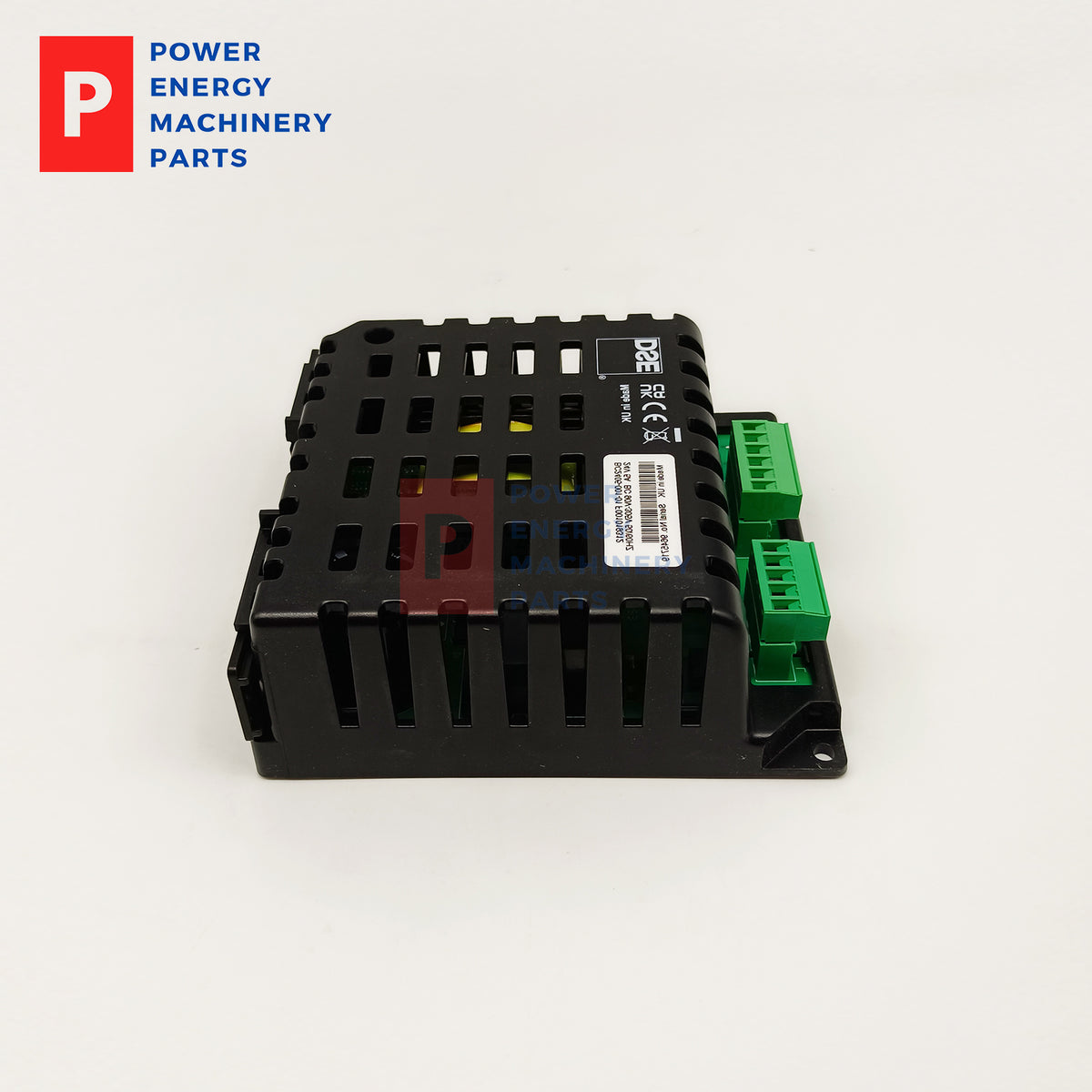

Original Deep Sea DSEBC2405 Replace DSE9701 DSE9255 Battery Charger Generator Set DSE BC2405 24V 5A
BC2405
24 Volt, 5 Amp Battery Charger
The DSEBC2405 is 24 V, 5 A switched-mode battery chargers with adjustable charging voltages, making them suitable for multiple different battery chemistry types. The battery charger output is adjusted via a potentiometer and is mounted direct to a chassis or onto DIN rail for ease of integration and installation. Its LED mounted to the battery charger to indicate current charger status and on the DSEBC2405-02 variants, battery connection status.
The battery charger has no moving parts, delivering additional durability and reliability, and continues to operate when the engine is running.
Dimensions
Overall (W x H x D) - 129.6 mm x 138.5 mm x 49 mm / 5.10 ” x 5.45 ” x 1.93 ”
Weight
0.42 kg (0.93 lb 14.81 oz)
Mounting
DIN Rail or Chassis Mounting
DIN Rail
35 mm
Chassis
Option One: 2 x M4 mounting holes with 140.8 mm / 5.54 ” centres
Option Two: 2 x M4 mounting holes with 128.4 mm x 119.4 / 5.05 “ x 4.70 “ centres
