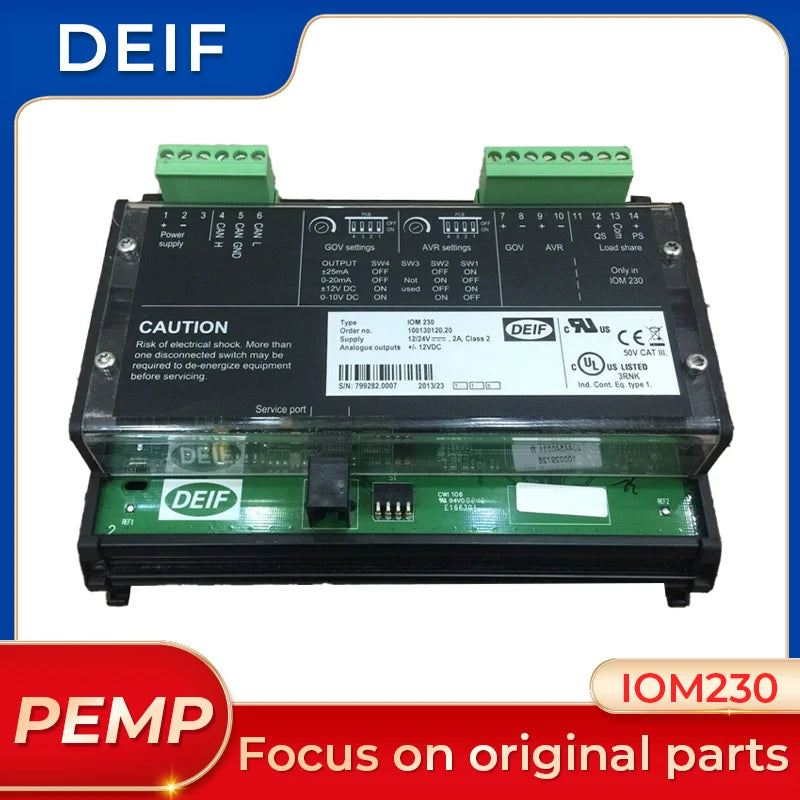

Original DEIF IOM230 Analog Interface Module CAN bus interface IOM 230 genset controller
Product Specifications
Brand: DEIF
Model: IOM230
Core Function: CAN‑bus analog interface expansion module with P‑share Q‑share load‑sharing, upgraded version of IOM220
Working Power Supply: 12‑24 V DC (reverse polarity protected)
Communication: Isolated CAN‑bus for AGC‑4 Mk II / AGC150 / AGC200
Analog Output: GOV, AVR configurable analog signals; P‑share Q‑share‑5~+5 V DC load‑sharing outputs
Debug Interface: Internal TTL service port for firmware & calibration
Mounting: Standard DIN‑rail mounting
Protection Grade: IP30 (cabinet indoor installation)
Operating Temperature: ‑25℃ ~ +70℃
Warranty: 12‑month genuine factory warranty
