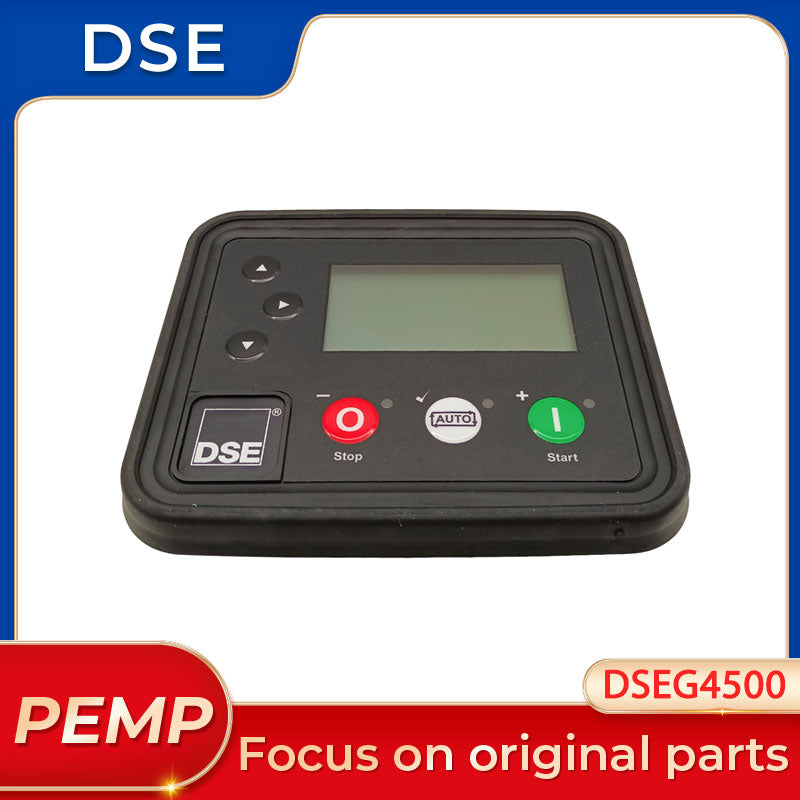

Original Deep Sea DSEG4500 Compact Single Genset Controller AMF & Remote Start Genset Control Module
Original Deep Sea DSEG4500 Compact Single Genset Controller AMF & Remote Start Genset Control Module
Regular price
$512.00 USD
Regular price
$0.00 USD
Sale price
$512.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

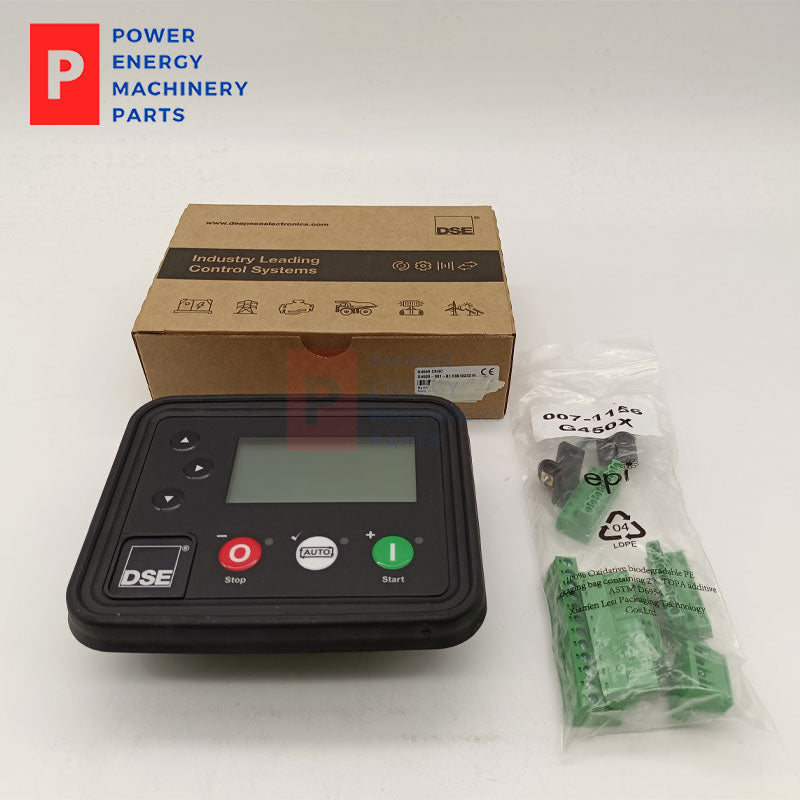

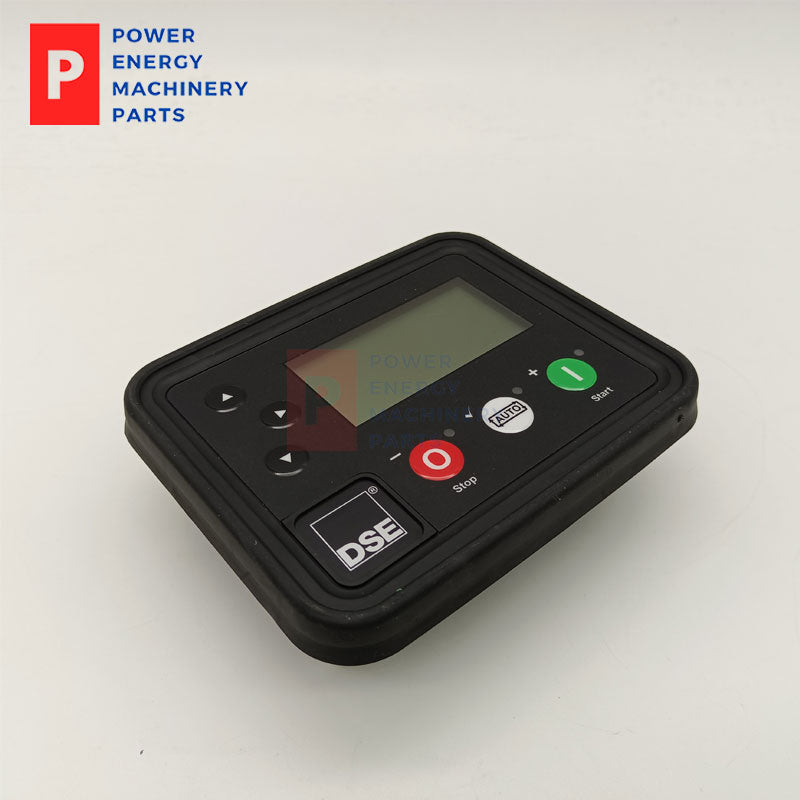

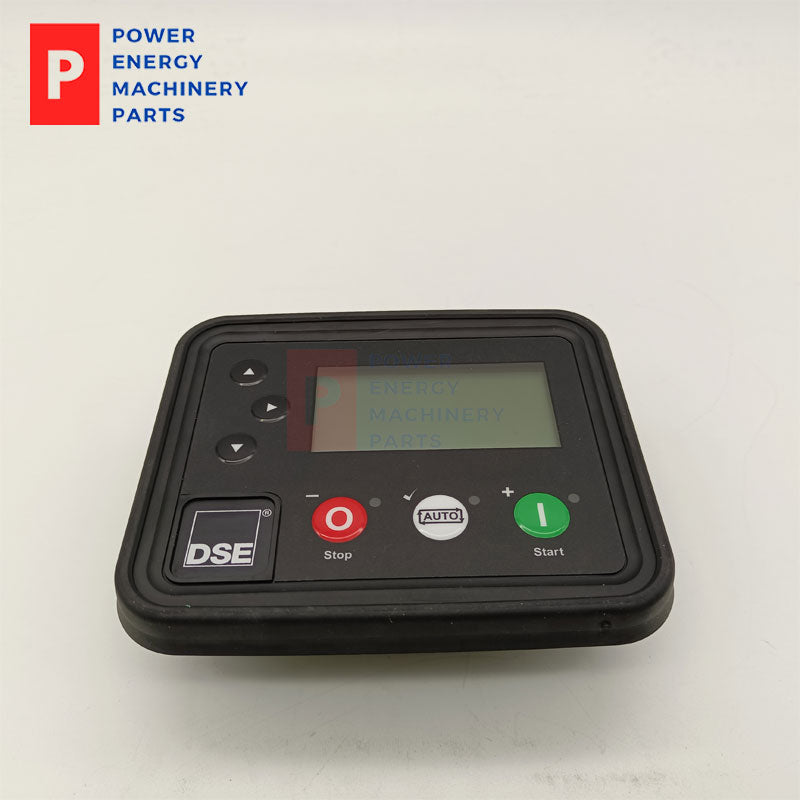

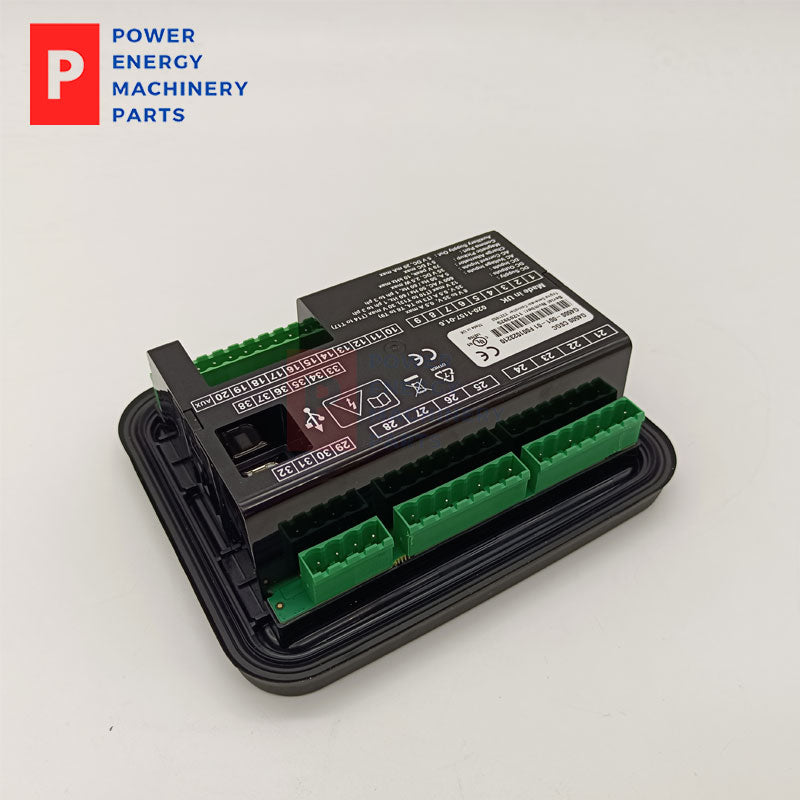

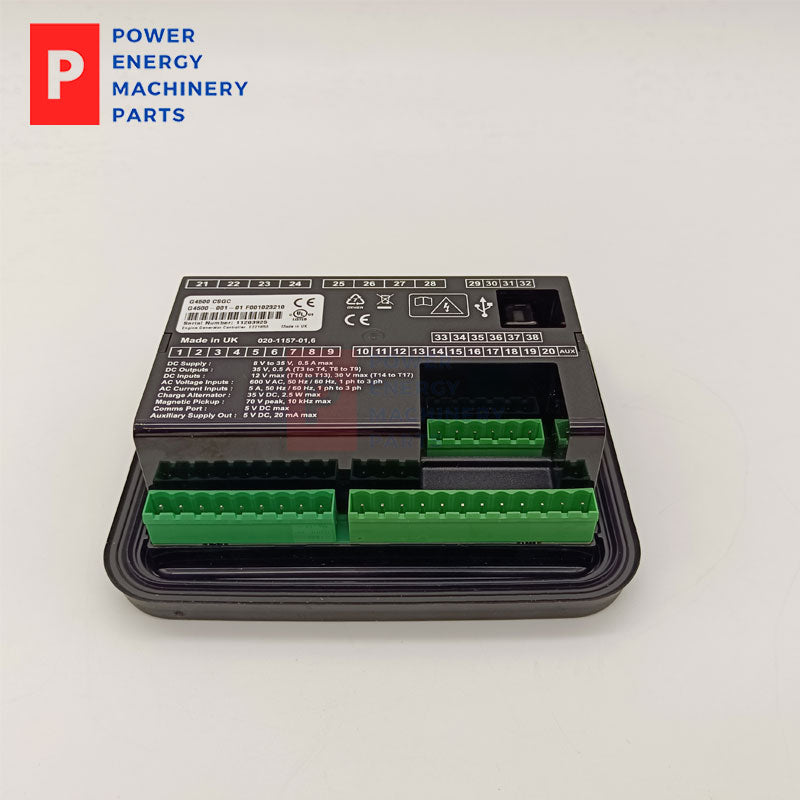

Genuine Deep Sea DSEG4500 Compact Single Genset Controller G4500-01 Configurable AMF / Remote Start G-Series Generator Control Module
Overview
The DSEG4500 Compact Single Genset Controller and DSEG4501 Compact Single Genset Controller with RS485 are part of the next-generation DSEG-Series platform, designed for versatility and performance. User-configurable for Remote Start (RS) or Automatic Mains (Utility) Failure (AMF) applications, they offer a robust feature set tailored to single genset operations.
The DSEG4500 Compact Single Genset Controller and DSEG4501 Compact Single Genset Controller with RS485 are part of the next-generation DSEG-Series platform, designed for versatility and performance. User-configurable for Remote Start (RS) or Automatic Mains (Utility) Failure (AMF) applications, they offer a robust feature set tailored to single genset operations.
Selected features include real-time monitoring of generator and load power, engine speed, oil pressure, coolant temperature, frequency, voltage, current, power, and fuel level. All critical data is displayed on a dedicated multi-line, text and icon high-resolution screen.
The DSEG4500 support both electronic J1939 (CAN) and non-electronic (alternator frequency sensing) engines, making them compatible with a wide range of fuel types including diesel, gas, and petrol. A generous number of flexible inputs, outputs, and protection features ensure adaptability for diverse applications.
Specification
- Model: DSEG4500 (G4500-01)
- Brand: Deep Sea Electronics (DSE), Series: DSEG G4 Series
- Type: Compact Single Genset Controller
- Operation Mode: Configurable Remote Start (RS) / AMF Mains Failure
- Power Supply: 8V – 35V DC continuous, reverse polarity protected
- Cranking Dropout: Survive 0V cranking dip
- AC Sensing: True RMS 3-phase voltage, current, power metering
- Speed Sensing: CAN J1939, alternator frequency
- Supported Engine: Diesel, gas, petrol engine
- Protection: Overspeed, low oil pressure, high coolant temp, low fuel, overload, voltage & frequency fault, first fault capture
- Communication: USB (DSEG4501 = USB + RS485 Modbus RTU)
- Panel Cut-out: 118 mm x 92.0 mm (4.65 ” x 3.62 ”)
- Overall Dimension: 142.6 mm x 118.6 mm x 48.5 mm ( 5.61 ” x 4.66 ” x 1.91”）
- Max Panel Thickness: 5 mm ( 0.19”)
- Operating Temp: -30°C ~ +70°C
- Application: Standby backup genset, rental diesel generator, commercial ATS panel, off-grid prime power, gas generator set
- Warranty: 12 months genuine factory warranty
