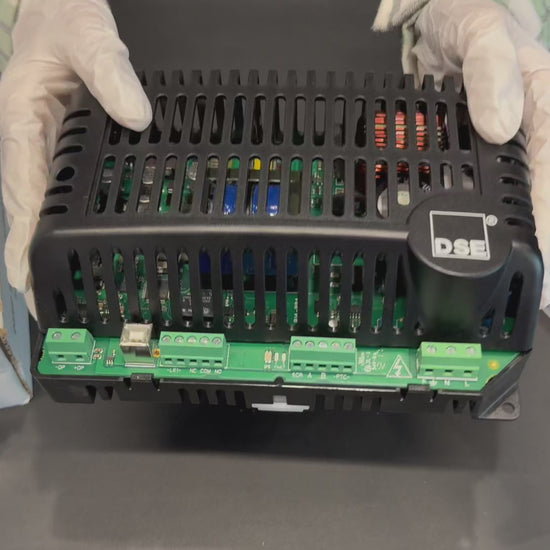

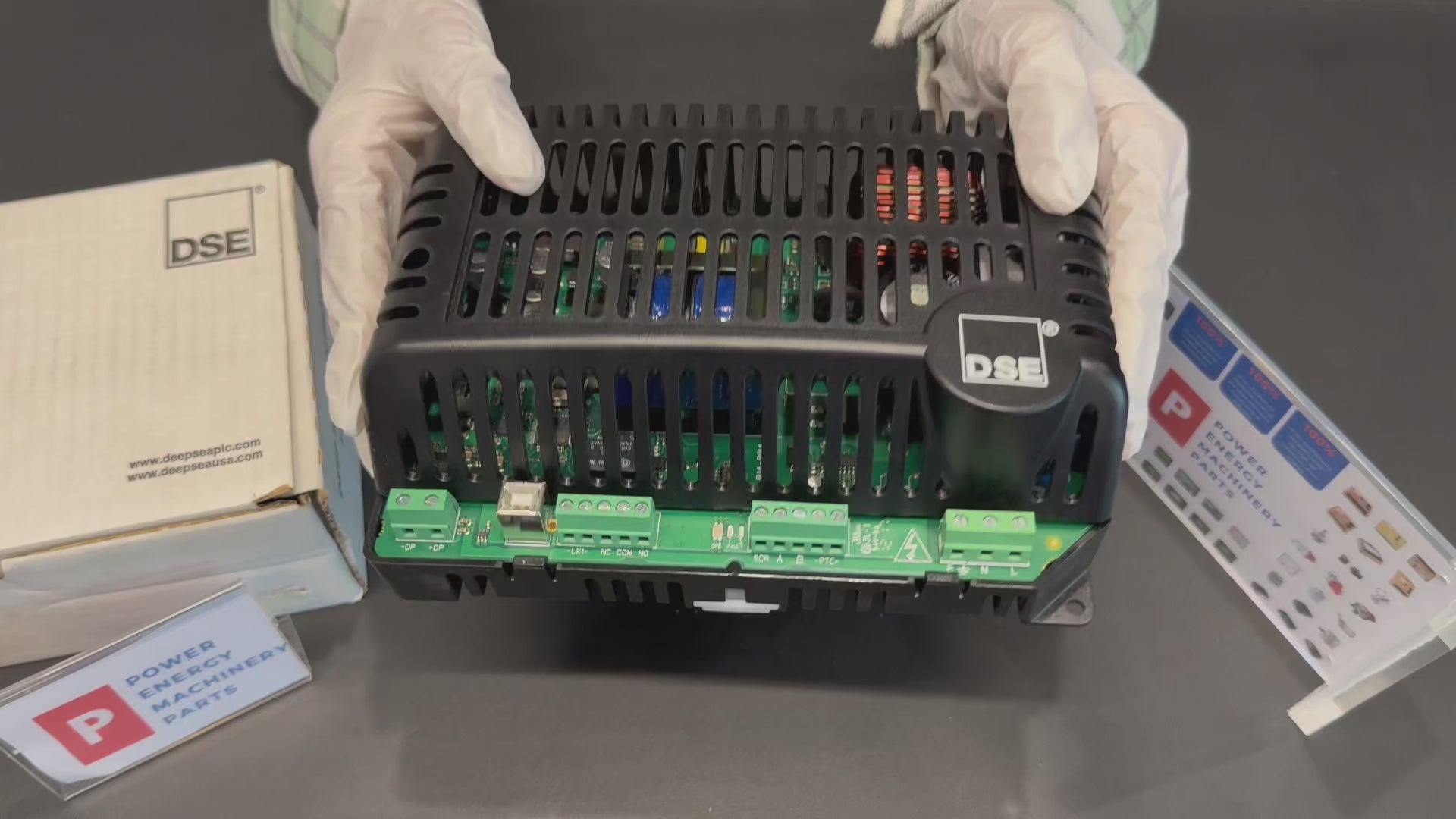

Original Genuine Deep Sea DSE9483 Intelligent Battery Charger UK Generator Spare Parts DSE 9483
DSE9483
12 volt 15 amp Intelligent Battery Charger
Overview
The DSE 9483 is an intelligent 12 volt, 15 amp switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be Chassis or DIN Rail mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.
The DSE 9483 is an intelligent 12 volt, 15 amp switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be Chassis or DIN Rail mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.
Specification
- Model: DSE9483
- Brand: Deep Sea Electronics (DSE), Series: DSEPower 9400
- Type: Intelligent Switch-Mode Battery Charger
- AC Input: 95–305V AC, 48–64Hz
- DC Output: 12V DC, 15A continuous
- Communication: Configurable via DSE Configuration Suite
- Protection: Short circuit, over current, over voltage, reverse polarity, over temperature, AC under/over voltage
- Operating Temp: -30°C ~ +70°C (output derate at high temperature)
- Dimension: 80 mm x 205 mm x 135 mm (3.1" x 8.1" x 5.3")
- Net Weight: 0.88kg
- Compatible Battery: 12V lead-acid battery
- Application: 12V diesel generator, marine power, fire pump, industrial standby battery charging
- Warranty: 12 months genuine factory warranty
