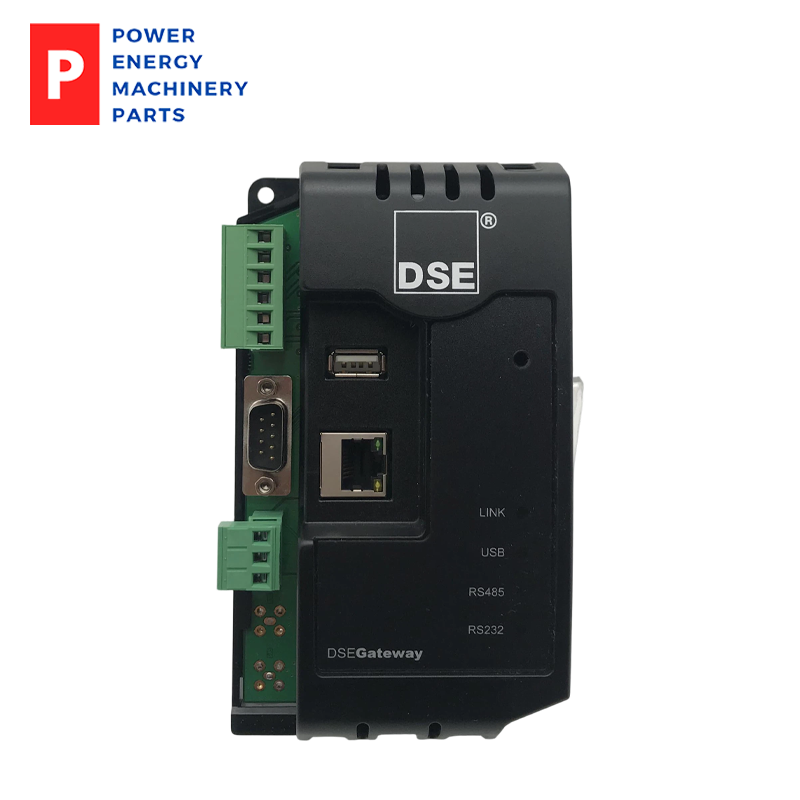

Original Deep Sea DSE892 Simple Network Management Protocol (SNMP) Gateway DSE 892 Automatic Controller Genset Module
Original Deep Sea DSE892 Simple Network Management Protocol (SNMP) Gateway DSE 892 Automatic Controller Genset Module
Regular price
$735.00 USD
Regular price
$0.00 USD
Sale price
$735.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Original Deep Sea DSE892 Simple Network Management Protocol (SNMP) Gateway Automatic Controller Genset Module DSE 892
DSE892
Simple Network Management Protocol (SNMP) Gateway
The DSE892 connects DSE control modules to external SNMP systems. Once a connection is made full monitoring and control functionality becomes active. The gateway device specialises in monitoring the instrumentation and operating state of the connected DSE control module.
OVERALL SIZE: 85 mm x 149 mm x 51 mm (3.3” x 5.8” x 2.0”)
NET WEIGHT: 0.24kg
PRODUCT VARIANTS: 0892-01 - 892 Simple Management Network Protocol (SMNP) Gateway
NET WEIGHT: 0.24kg
PRODUCT VARIANTS: 0892-01 - 892 Simple Management Network Protocol (SMNP) Gateway
SPECIFICATION：
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout
and supply recovers to 8 V. This is
achieved without the need for internal
batteries. LEDs and backlight will not be
maintained during cranking.
MAXIMUM OPERATING CURRENT
200 mA at 12 V
110 mA at 24 V
MAXIMUM STANDBY CURRENT
150 mA at 12 V
90 mA at 24 V
COMMUNICATIONS
USB (Single DSE Controller)
RS232 (Single DSE Controller)
RS485 (Multiple DSE Controllers)
Ethernet (Multiple DSE Controllers)
Ethernet SNMP & SMTP
DIMENSIONS
OVERALL
85 mm x 149 mm x 51 mm
3.3” x 5.8” x 2.0”
MOUNTING
DIN Rail
Chassis Mounting
OPERATING TEMPERATURE RANGE：-30°C to +70°C
STORAGE TEMPERATURE RANGE: -40°C to +80°C
KEY FEATURES
• Supports a wide range of DSE controllers
• Status LEDs for each communications port
• Plug and socket connections and DIN rail mounting for quick and easy set up
• Email / SNMP TRAP messages upon controller events and operating status change
• Fully customisable Email / SNMP TRAPs based upon module instrumentation values
• SNMP SET to change controller mode
• SNMP GET for instrumentation
• Simple configuration via internet browser – No additional PC software required
KEY BENEFITS
• Compatible with SNMP V2c specification to suit a wide range of third party SNMP management systems
• A single DSE892 SNMP Gateway can be connected to multiple controllers
• Allows integration of the DSE controller into SNMP management systems. In addition to the state of the Generator and/or Mains Supply, this can include for example third party UPS, Fire Alarms and Security Systems
• Monitoring of controller state, operating mode and alarms
• Connection diagnostics and basic instrumentation via web browser
• Configuration file upload and download for easy set up
• Firmware upgradeable direct via USB memory stick or OTA (Over the Air) from DSE server
• Automatically generated MIB file to ease system integration, downloadable directly from the DSE892
• Email by SMTP client
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout
and supply recovers to 8 V. This is
achieved without the need for internal
batteries. LEDs and backlight will not be
maintained during cranking.
MAXIMUM OPERATING CURRENT
200 mA at 12 V
110 mA at 24 V
MAXIMUM STANDBY CURRENT
150 mA at 12 V
90 mA at 24 V
COMMUNICATIONS
USB (Single DSE Controller)
RS232 (Single DSE Controller)
RS485 (Multiple DSE Controllers)
Ethernet (Multiple DSE Controllers)
Ethernet SNMP & SMTP
DIMENSIONS
OVERALL
85 mm x 149 mm x 51 mm
3.3” x 5.8” x 2.0”
MOUNTING
DIN Rail
Chassis Mounting
OPERATING TEMPERATURE RANGE：-30°C to +70°C
STORAGE TEMPERATURE RANGE: -40°C to +80°C
KEY FEATURES
• Supports a wide range of DSE controllers
• Status LEDs for each communications port
• Plug and socket connections and DIN rail mounting for quick and easy set up
• Email / SNMP TRAP messages upon controller events and operating status change
• Fully customisable Email / SNMP TRAPs based upon module instrumentation values
• SNMP SET to change controller mode
• SNMP GET for instrumentation
• Simple configuration via internet browser – No additional PC software required
KEY BENEFITS
• Compatible with SNMP V2c specification to suit a wide range of third party SNMP management systems
• A single DSE892 SNMP Gateway can be connected to multiple controllers
• Allows integration of the DSE controller into SNMP management systems. In addition to the state of the Generator and/or Mains Supply, this can include for example third party UPS, Fire Alarms and Security Systems
• Monitoring of controller state, operating mode and alarms
• Connection diagnostics and basic instrumentation via web browser
• Configuration file upload and download for easy set up
• Firmware upgradeable direct via USB memory stick or OTA (Over the Air) from DSE server
• Automatically generated MIB file to ease system integration, downloadable directly from the DSE892
• Email by SMTP client
