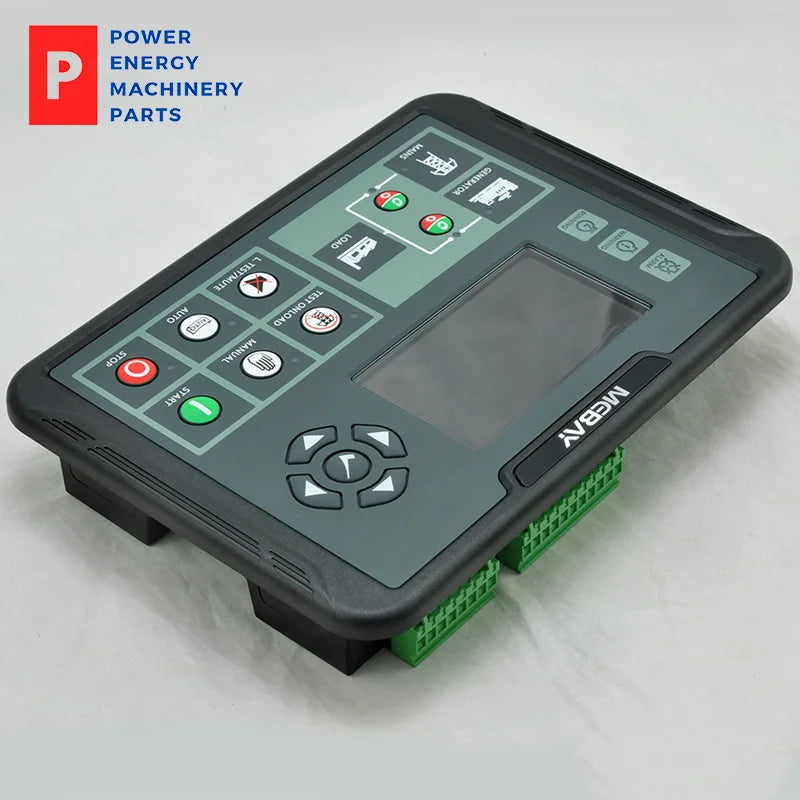

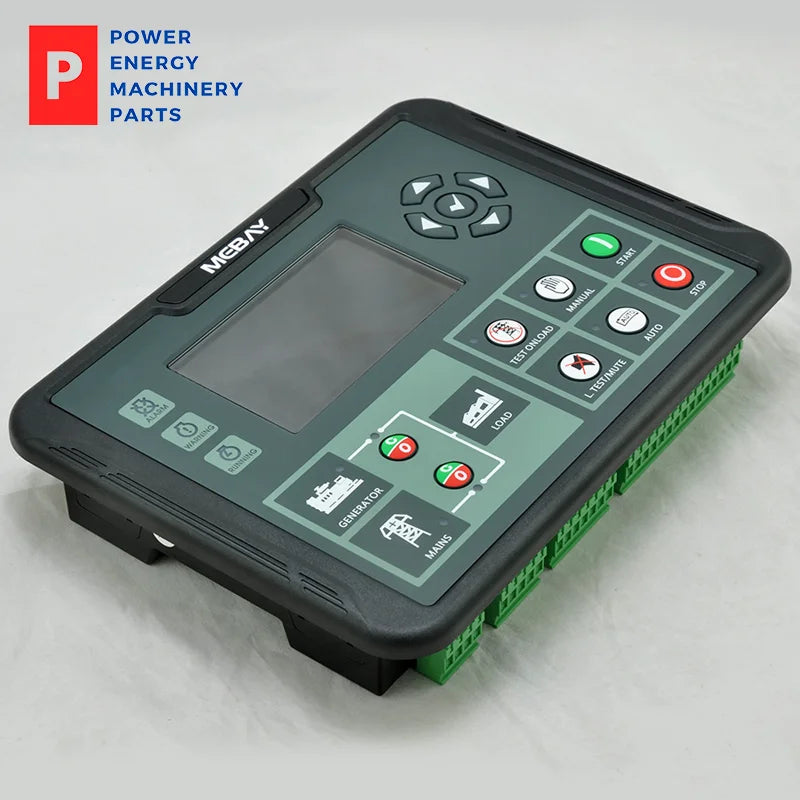

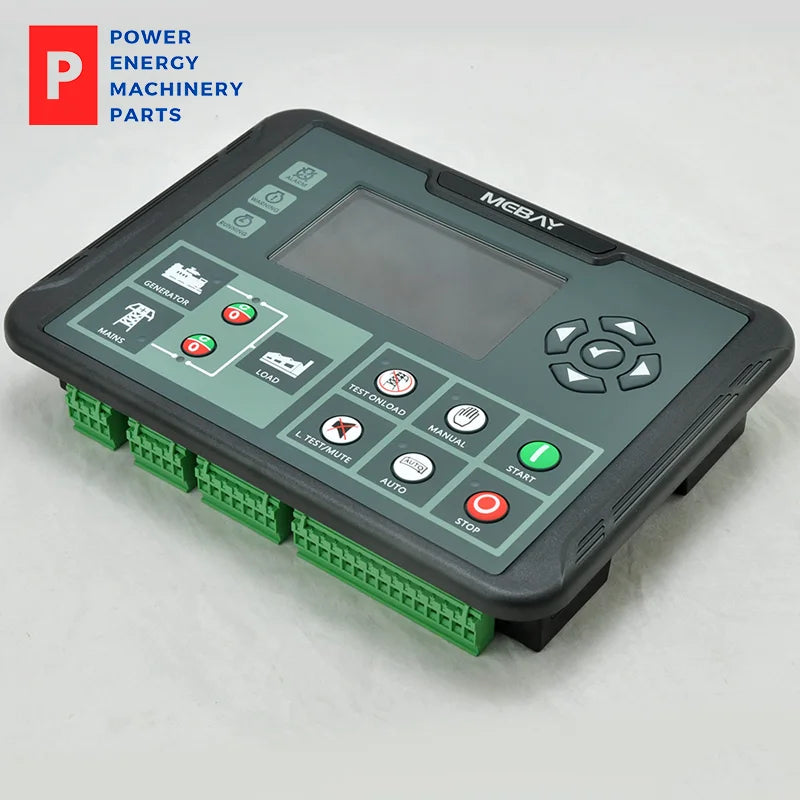

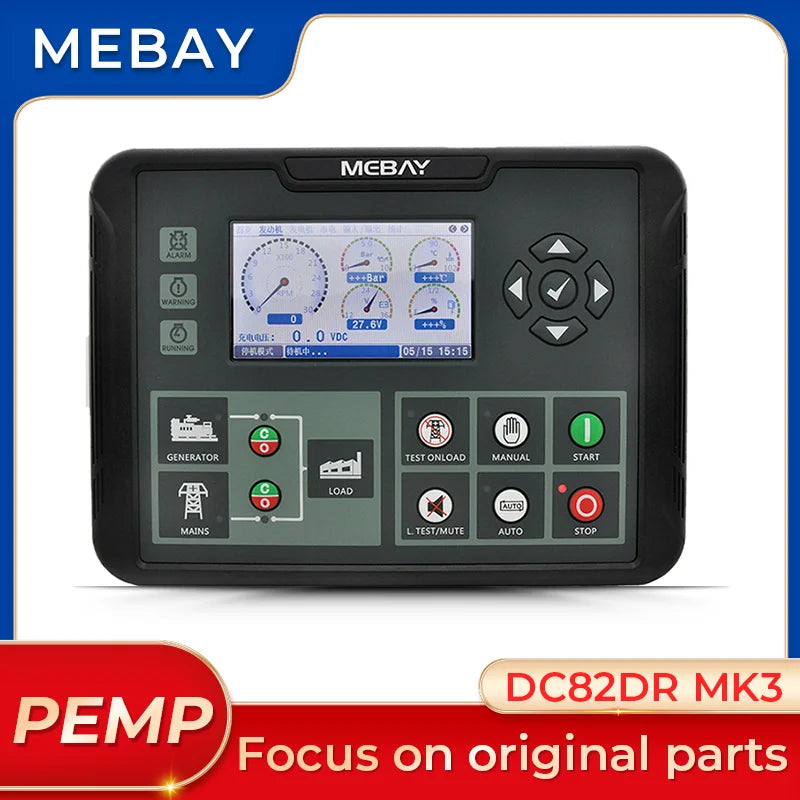

Mebay Original Generator Controller DC82DR MK3 Diesel Gasoline Generator Set Parameter Monitoring Control Board
Generator controller DC82DR MK3,which is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting. DC82DR is with AMF function and RS485 Port..
Personalized setting
☑ Brand new UI design is adapted
☑ Customers' Own logo can be set at the starting page
☑ Different language for your options (English, Spainsh, Turkish, Russian, Chinese)
Main Features:
☑4.3" LCD Colorful Screen
☑3 class maitenance countdown
☑Black Box function
☑Totally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 2 groups as non-contact terminals.☑5 relays can be set as switch value input, and function configurable.☑3 sensor simulation input connectors, various kinds of units can be set.
☑Adapt to 3P4W, 1P2W, 2P3W (120V/240V, 50/60HZ)
☑Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
☑Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
Specifications
project
Parameters
Operating Voltage
DC8V to 36V continuous power supply
Machine power consumption
Standby: 24V: MAX 1W
Operation: 24V: MAX 5W
AC voltage input
One phase two wires 20VAC-276VAC (ph-N)
Two-phase three-wire 20VAC-276VAC (ph-N)
Three-phase four-wire 20VAC-276VAC (ph-N)
Engine speed signal range
150-9000Hz
Maximum cumulative running time
99999.9 hours (minimum storage time 6 minutes)
fuel output
5Amp DC+VE supply voltage output
Motor output
5Amp DC+VE supply voltage output
Configurable relay 1
5Amp DC+VE supply voltage output
Configurable relay 2
5Amp DC+VE supply voltage output
Configurable relay 3
5Amp DC+VE supply voltage output
Excitation control
0.5Amp DC+VE supply voltage output
Switch input
Effective when connected to the negative pole of the battery
working conditions
-20-65℃
storage conditions
-40-85℃
Protection level
IP54: When a waterproof ring is installed between the controller and the control panel.
Dimensions
240mm*172mm
Hole Size
220mm*160mm
weight
1Kg
