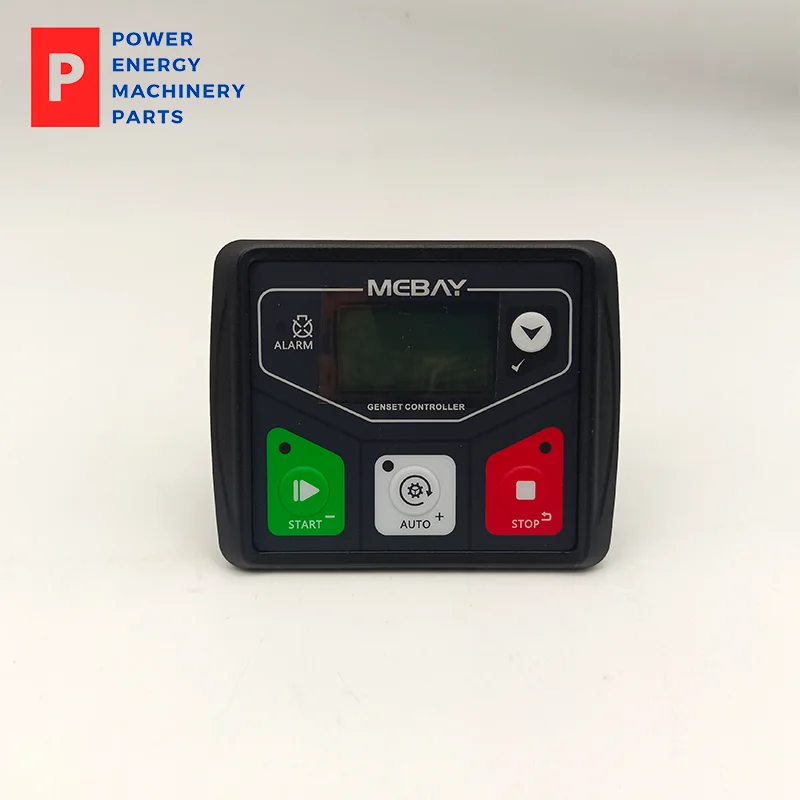

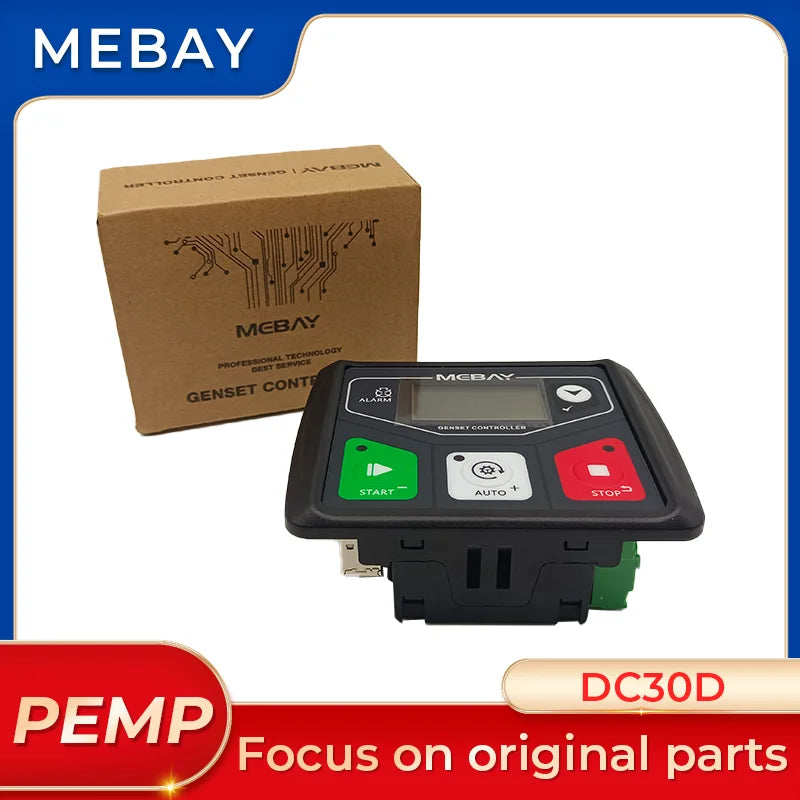

Mebay Controller DC30D Diesel Generator Original Mebay Small Diesel Genset Control Panel electric starter for generator

This controller is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets. The controller has manual control and automatic control functions, and can control the automatic starting and stopping of the generator set through remote start signals, and is suitable for single-machine automation;

This controller uses high-resolution dot matrix LCD to display relevant parameters of the generator set. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly.

The controller has built-in display interfaces in Simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel or through the USB interface using a PC. It can be widely used in various types of generator set automation systems.

Performance and features

Controlled by a 32-bit imported high-performance microcontroller;

High-resolution dot matrix LCD display with Chinese and English switches, and the language can be customized according to customer needs;

The startup interface can be customized to display user LOGO or contact information;

The panel is made of PC material, which is effectively waterproof, oil-proof and UV-proof, has good operating feel and long service life;

Control and protection functions: realize automatic starting/stopping of the generator set, complete fault display and protection functions;

Various combinations of starting conditions (speed, frequency, oil pressure) are available;

Collect and display a variety of engine and generator parameters;

The setting interface adopts a multi-level menu-type classification design, which is convenient and fast;

Equipped with 5 relay outputs, 3 of which are configurable, with more than ten optional functions for each channel;

It has 4 configurable inputs, three of which are analog and switch values and can be reused;

Equipped with a waterproof ring as standard, the protection performance of the panel after installation reaches IP54 level;

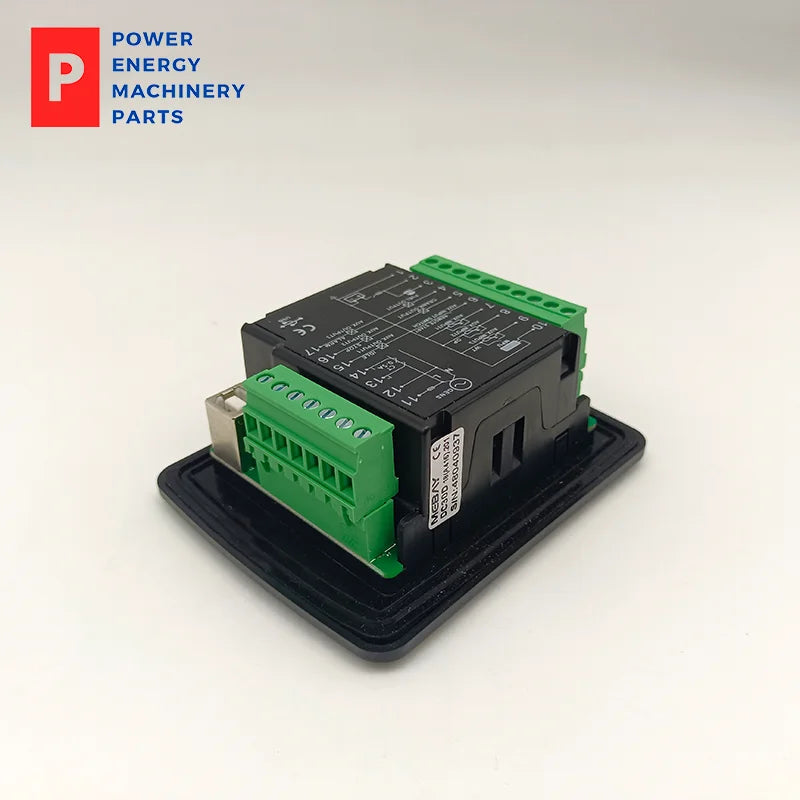

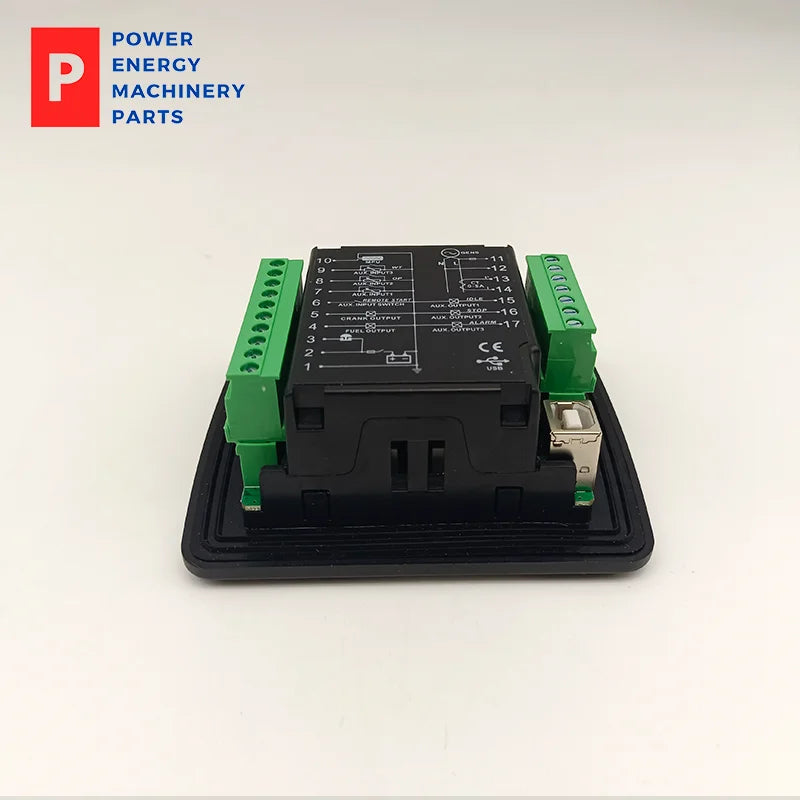

Modular design: All connections are completed through European-style terminal blocks, making it very easy and convenient to assemble, connect, repair and replace the equipment;
