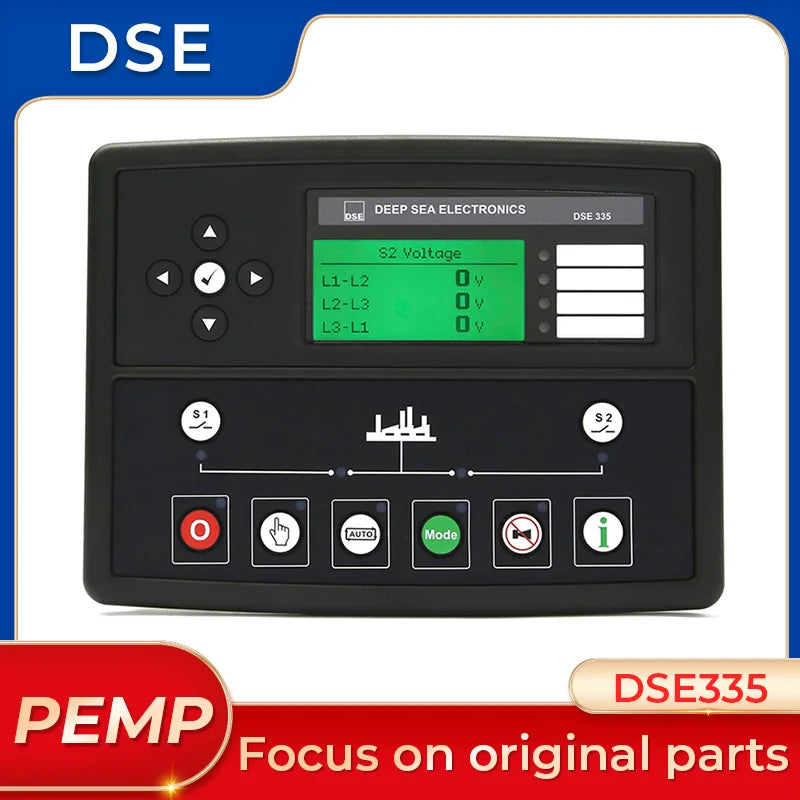

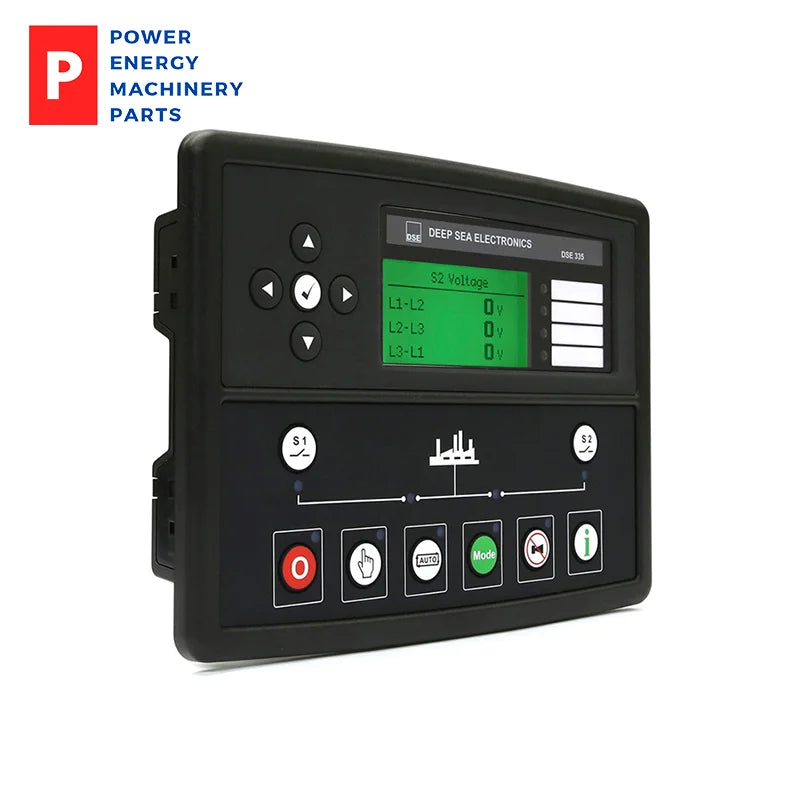

DSE335

Auto Transfer Switch Control Module

The DSE335 Automatic Transfer Switch Control Module has been expertly developed to monitor the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both. The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 7.1” x 1.6”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7” x 6.3”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.9kg
PRODUCT VARIANTS
0335-01 - 335 Auto Transfer Switch Control Module - 12/24 Volt DC Supply
