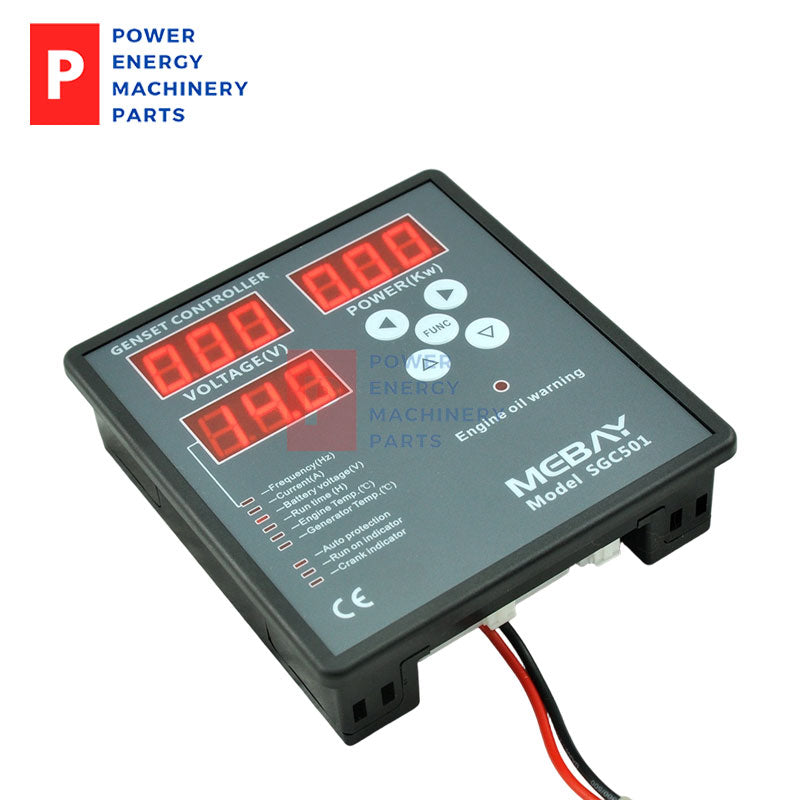

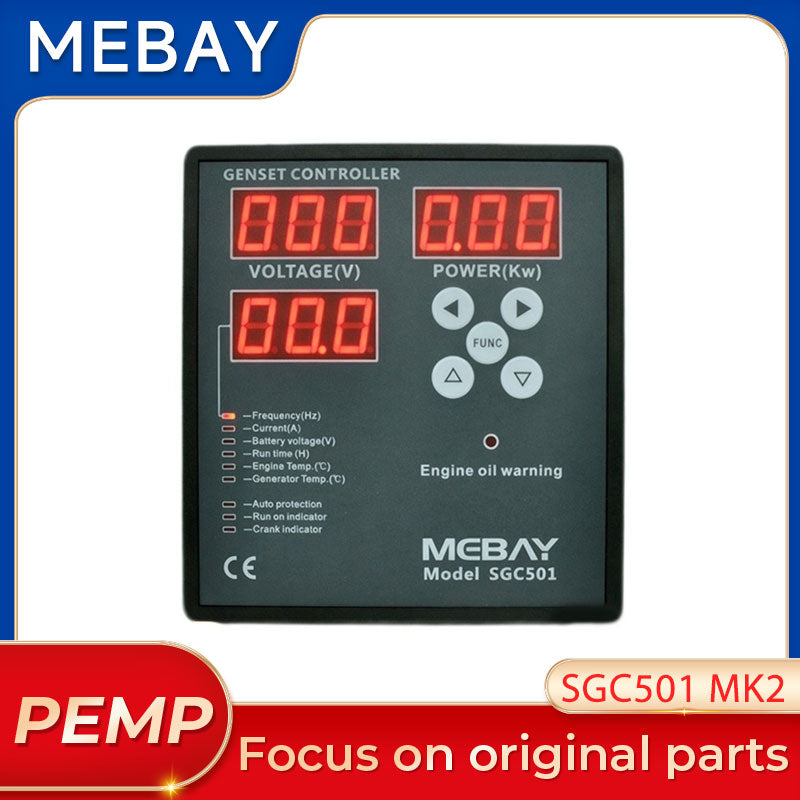

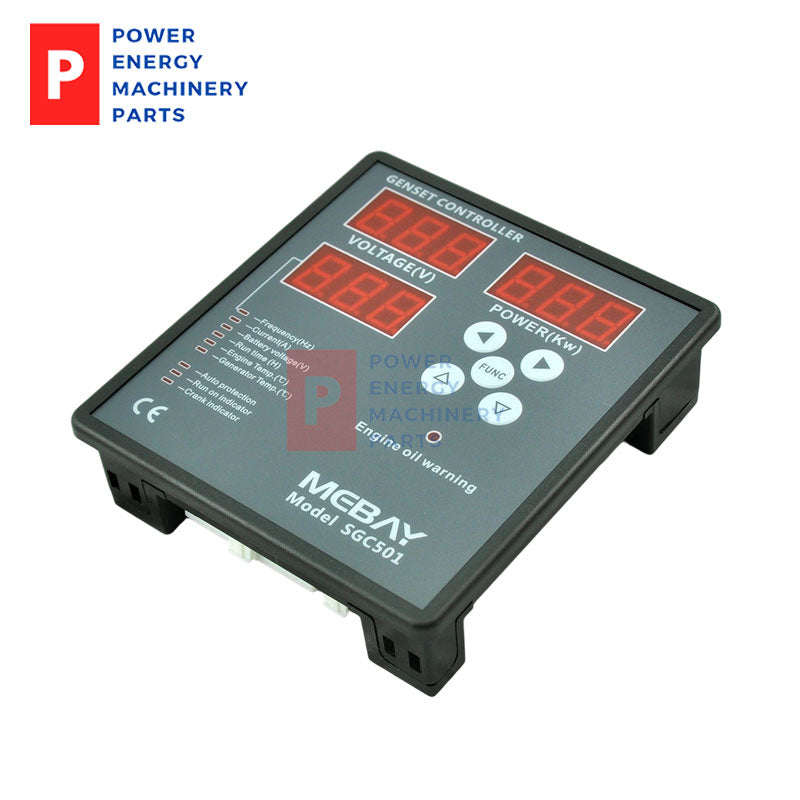

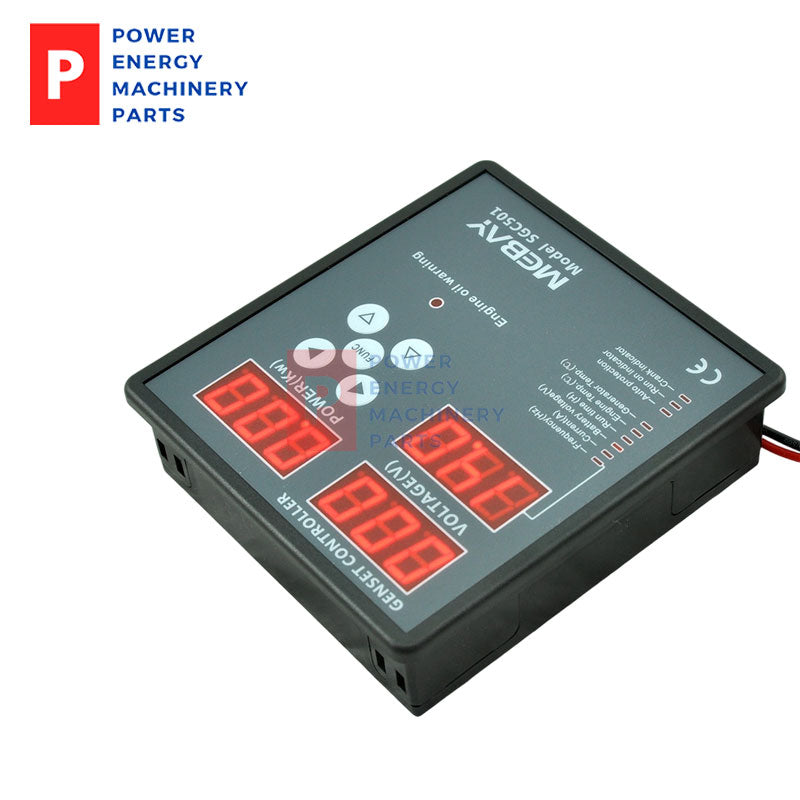

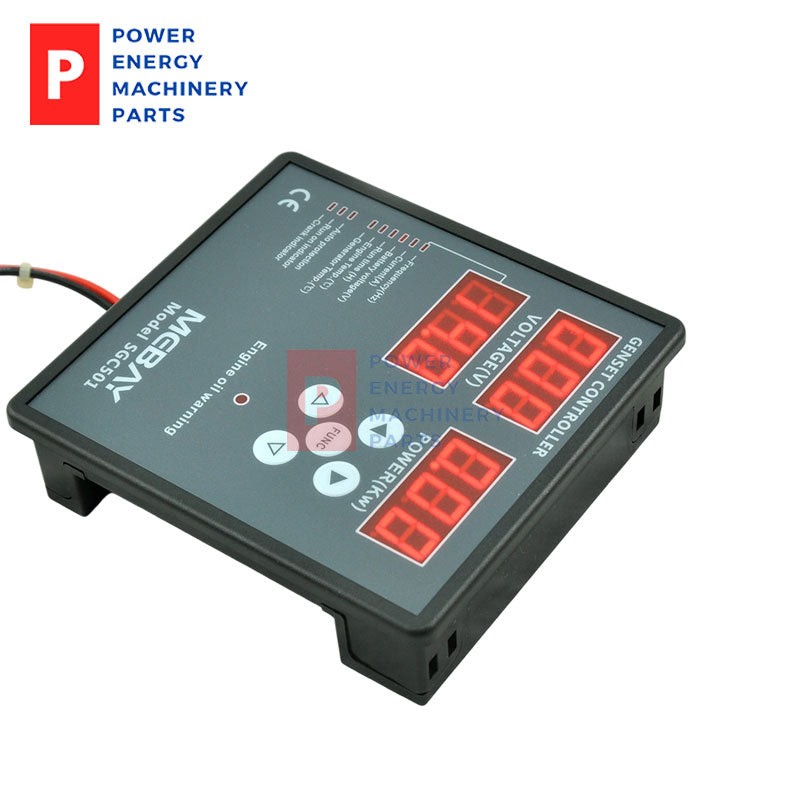

Original Mebay SGC501 MK2 Multi-Function Generator Meter & Auto Start Controller LED Display

Specification

• Product: SGC501 MK2
• Brand: Original Mebay
• Type: All-in-one multifunction meter + basic auto-start controller
• Measured on Display: AC voltage (V), frequency (Hz), active power (kW), running hours (H), battery status
• Supply Voltage: DC 8–18 V continuous (12 V battery system)
• Power Consumption: Standby ≤1 W @12 V; Working ≤2 W @12 V
• Relay Output: Fuel relay 7 A DC (+VE)
• Running Hours: Up to 99,999.9 h logged (min. 6 min resolution)
• Control Functions: Auto/manual start & stop, pre-heat, crank, cool-down
• Protection: Over/under speed, low oil pressure, high engine temp, fail to start, over/under V, charge fail
• Working Temp: ‑25 °C to +70 °C
• Dimensions: 72 × 72 × 118.5 mm
• Replacement Target: Smartgen HGM501, DSE501K class
• Net Weight: 0.25kg
• Warranty: 12 months genuine factory warranty
