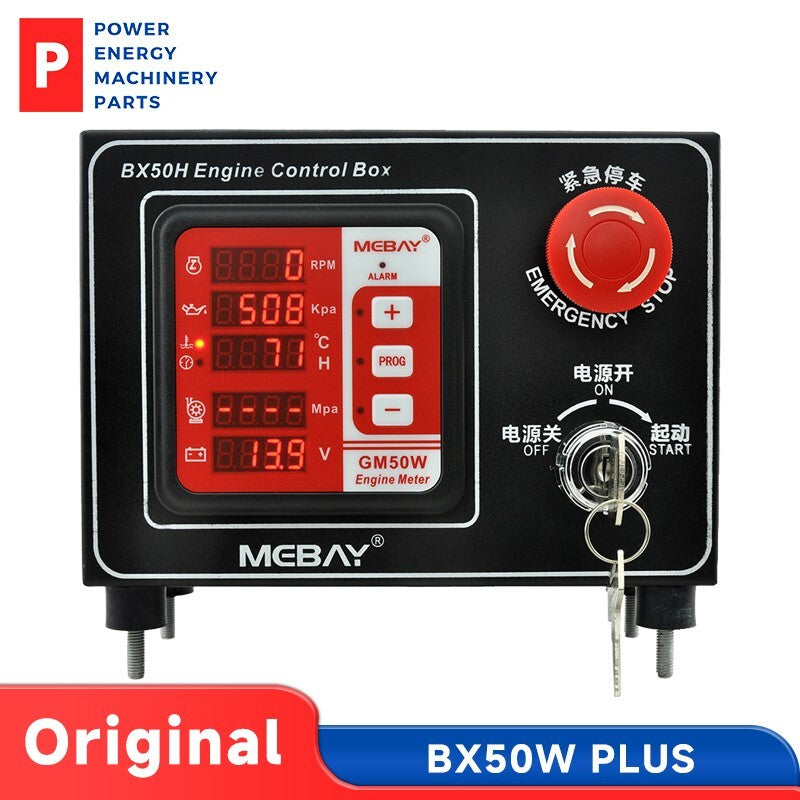

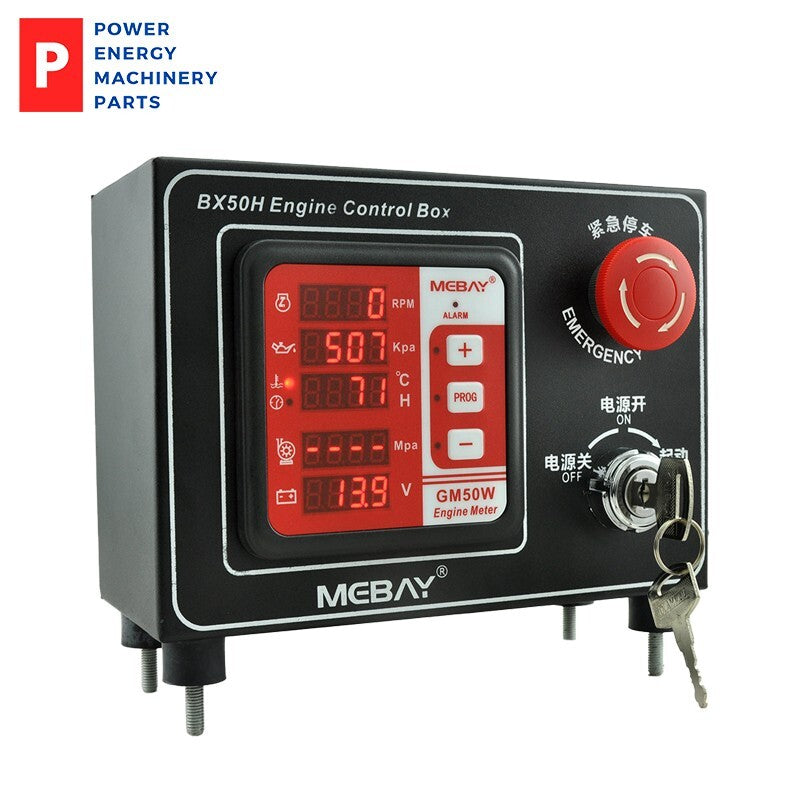

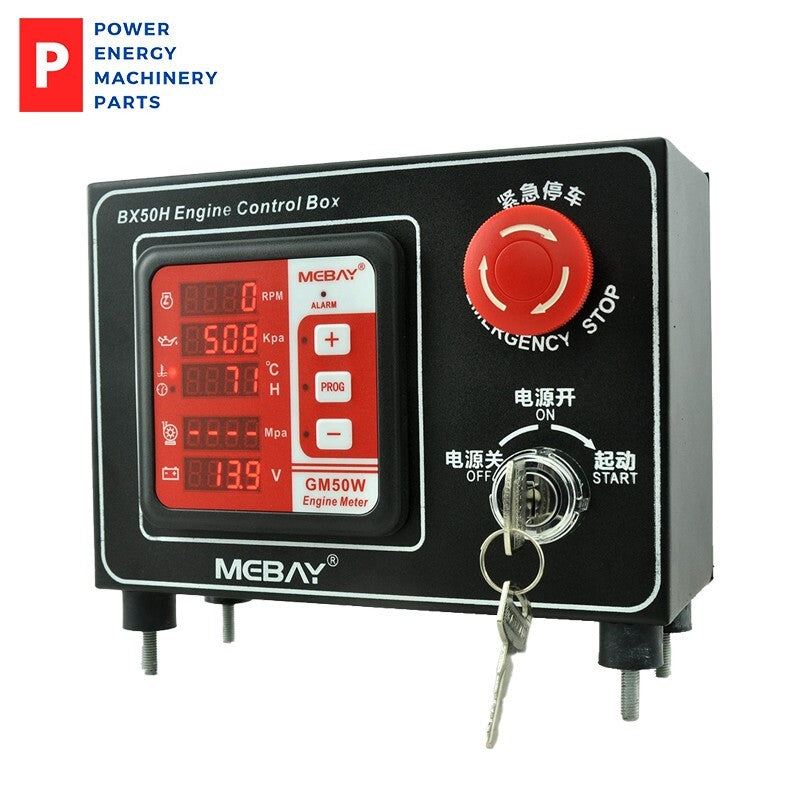

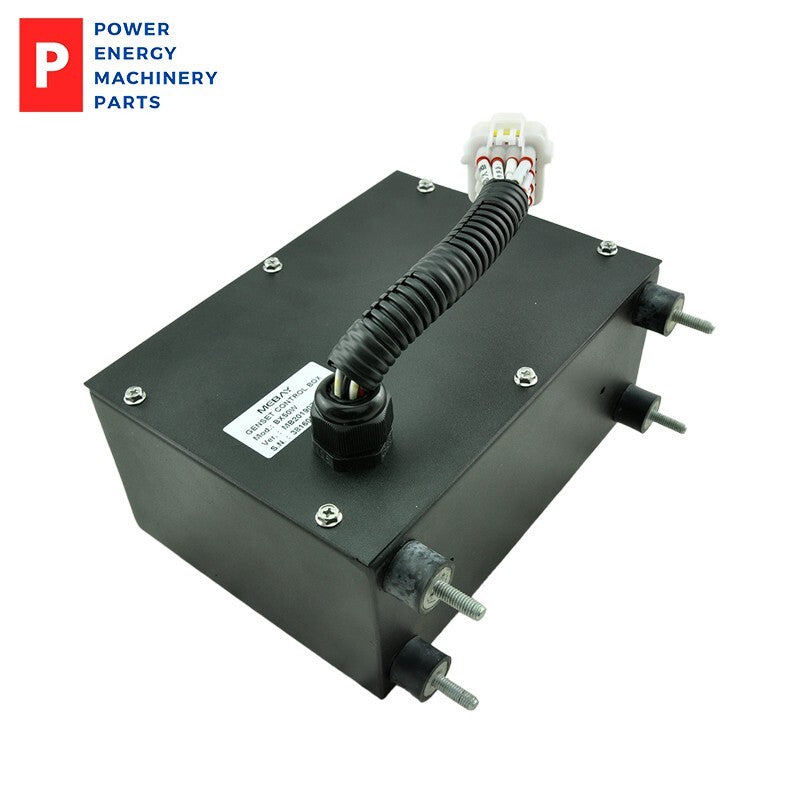

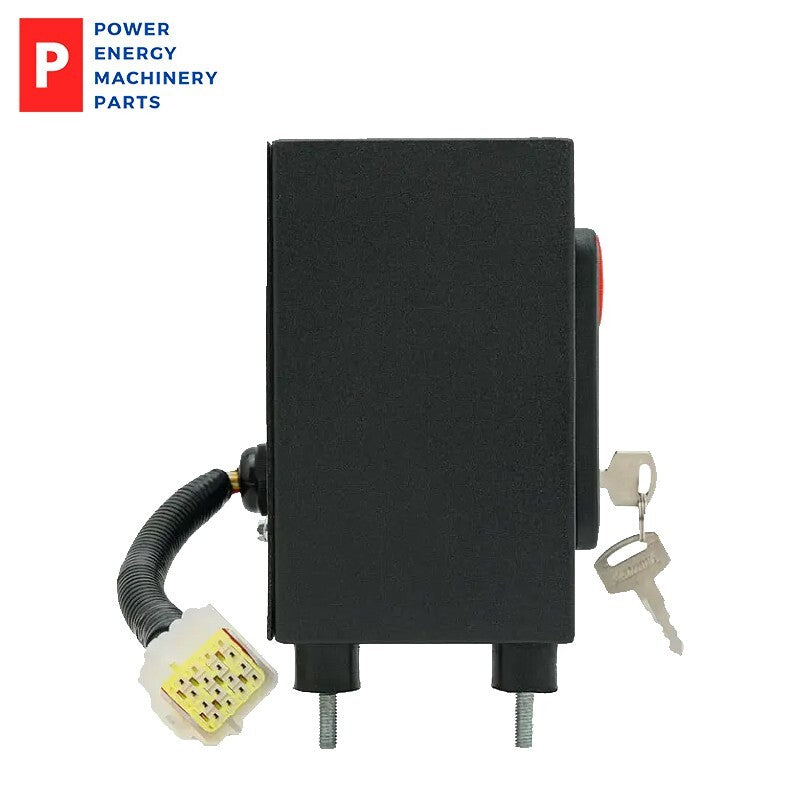

Original Mebay BX50W PLUS Water Pump Control Box Diesel Engine Controller PEMP

Summary

  Engine Control Box BX50W  is one multi-functional meter box which can replace the traditional mechanical meter box.It is mainly used in water pump driven by diesel engine.



Features
 5 Screen LED Digital Display

  Self-defined Curve of Sensor

  System data reset by front face buttons

  The protection value to be set by users



Display

  Engine RPM

  Engine Oil Pressure

  Water Pump Pressure

  Engine Cooling Water Temperature

  Battery Voltage

  Accumulation Time.



Protection

  Over speed

  Low Oil Pressure

  High Oil Temperature

  Low Water Pump Pressure

  High Water Temperature

  Low Battery Voltage

  Emergency stop



Range and Accuracy

  RPM Accuracy：deviation≦±1%（during preset Range）；

  Oil Pressure Accuracy：0-1000Kpa, deviation≦±2.5%；

  Water Temperature Accuracy：20-120℃, deviation≦±2.5%；

  Water Pump Pressure Accuracy：0-10Mpa, deviation≦±2.5%；

  Battery voltage Accuracy：deviation≦±1%（during preset Range）；

  Accumulation Time ：0-999999Hours(min record time: 0.1H)；



Specification

  Power：DC 8～36 V

  Consumption power：MAX：1.5 W

  Sensor Resistance：0～1000 Ohm

  Water Pump Pressure Sensor Resistance:4-20mA

  Frequency range of RPM input signal：Freq 50Hz～10kHz

  Amplitude range of RPM input signal：AC 3～65 V

  Alarm output: Neg- output, Max DC1A；

  Operation Temperature：-25～65℃；

  Storage Temperature：-40～85℃；

  Ingress protection：IP54（the front face after installation）；

  SIZE(W * H * D)：

    Erect installation:150mm * 210mm * 90mm

    Horizontal installatio:210mm * 180mm * 90mm

  Weight: 1.6Kg
