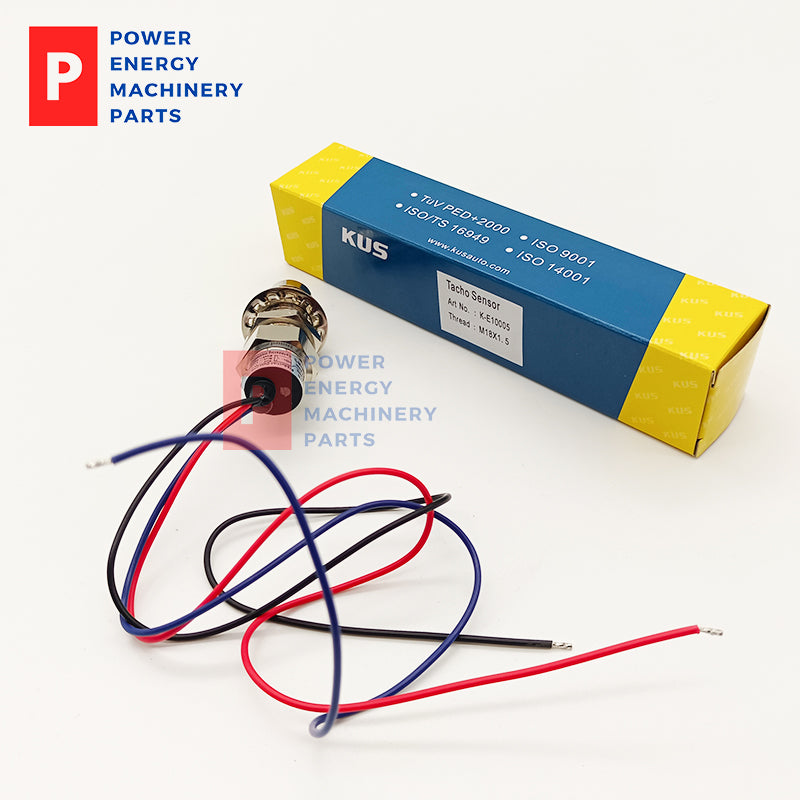

Original KUS KE10005 Three-Wire Holzer Tacho Sensor Thread M18x1.5 Active Pulse RPM Probe

Used for measuring gear rotation speed. Its main advantages include stable signal output, wide range of operational temperature, small size, and simple assembly process.
It covers a wide range of measurements, including zero rotation speed.
The shell appearance, material and thread fitting
Protection rank: IP65

Full Model Marking

• Brand: KUS Original
• Part No.: KE10005
• Sensing Principle: Active 3-Wire Hall Effect Speed Sensor
• Mount Thread: M18×1.5 Solid Stainless Steel Metric Male Thread
• Power Supply: 8V ~ 32V DC Wide Voltage
• Output Signal: Standard Square Wave Pulse, Fixed Amplitude
• Wiring Definition: Red=Power, Black=GND, Blue=Signal Output
• Protection Grade: IP65 fully sealed anti-oil, dust & splash water
• Max Continuous Short-Term Working Temp: -40℃ ~ +85℃
• Detecting Air Gap: 0.5–2mm (distance between probe head and gear tooth surface)
• Warranty: 12 months genuine factory warranty
