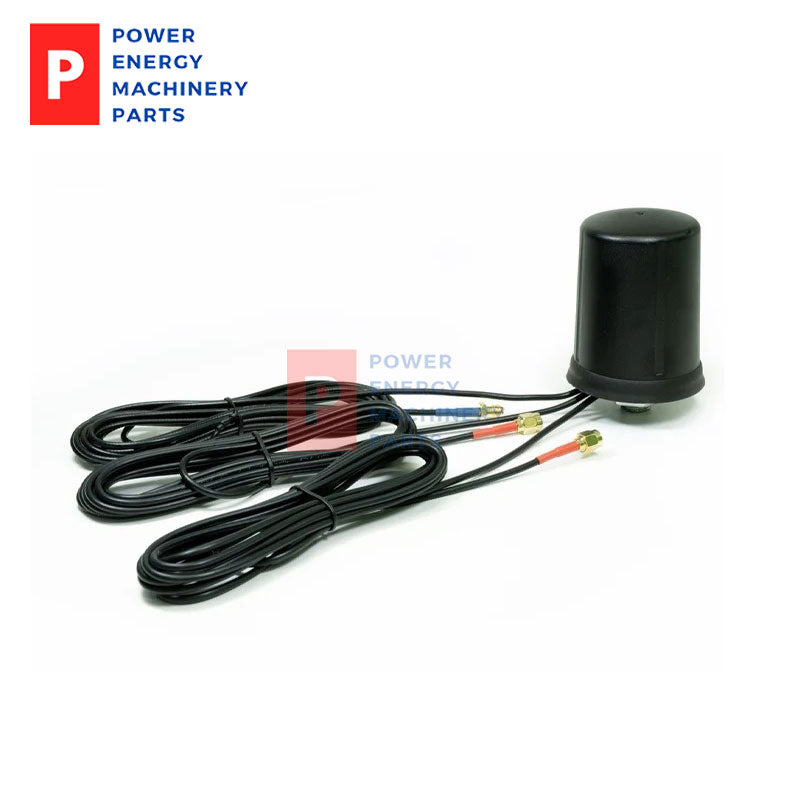

Original DSE 020-1053 Combined 4G LTE Main & Diversity GPS Antenna for DSE890 MKII Gateway

Original DSE 020-1053 Combined 4G LTE Main & Diversity GPS Antenna for DSE890 MKII Gateway

$182.00 USD
$0.00 USD $182.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Original DSE890 Cables 020-1053 Combined 4G LTE (Main & Diversity) / GPS Antenna
Combined 4G LTE (Main & Diversity) / GPS Antenna
The combined 4G LTE (Main & Diversity) / GPS Antenna has been designed for use with the DSE890 MKII. The DSE890 MKII uses the antenna to detect its GPS location and connect to the Internet. The Internet connection allows it to connect to the DSEWebNet® server and/or MQTT broker, depending on user configuration.

Specification

  • Part Number: 020-1053
  • Brand: Original Deep Sea Electronics (DSE)
  • Product Type: Combined 4G LTE Main + Diversity / GPS GLONASS Antenna
  • Compatible Device: DSE890 MKII DSEWebNet Gateway
  • Cable: 3m RG-174 coaxial cable
  • Connector: 2 × LTE SMA(M), 1 × GPS SMA(F)
  • Cellular Bands: 2G / 3G / 4G LTE
  • GNSS: GPS 1575MHz, GLONASS 1602MHz
  • Ingress Protection: IP67, IP69K
  • Impact Rating: IK09
  • Housing Material: UV resistant plastic, Zamak base
  • Color: Black
  • Dimension: 60mm diameter, 69mm height
  • Weight: 300g
  • Mounting: Panel / roof screw mounting for generator control cabinet
  • Application: Diesel genset remote monitoring, DSEWebNet cloud gateway
  • Warranty: 12 months genuine factory warranty
OVERALL DIAMETER
60 mm
HOUSING DEPTH
69 mm
WEIGHT
300 g
PRODUCT VARIANTS
020-1053 - Combined 4G LTE (Main & Diversity) / GPS Antenna
Product Highlights
Key Features
4G/3G/2G/GPS Connectivity
Works across multiple frequencies.
IP67/IP69K/IK09 protection.

Environmental Testing Standards

ELECTRO-MAGNETIC  COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for the Industrial Environment.
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment.

TEMPERATURE
BS EN 60068-2-1
Ab/Ae Cold Test -30°C.
BS EN 60068-2-2
Bb/Be Dry Heat +70°C.
