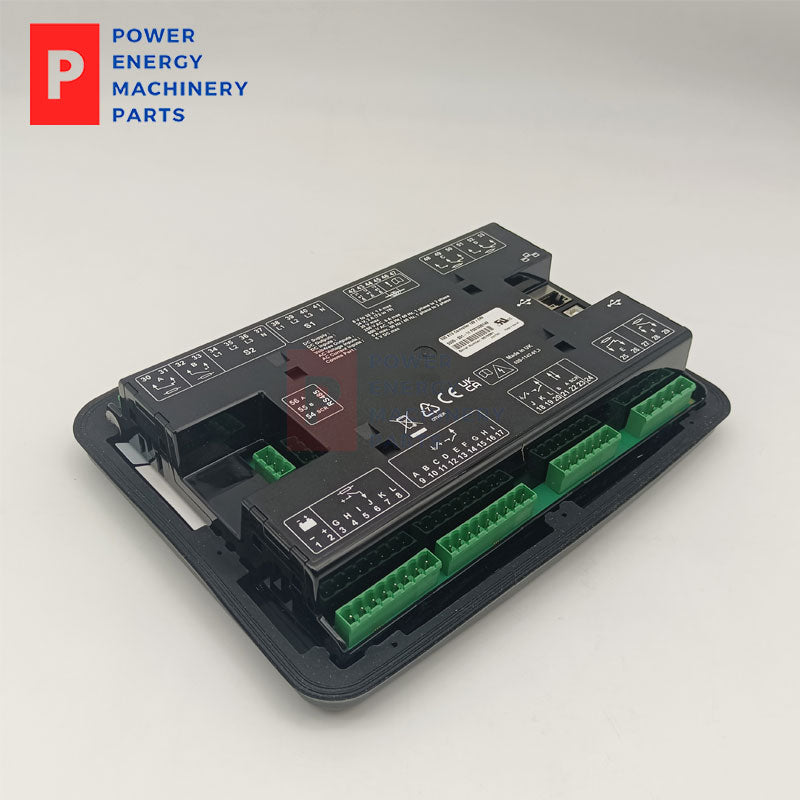

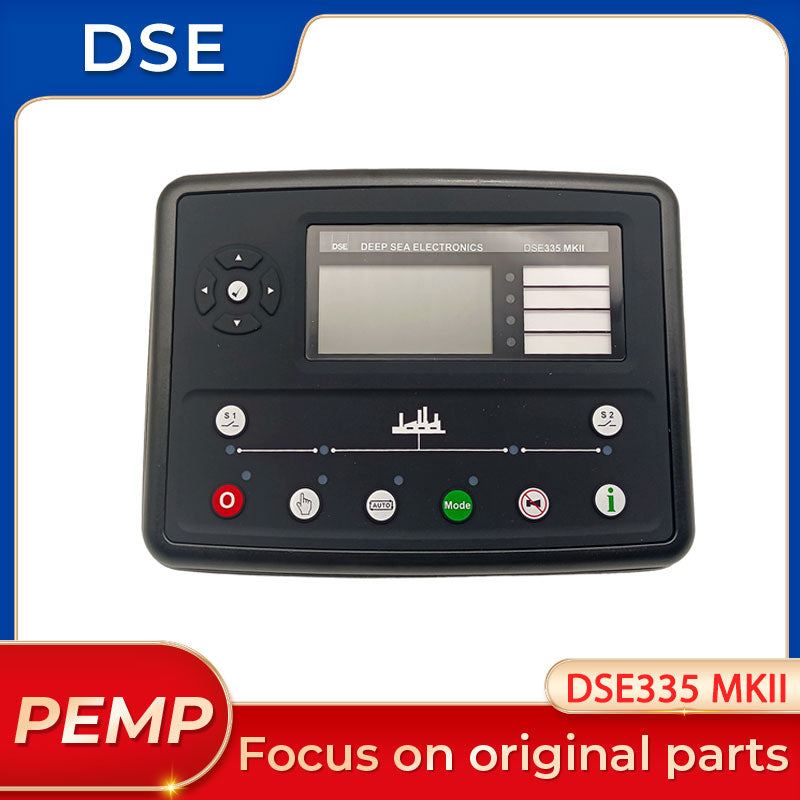

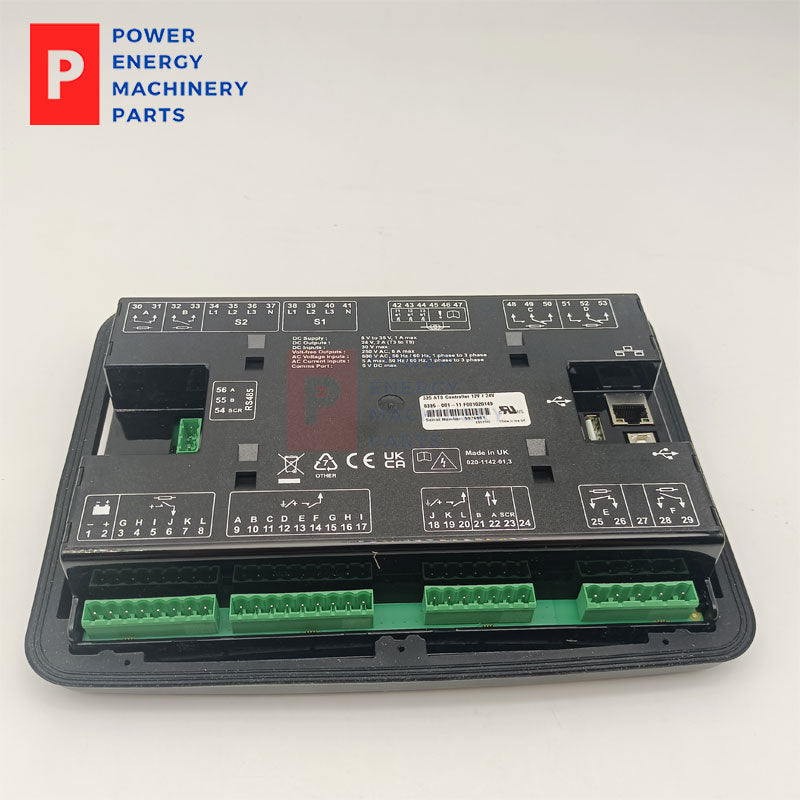

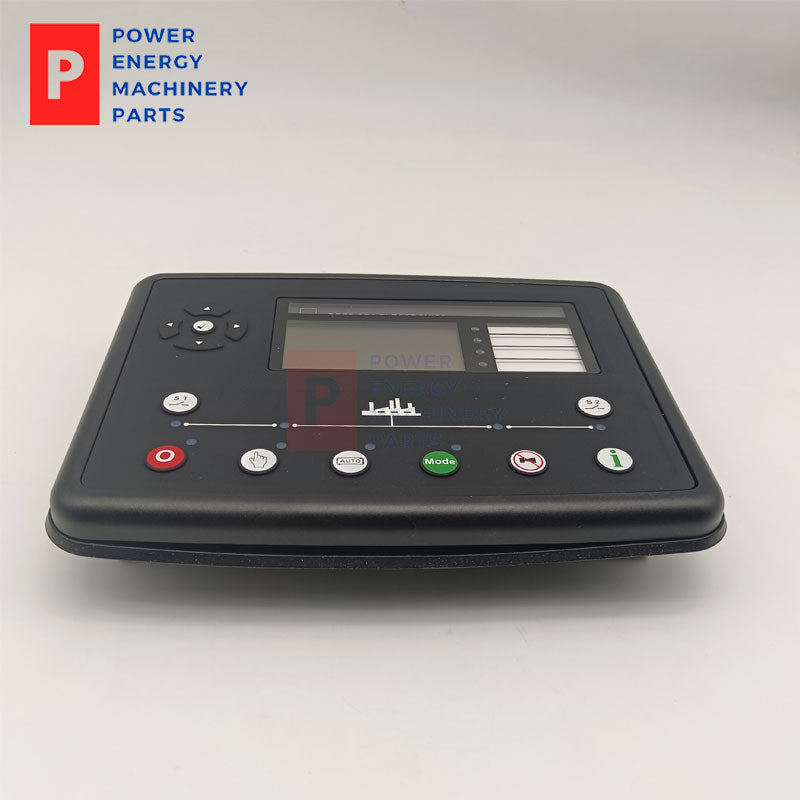

Original DeepSea DSE335 MKII Dual Source ATS Genset Controller Auto Transfer Switch Control Module
Original DeepSea DSE335 MKII Dual Source ATS Genset Controller Auto Transfer Switch Control Module
Precio habitual
$800.00 USD
Precio habitual
$0.00 USD
Precio de oferta
$800.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Original Genuine Deep Sea DSE335 MKII 3-Phase ATS Controller Dual Source Automatic Transfer Switch Control Module
Overview:
The DSE335 MKII is an automatic transfer switch controller designed to monitor the voltage and frequency of incoming AC supplies from two different sources. These are either generator or mains (utility), or a combination of both. The module monitors S1 (source 1) and in the event of a failure issues a start command to S2 (source 2). Various timing sequences are available to prevent nuisance starting on minor supply breaks.
The module is configured using the DSE Configuration Suite PC Software. Selected front panel editing is also available. Configurable inputs and outputs make the DSE335 MKII fully flexible to suit a wide variety of applications.
Overview:
The DSE335 MKII is an automatic transfer switch controller designed to monitor the voltage and frequency of incoming AC supplies from two different sources. These are either generator or mains (utility), or a combination of both. The module monitors S1 (source 1) and in the event of a failure issues a start command to S2 (source 2). Various timing sequences are available to prevent nuisance starting on minor supply breaks.
The module is configured using the DSE Configuration Suite PC Software. Selected front panel editing is also available. Configurable inputs and outputs make the DSE335 MKII fully flexible to suit a wide variety of applications.
Specification
- Model: DSE335 MKII
- Brand: Deep Sea Electronics (DSE)
- Type: DSEAts ATS Automatic Transfer Switch Controller
- Display: Backlit LCD, bi-colour configurable status LEDs
- Power Supply: 8V – 35V DC continuous, reverse polarity protected
- Cranking Dropout: Survive 0V for 50ms
- AC Sensing: 15V ~ 415V AC L-N, Frequency 3.5Hz ~75Hz, 3-phase monitoring
- Core Function: Dual source monitoring, auto transfer, closed transition sync check (<100ms), adjustable anti-nuisance timers, manual mode
- Communication: USB, RS232, RS485 Modbus RTU, DSENet®
- I/O: Multiple configurable digital inputs, volt-free relay outputs + DC auxiliary outputs
- Software: DSE Configuration Suite
- Panel Cut-out: 220 mm x 160 mm (8.66 ” x 6.30 ”)
- Overall Dimension: 250 mm x 189 mm x 50.5 mm / 9.85 ” x 7.43 ” x 1.99 ”
- Max Panel Thickness: 8 mm (0.3”)
- Weight: 0.45kg
- Front Rating: IP65 (with gasket)
- Operating Temp: -30°C ~ +70°C
- Compatible Accessory: DSE160 auxiliary power supply module
- Application: Mains-genset ATS, dual mains switch, dual generator standby power, critical load closed transition transfer
- Warranty: 12 months genuinefactory warranty
