Original Made in the UK DSE7320 MKII Replace DSE7110 MKII DSE7120 MKII LCD Display Screen Generator Controller Panel
DSE7320 MKII
Auto Mains (Utility) Failure Control Module
The DSE 7320 MKII is a powerful, new generation Auto Mains (Utility) Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications.
Featuring a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster operational responses on intensive applications and increased functionality, with data logging facility.

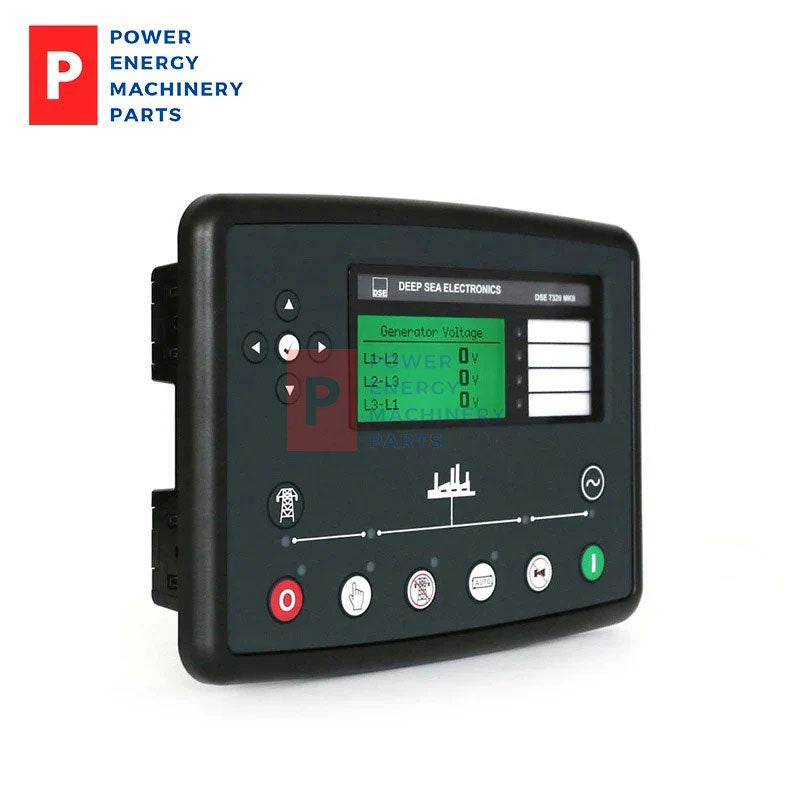

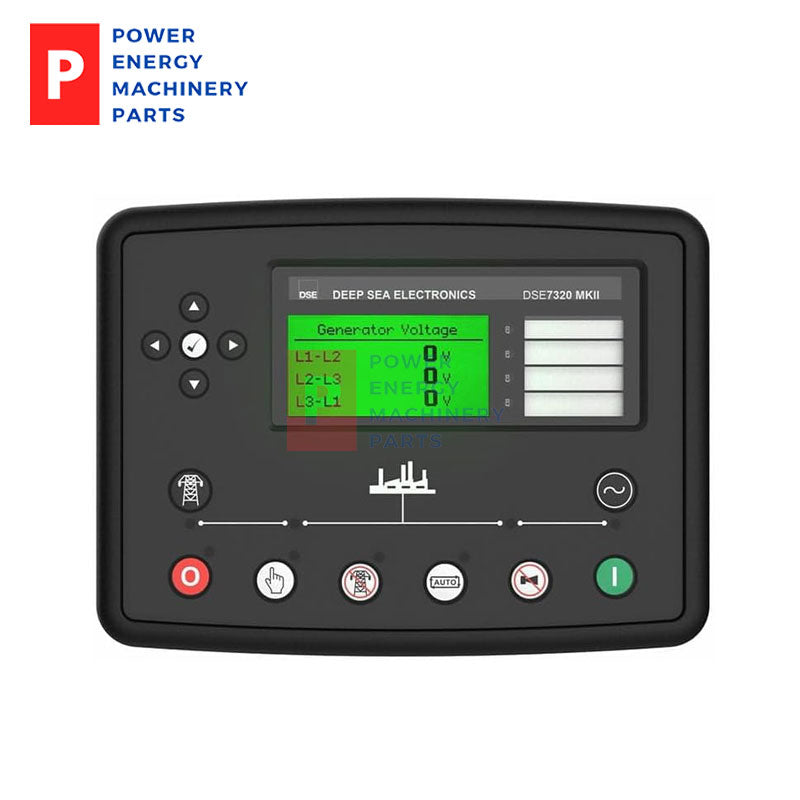

Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED's, remote PC's and via SMS text alerts (with external communication device).
Specification
Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED's, remote PC's and via SMS text alerts (with external communication device).
Specification
- Model: DSE7320 MKII
- Brand: Original Deep Sea Electronics (DSE)
- Type: Auto Mains Failure (AMF) Generator Controller
- Display: 4-line backlit LCD, multi-language
- Power Supply: 8V – 35V DC, reverse polarity protection
- Sensing: 3-phase mains + 3-phase generator voltage/current/power
- Engine Interface: CAN J1939, MPU, alternator frequency
- Communication: USB, RS232, RS485 Modbus, DSENet®
- I/O: 8 digital inputs, 6 configurable analogue/digital inputs, 6 DC outputs, 2 volt-free relay outputs
- Core Function: Auto start, auto load transfer, open/closed sync transition, built-in PLC
- Protection: Overspeed, low oil pressure, high temp, overcurrent, earth fault, reverse power, unbalanced load
- Software: DSE Configuration Suite PC software for programming
- Application: Single diesel / gas standby generator set
- Warranty: 12 months genuine factory warranty
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
PRODUCT VARIANTS
7320-03 - 7320 MKII Auto Mains (Utility) Failure Control Module
